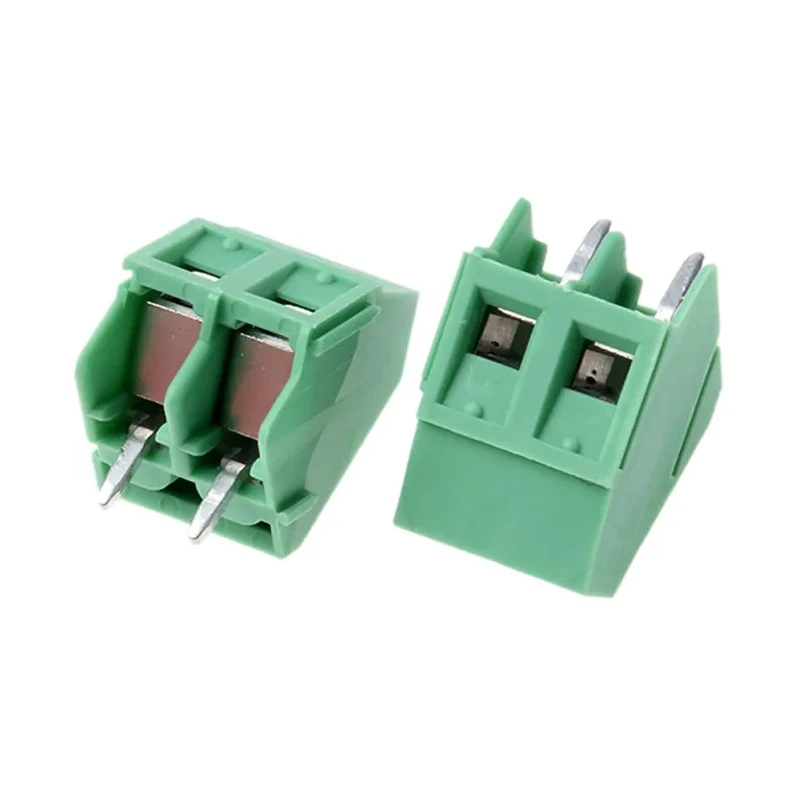

Phoenix Contact Angled PCB Terminal Block 2 Contacts 5.08 mm Pitch Polyamide SMKDSP 1.5/2-5.08 1733570
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Orientation | Angled |
| Length | 13.4 mm |
| Model | 1733570 |
| Mounting Type | Through-hole |
| Housing Material | Polyamide |
| Hole Diameter | 1.3 mm |
| Series | SMKDSP 1.5/ 2-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 2 |
Key Features
- Designed with an angled configuration for compact PCB layouts.
- Accommodates two contacts with a 5.08 mm pitch for reliable circuit connections.
- Polyamide housing provides robust mechanical and electrical insulation.
- Supports wire sizes from 30 to 14 AWG for versatility in applications.
- Features a through-hole mounting type for stable board installation.
- Tin solder pins ensure strong and durable electrical joints.
- Suitable for voltages up to 630 V and a current rating of 22 A.
- UL94 V-0 rated for high inflammability resistance and industrial safety.
Product Description
Phoenix Contact 1733570 is an angled PCB terminal block designed for demanding electronic and industrial circuit board applications. This terminal block is a member of the SMKDSP 1.5/2-5.08 series and incorporates two contacts with a 5.08 mm pitch. It is engineered to facilitate reliable and efficient wiring, power transmission, and signal connections on printed circuit boards.
The angled configuration allows for multiple terminal rows to be placed behind one another without increasing the overall assembly height, making it ideal for compact PCB installations. Its polyamide housing offers excellent electrical insulation and mechanical durability, ensuring safe operation under various environmental conditions.
This block is suitable for voltages up to 630 V and can handle a current rating of 22 A, providing versatility for power and signal applications. Wire termination is made fast and efficient with a solder-type entry, and the block supports wire sizes from 30 AWG up to 14 AWG, covering a broad range of industrial, laboratory, and commercial circuit requirements.
Mounting is achieved by through-hole installation, allowing the terminal block to be securely seated on the circuit board. Tin-plated solder pins ensure corrosion-resistant and strong electrical connections, vital for long-term operational stability.
Safety and compliance are underscored by UL E60425 fire safety certification, with polyamide housing achieving an UL94 V-0 inflammability rating, signifying that burning ceases within 10 seconds for added industrial safety assurance. The component is designed according to rigorous Phoenix Contact standards and has been tested for quality and durability.
Angled terminal block design for space-saving PCB layouts. Accommodates two contacts with a standard 5.08 mm pitch. Housing material is polyamide, offering robust protection. Supports wire sizes from 30 to 14 AWG for flexibility.
Through-hole mounting with tin solder pin surface. Rated for 630 V and 22 A, suitable for signal and power circuits. UL94 V-0 fire safety and tested to industrial standards.
This terminal block is widely used in industrial controls, automation, data acquisition, instrumentation, and electronics manufacturing, where compact, reliable wiring is essential. Typical applications include board-to-board connections, programming hardware, and prototyping. For more Phoenix Contact products in PCB Terminal Blocks, explore the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a pitch of 5.08 mm, which accommodates two contacts for reliable circuit connections.
It is rated for a maximum voltage of 630 V and a current rating of 22 A, making it suitable for various power and signal applications.
This model supports wire sizes ranging from 30 AWG to 14 AWG, providing versatility for different applications.
The terminal block features a through-hole mounting type, allowing for stable installation on printed circuit boards.
The housing of this terminal block is made from polyamide, which offers robust mechanical and electrical insulation.
The length of the terminal block is 13.4 mm, making it suitable for compact PCB layouts.
This terminal block is designed with an angled orientation, which allows for efficient use of space on circuit boards.
The hole diameter for mounting this terminal block is 1.3 mm, facilitating secure attachment to the PCB.
This model is part of the SMKDSP 1.5/2-5.08 series, which is designed for demanding electronic and industrial applications.
It is UL E60425 certified for fire safety and has an UL94 V-0 rating for high inflammability resistance.
This terminal block accommodates two contacts, allowing for reliable circuit connections in various applications.
It is widely used in industrial controls, automation, data acquisition, instrumentation, and electronics manufacturing.
