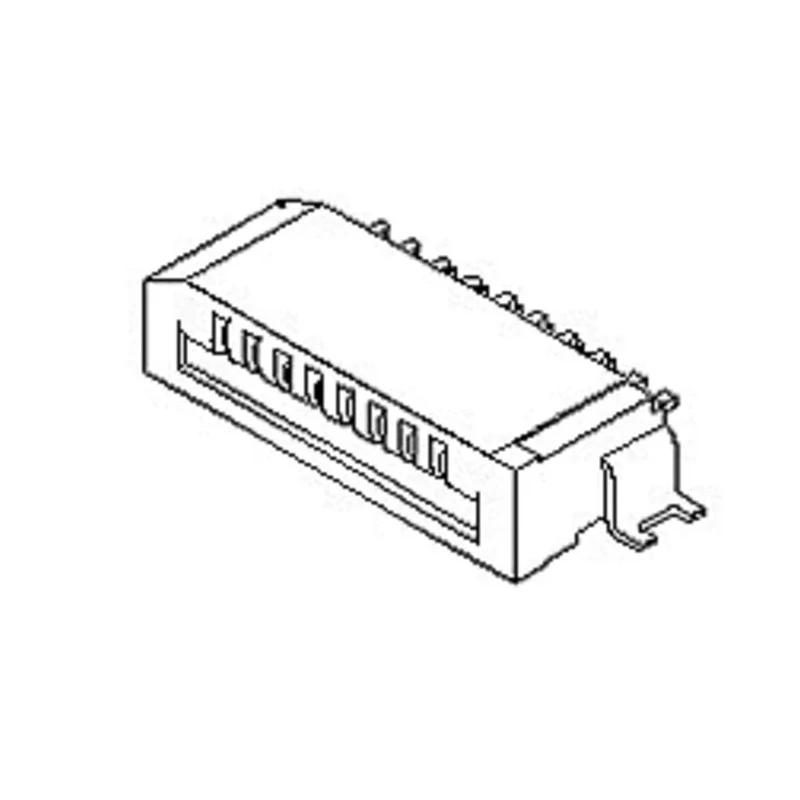

Molex 52793-0470 1 mm Pitch 4 Way Right Angle Female FPC Connector, Non-ZIF, 50V, 500mA
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | 52793 |
| Termination Type | Non-ZIF |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
| Contact Position | Top |
Key Features
- Features a 1 mm pitch suitable for high-density circuit assembly.
- Provides 4 contacts in a right angle surface mount configuration.
- Non-ZIF termination for secure and straightforward FPC insertion.
- Supports current up to 500 mA and voltage rating of 50 V.
- Female top contact connector with a locking mechanism for stable connections.
- Constructed with a phosphor bronze contact material for excellent conductivity and durability.
- Housing material is polyphenylene sulphide, offering excellent heat and chemical resistance.
- Suitable for operating temperatures ranging from -20°C to 85°C.
Product Description
The Molex 52793-0470 is a high-performance, 1 mm pitch, 4 way right angle female FPC (Flexible Printed Circuit) connector. It is engineered to provide reliable surface mount connections in space-limited applications, ensuring stable electrical connectivity in modern electronic assemblies.
This connector stands out with its 1 mm pitch, enabling high-density integration on printed circuit boards. Its right angle orientation allows for efficient board layout, while the female contact structure with top contact position is optimal for FPC interfacing.
Equipped with non-ZIF (Zero Insertion Force) contact and insertion systems, the connector ensures both easy assembly and secure contact reliability over the connector's lifespan. The built-in locking mechanism further secures the FPC and prevents unwanted disconnections in environments prone to vibration and movement.
The Molex 52793-0470 supports a maximum current of 500 mA and voltage rating of up to 50 V, making it suitable for signal and low-power electronic applications. The contacts are constructed from high-conductivity phosphor bronze, providing durability and efficient signal transmission. The housing material is polyphenylene sulphide, ensuring strong resistance against heat and chemicals under continuous operation.
Designed to operate across a temperature range from -20°C to 85°C, this connector is well-suited for applications in consumer electronics, embedded systems, industrial control panels, and portable devices requiring secure flexible circuit connections. Its single-row, 4-contact configuration and easy-on FFC/FPC design make it a go-to solution for robust SMD interconnections.
In summary, the Molex 52793-0470 delivers a combination of compactness, stability, and quality performance for professional electronic design, prototyping, and production environments.
Explore more PCB Connectors, FPC connectors, and Molex solutions on EnvMart for advanced electronic and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 52793-0470 connector has a voltage rating of 50V.
This model supports a maximum current of 500mA.
It features a non-ZIF (Zero Insertion Force) termination type, allowing for secure and straightforward FPC insertion.
The contacts are made of phosphor bronze for excellent conductivity, while the housing is constructed from polyphenylene sulphide, providing heat and chemical resistance.
The pitch size of this connector is 1 mm, suitable for high-density circuit assembly.
It operates within a temperature range of -20°C to 85°C.
This connector has a total of 4 contacts.
The connector is designed with a right angle orientation, which is beneficial for efficient board layout.
This model features a non-ZIF insertion force type, allowing for easy assembly.
It is suitable for applications in consumer electronics, embedded systems, industrial control panels, and portable devices requiring secure flexible circuit connections.
The contact position for this connector is top contact, which is optimal for FPC interfacing.
The Molex 52793-0470 uses surface mount type for installation.
