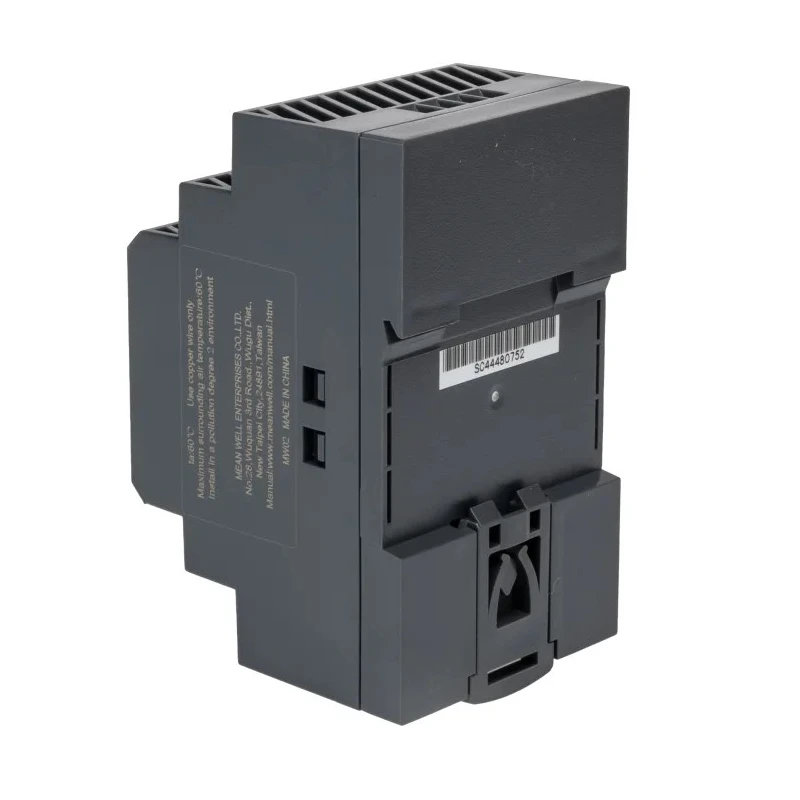

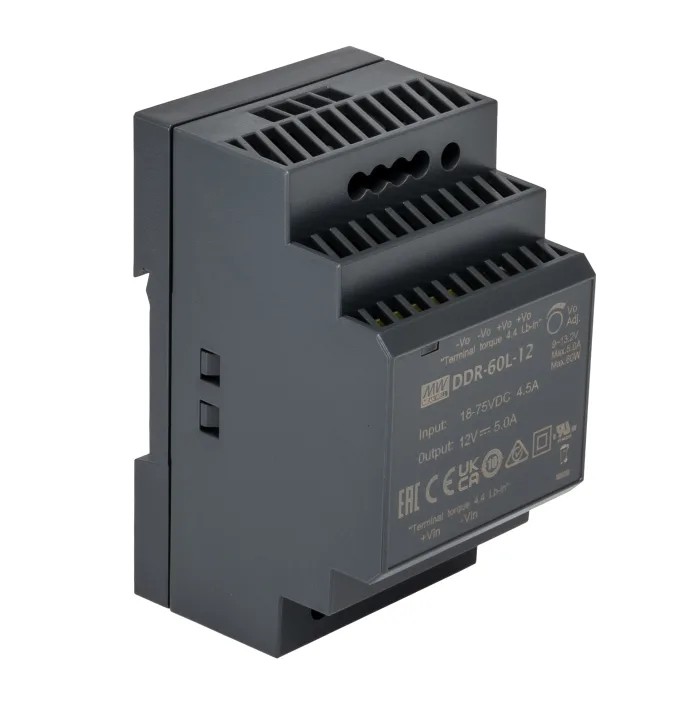

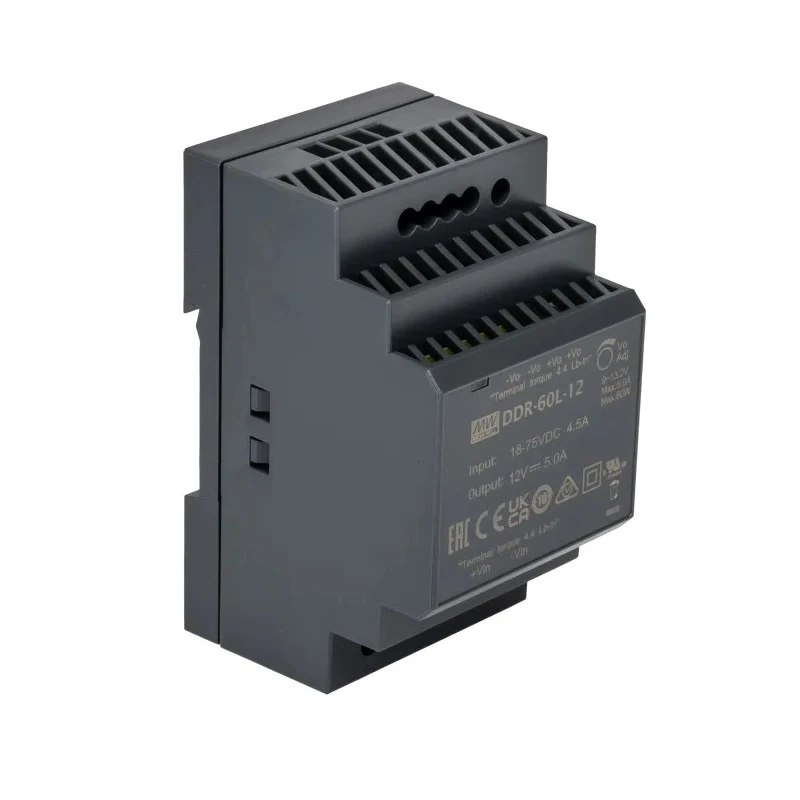

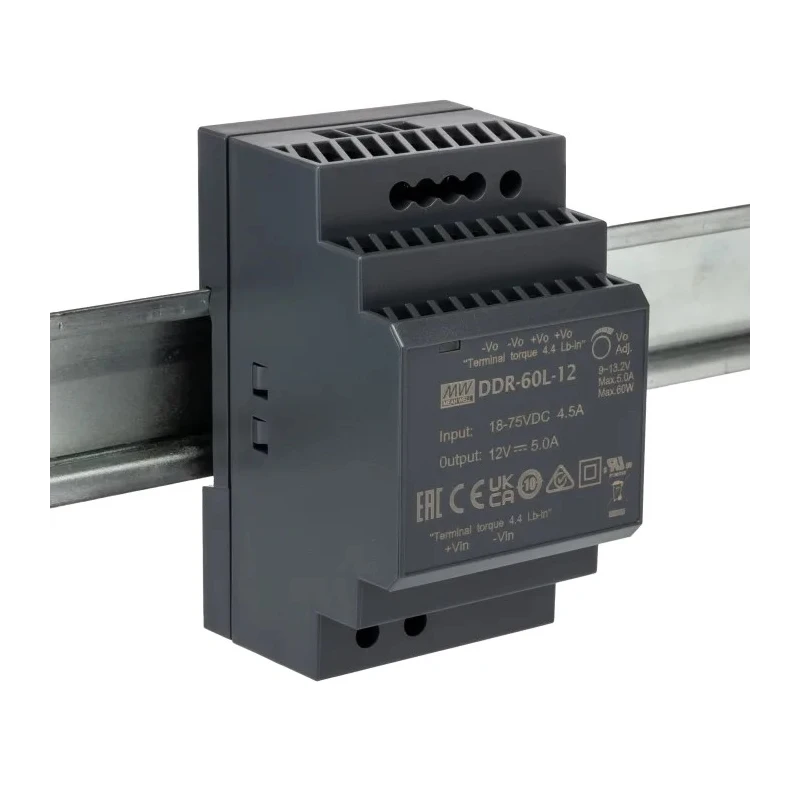

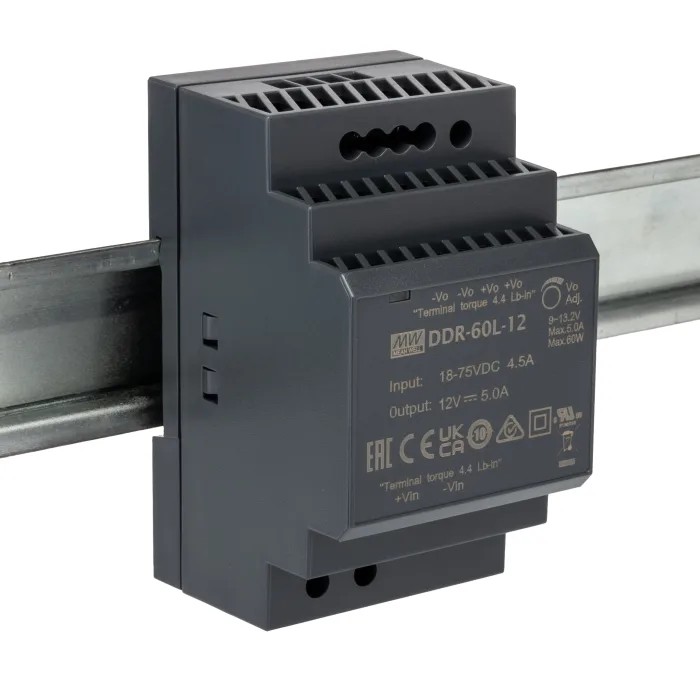

MEAN WELL DDR-60L-12 DC/DC Converter, 24V Output, 18 - 75V DC Input, DIN Rail, 60W, 12A, Adjustable Output, 85°C Max, 6-Pin
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL DDR-60 DC/DC Converter, 24V/, 75V dc Inp |
| Brand | MEAN WELL |
| Efficiency | 92% |
| Model | DDR-60L-12 |
| Depth | 54.5mm |
| Gross Weight | 216g |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Series | DDR-60 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 611kH |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 75V dc |
| Protections | Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection |
| Minimum Input Voltage | 18V dc |
| Number of Pins | 6 |
| Output Voltage 1 | 24V |
| Output Current 1 | 12A |
| Output Voltage Adjustment Range | 21.6 to 28 V |
Key Features
- Single output supplying 24V DC at a maximum current of 12A.
- DIN rail mountable, ultra-slim form factor (52.5mm width).
- Adjustable DC output voltage range from 21.6V to 28V.
- High efficiency rated at 92%, suitable for industrial control and automation.
- Operates reliably from -40°C to 85°C with free air convection cooling.
- Reinforced isolation with 4kV DC I/O isolation for enhanced safety.
- Noise ripple limited to 100mV peak-to-peak.
- Complies with EN61000-4-8, UL508, EN55024, IEC 62368-1 and other industrial standards.
Product Description
The MEAN WELL DDR-60L-12 is an industrial-grade DC/DC converter designed for DIN rail installation, offering robust and reliable power conversion for demanding automation, control, and telecommunication applications. With an ultra-wide input voltage range from 18V to 75V DC, the DDR-60L-12 ensures compatibility with various DC power sources, making it ideal for environments requiring flexible voltage handling.
Providing a single, stable 24V DC output at up to 12A, this converter supports loads up to 60W. The output voltage is adjustable within a range of 21.6V to 28V, allowing users to tune for specific application requirements. Its slim 52.5mm width saves valuable panel space and enables mounting on standard DIN rail TS-35/7.5 or TS-35/15.
Designed for longevity, the DDR-60L-12 has an MTBF of 611,000 hours and operates reliably in extreme temperature conditions, from -40°C up to 85°C, with cooling provided by free air convection. Protections include short circuit, overload, over voltage, input reverse polarity, and input under voltage, safeguarding both converter and connected devices.
The unit meets rigorous international standards such as EN61000-4-8, UL508, and IEC 62368-1, ensuring electromagnetic compatibility and operational safety. With reinforced isolation rated at 4kV DC between input and output and low ripple (100mV peak-to-peak), it delivers clean, dependable power for sensitive electronics.
Typical use cases include industrial control systems, semiconductor fabrication equipment, factory automation, electro-mechanical devices, wireless networks, and telecom/datacom systems. Suited for both new installations and retrofits, it enables stable DC power conversion wherever robust performance is needed.
Explore the complete MEAN WELL industrial DC converter portfolio for a wide range of DIN rail and panel-mount solutions in Electronics & Electricals > Converters > DC-DC Converter at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts an input voltage range from 18V to 75V DC.
The maximum output power of the DDR-60L-12 is 60W.
The output voltage can be adjusted from 21.6V to 28V.
It can deliver a maximum output current of 12A.
This unit has a width of 52.5mm, depth of 54.5mm, and a gross weight of 216g.
It is designed for DIN rail mounting, compatible with standard TS-35/7.5 or TS-35/15 rails.
It has an efficiency rating of 92%.
The operating temperature range is from -40°C to 85°C.
The noise ripple is limited to 100mV peak-to-peak.
It is suitable for industrial control systems, factory automation, and telecommunications applications.
