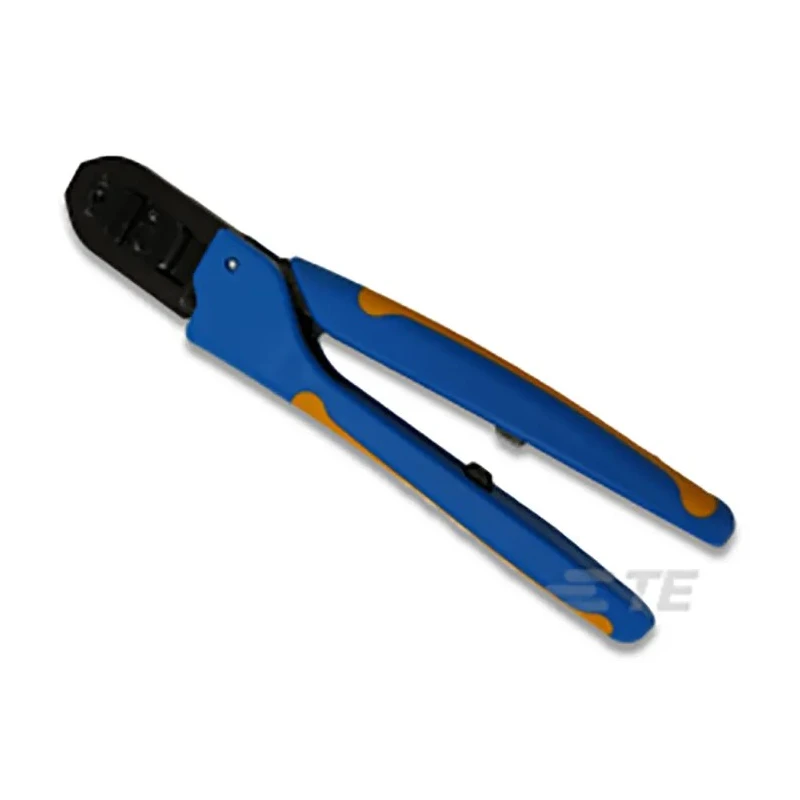

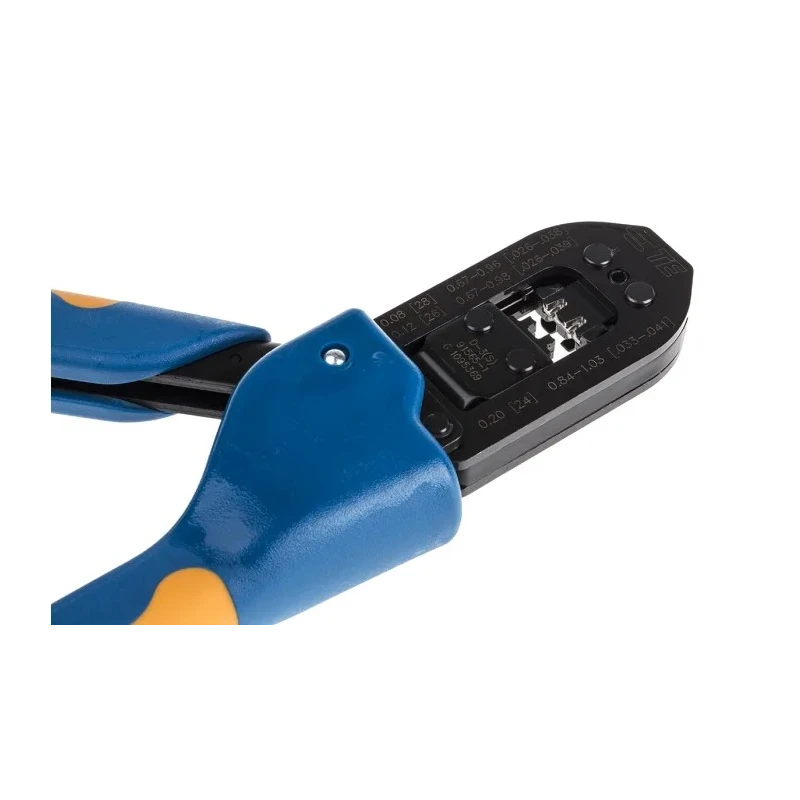

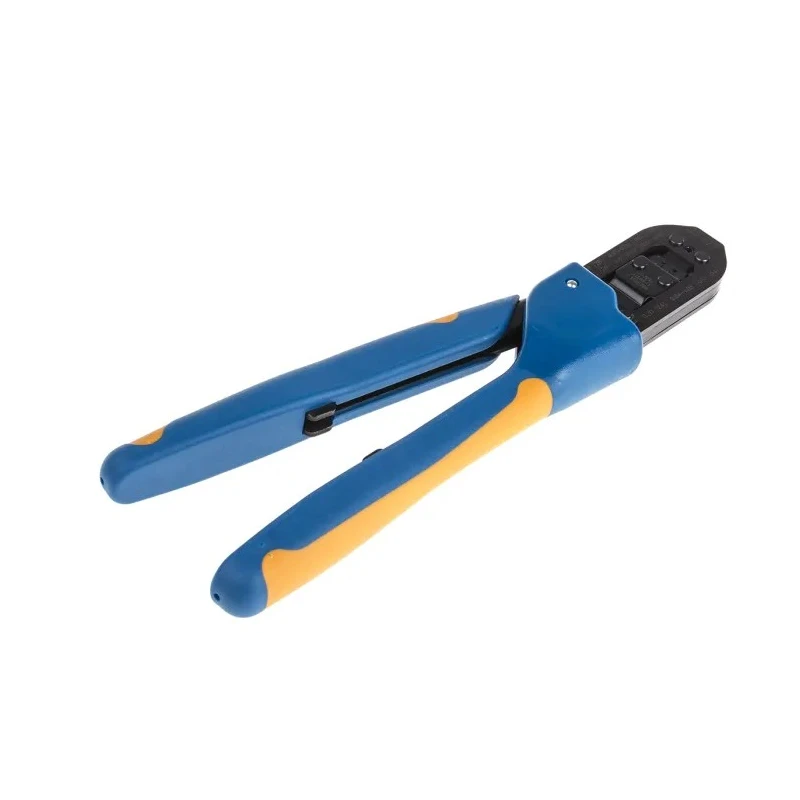

TE Connectivity CERTI-CRIMP II Crimp Tool Straight Action for DYNAMIC D-3000 Connector Contacts 296.93mm 91565-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Model | 91565-1 |
| Handle Type | Plain |
| Overall Length | 296.93mm |
| Series | CERTI-CRIMP II |
| Sub Type | Straight Action |
| For Use With | DYNAMIC D-3000 Connector Contacts |
| Standards/Approvals | RoHS, EU |
| Minimum Wire Size mm² | 0.08 |
| Maximum Wire Size mm² | 0.24 |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
Key Features
- Provides reliable compression for DYNAMIC D-3000 contacts.
- Manually operated tool with a fixed die and locator/insulation stop for accurate operation.
- Accommodates wire sizes from 24 AWG down to 28 AWG (0.24 mm² to 0.08 mm²).
- Plain handle grip ensures ergonomic use with secure handling.
- Constructed with high-quality materials for industrial durability.
- Features a ratchet mechanism to ensure proper crimping force.
- Overall length of 296.93 mm simplifies cable harnessing in tight spaces.
- Suited for applications in HMI, robotics, automation, and servo drives.
Product Description
TE Connectivity CERTI-CRIMP II Crimp Tool model 91565-1 is a high-performance, manually operated hand tool engineered for straight action crimping of DYNAMIC D-3000 connector contacts. This tool integrates a fixed die (crimper), a movable die (anvil), an insulation stop, and an integrated ratchet mechanism for consistent and repeatable crimp quality. Designed to work with precision, this tool is ideal for constructing reliable cable assemblies for industrial and automation environments.
The CERTI-CRIMP II crimp tool accepts wire sizes from 28 AWG up to 24 AWG (0.08 mm² to 0.24 mm²), covering a broad spectrum of signal and control wiring tasks. Its rugged structure and plain handle type support high-volume shop floor operations, reducing fatigue during repeated crimping cycles. The locator and insulation stop ensure all wires are perfectly positioned within contacts for each termination, minimizing installation errors.
This tool's straightforward straight action makes it particularly suitable for tight space installations, with an overall length of 296.93 mm supporting access in cable harness assemblies. The ratchet ensures that crimping force is precisely controlled, which is essential for both electrical integrity and mechanical retention of the contact. No adjustable ratchet is included, which further simplifies operation for users seeking a highly repeatable tool set-up without the complexity of additional controls.
Certified to RoHS and EU standards, the CERTI-CRIMP II tool demonstrates compliance for use in regulated markets. Industrial use cases include human-machine interface systems (HMI), robotics, production machinery, factory automation computers, motion and drive applications, numeric controller wiring, power distribution cabinets, and elevator/escalator system harnesses.
Flexible deployment of this tool allows engineers, maintenance professionals, and cable assembly technicians to efficiently process DYNAMIC D-3000 contacts in automation panels, field modular assemblies, servo drive connections, and motion control environments. Its ergonomic design, reliable crimp force, and robust build make it a dependable addition to any industrial toolbox.
Explore more hand tools and crimping solutions from TE Connectivity and build your automation infrastructure with high-precision connection tools for industrial, control, and automation environments.
Explore more products in our Crimping Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of this crimp tool is 296.93 mm, making it suitable for use in tight spaces during cable harnessing.
It accommodates wire sizes from 24 AWG down to 28 AWG, which corresponds to 0.24 mm² to 0.08 mm².
This model utilizes a straight action crimping mechanism, which is designed for precise and consistent crimping of contacts.
It is specifically designed for use with DYNAMIC D-3000 connector contacts.
The tool features a plain handle grip that ensures ergonomic use and secure handling during operation.
Yes, it is certified to RoHS and EU standards, indicating compliance for use in regulated markets.
It features a ratchet mechanism that ensures the crimping force is precisely controlled for consistent results.
Yes, it includes an insulation stop to ensure accurate positioning of wires within the contacts during crimping.
It is suited for applications in human-machine interface systems (HMI), robotics, automation, and servo drives.
The handle type of this crimp tool is plain, designed for ease of use without complex adjustments.
It is manufactured in the United States.
This crimp tool belongs to the CERTI-CRIMP II series, known for its high-performance crimping capabilities.
