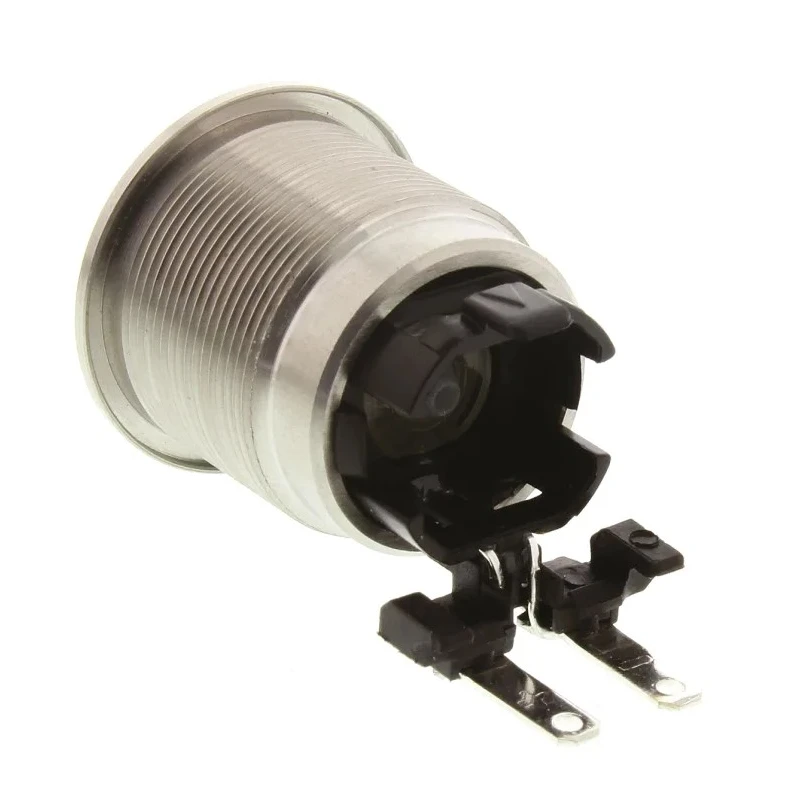

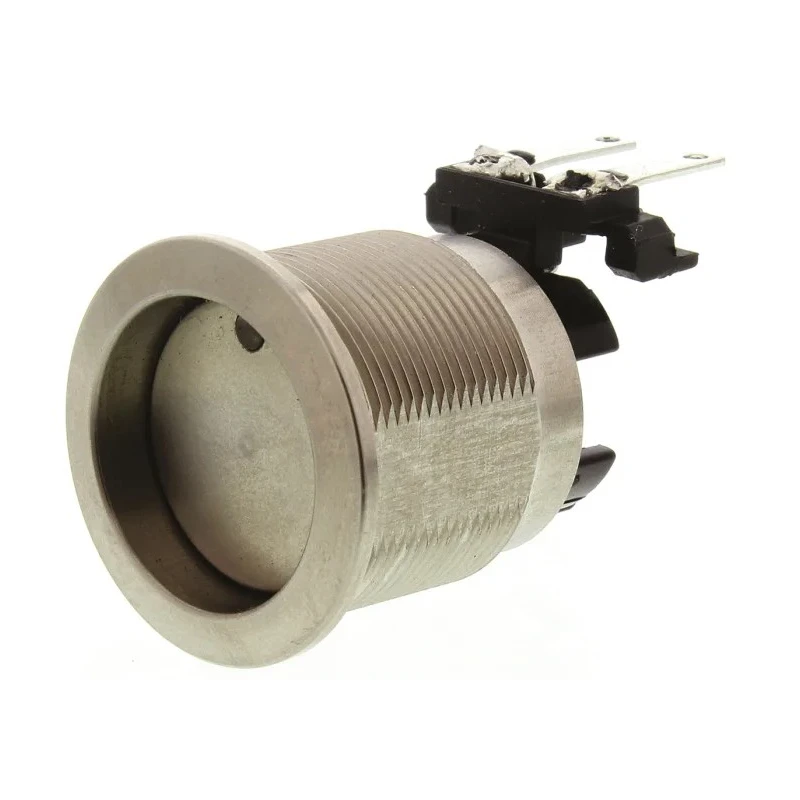

Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, DPDT, Red 1241.6823.1121000

Schurter 1241.6823.1121000 MSM LA 19 Series Illuminated Push Button Switch is an industrial-grade, latching push button switch designed for reliable panel mounting use with a precise 19 mm cutout. It features DPDT contact configuration and a red LED illumination, making the switching status visually clear for operators in diverse environments including industrial automation, machinery control, and electrical panels.

This switch comes with a robust construction offering an IP64 sealed stainless steel housing that protects against dust and water, alongside an IK07 shock resistance rating according to DIN EN 50102, suitable for harsh operating conditions. The round actuator style provides a comfortable and responsive push-on/push-off action with a force of 10N and 4.5 mm travel. It protrudes 3.7 mm above the panel when off, ensuring clear tactile feedback.

Designed for both AC and DC operation, this model supports contact voltages of 30 V DC and 250 V AC, with a maximum contact current rating of 12 A, making it versatile for a wide range of electrical switching applications. The switch is fitted with tab terminal types for secure and easy quick-connect installation.

The MSM LA 19 series is compliant with international standards including CSA, IEC, RoHS, and UL, guaranteeing safety, environmental compliance, and quality. Its operational temperature range from -25°C to 85°C allows use in varying industrial settings. The long mechanical lifespan of up to 150,000 cycles ensures durable service life.

The illuminated red LED provides a clear visual indication of the switch position, with a 180° viewing angle. Point illuminated types require a suitable series resistor, whereas ring illuminated versions include resistors for 24 V DC operation, offering flexibility in system design.

This push button switch is ideal for applications in industrial automation systems, electrical control panels, manufacturing equipment, HVAC controls, and machine interfaces requiring robust, reliable, and visually clear operator inputs.

Explore the wide range of Schurter Push Button Switches on EnvMart for high-quality industrial and electronic components. Robust 19 mm panel cutout size. Latching push-on/push-off operation with round actuator. Red LED illumination for visual status indication.

IP00, IP64 ingress protection for harsh use. Suitable for 30 V DC and 250 V AC contact voltages. Up to 12 A contact current rating. Tab terminal quick-connect installation. Operating temperature range -25°C to 85°C. Complies with CSA, IEC, RoHS, and UL standards.

Long mechanical life of 150,000 operations.
