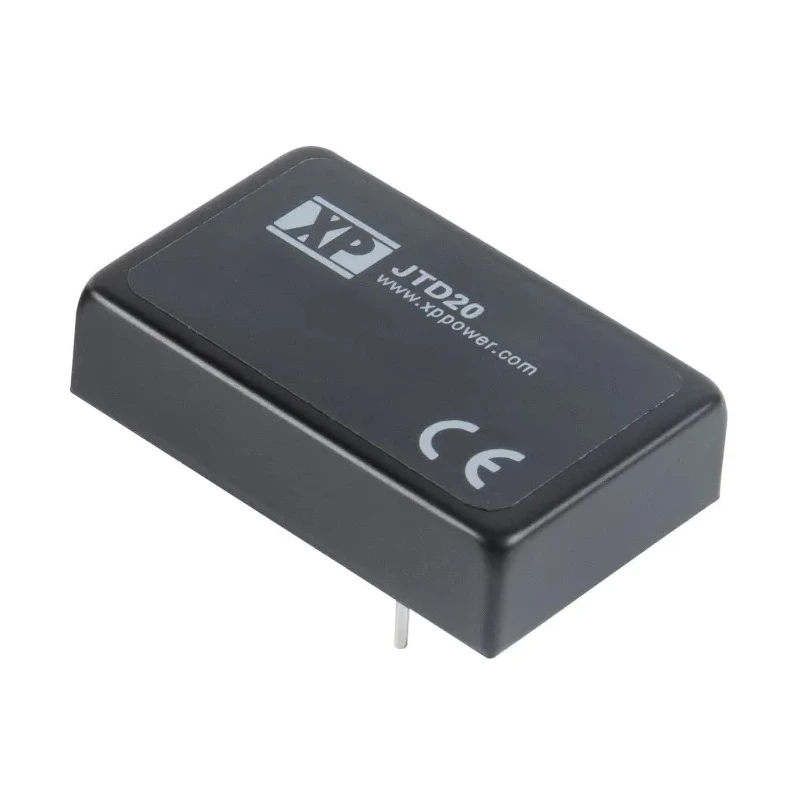

XP Power Regulated DC-DC Converter 15V DC Output 1.33A 36V DC Input 9V Input 20W Through Hole Mount JTD20
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTD20 DC/DC Converter, 15V dc/ 1 |
| Brand | XP Power |
| Efficiency | 88% |
| Length | 40.64mm |
| Model | JTD20 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTD20 |
| Maximum Operating Temperature | 100°C |
| Package Type | 1.6 x 1 in |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1.33A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- Provides a regulated single output voltage of 15V DC with 1.33A current capacity.
- Accepts a wide input voltage range from 9V DC to 36V DC.
- Supports a maximum output power rating of 20 watts for consistent performance.
- Equipped with a through-hole mount type for secure PCB installation.
- Offers isolation voltage of 1600V DC ensuring electrical safety.
- Compact package dimensions of 1.6 x 1 inches footprint with 40.64mm length, 25.4mm width, and 10.4mm depth.
- Operates efficiently at 88% efficiency minimizing energy loss.
- Wide operating temperature range from -40°C to 100°C suitable for industrial environments.
Product Description
XP Power JTD20 model DC-DC converter is a high-performance, regulated, isolated power supply module delivering 15V DC output at 1.33A current and 20 watts of power. Operating with a wide input voltage range from 9V to 36V DC, it suits a variety of electronic applications requiring stable voltage conversion.
This device features a through-hole mounting package measuring 1.6 x 1 inches footprint, with discrete dimensions of 40.64mm length, 25.4mm width, and 10.4mm depth. Its isolation voltage is rated at 1600V DC, providing enhanced safety in industrial power circuits.
With a notable efficiency of 88%, the JTD20 converter minimizes power loss and heat generation, making it suitable for continuous usage over wide temperature ranges of -40°C up to 100°C. The inclusion of a remote On/Off control adds flexibility for integration in complex electrical systems.
These converters are part of the JTD20 series, highly regarded for their reliability and compact design for use in power management, industrial automation, communications, and electronic manufacturing. The product complies with no specific regulatory approvals but is designed to meet application reliability requirements.
Typical uses include industrial electronic equipment, telecommunications powering, instrumentation, and any design requiring efficient DC voltage isolation and regulation. Provides a regulated single output voltage of 15V DC with 1.33A current capacity.
Accepts a wide input voltage range from 9V DC to 36V DC. Supports a maximum output power rating of 20 watts for consistent performance. Equipped with a through-hole mount type for secure PCB installation. Offers isolation voltage of 1600V DC ensuring electrical safety.
Compact package dimensions of 1.6 x 1 inches footprint with 40.64mm length, 25.4mm width, and 10.4mm depth. Operates efficiently at 88% efficiency minimizing energy loss. Wide operating temperature range from -40°C to 100°C suitable for industrial environments.
Designed with remote On/Off function enhancing control in applications. Manufactured in Taiwan, Province of China to high reliability standards. Explore our range of DC-DC Converters and power supplies at EnvMart for industrial and electronic applications requiring dependable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter provides a regulated output voltage of 15V DC with a current capacity of 1.33A.
It accepts a wide input voltage range from 9V DC to 36V DC.
The maximum output power rating is 20 watts.
This model has a footprint of 1.6 x 1 inches, with dimensions of 40.64mm in length, 25.4mm in width, and 10.4mm in depth.
It operates at an efficiency of 88%, minimizing energy loss.
The isolation voltage is rated at 1600V DC, ensuring electrical safety.
It operates efficiently within a wide temperature range from -40°C to 100°C.
It is equipped with a through-hole mount type for secure PCB installation.
Typical applications include industrial electronic equipment, telecommunications powering, and instrumentation requiring efficient DC voltage isolation and regulation.
Yes, it includes a remote On/Off control function for enhanced integration in electrical systems.
This model is manufactured in Taiwan, Province of China.
The JTD20 converter has one output.
