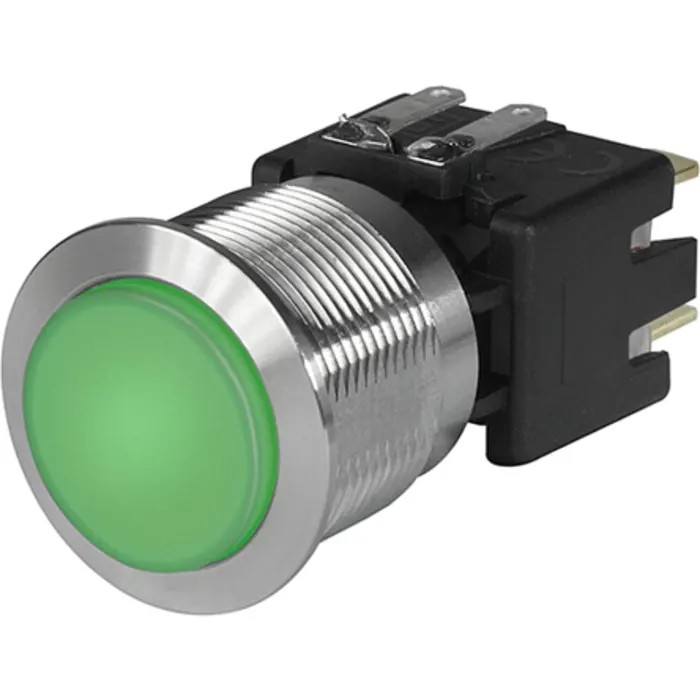

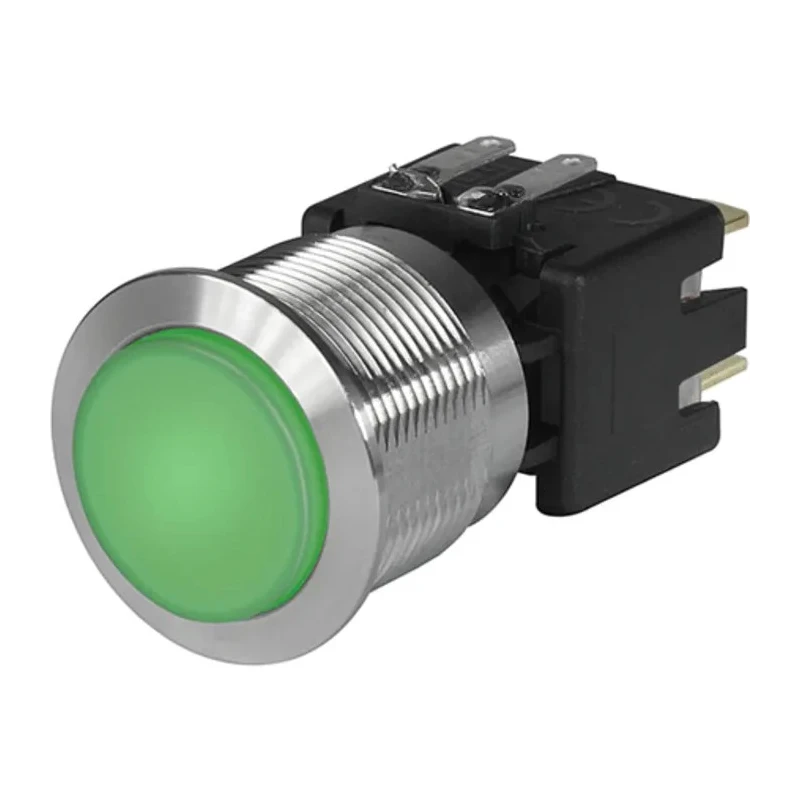

Schurter MSM LA CS 22 Series Illuminated Push Button Switch, Latching, Panel Mount, 22.1 mm Cutout, DPDT, Green 3-101-039
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Schurter |
| IP Rating | IP40, IP64 |
| Mount Type | Panel |
| Series | MSM LA CS 22 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22.1 mm |
| Terminal type | Solder |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Green |
| Contact DC Voltage | 30V dc |
| Actuator Style | Push Button |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V ac |
| Shock protection | IK 07 |
| Actuation force | 10 N |
Key Features
- The switch has a durable stainless steel housing and a scratch-proof ceramic actuator for vandal resistance.
- Illumination requires a 24 V dc supply and uses a green LED indicator for easy status visibility.
- It is rated for IP40 and IP64 ingress protection, suitable for harsh environments.
- Electrical ratings include 30 V dc and 250 V ac contact voltages with a 16 A contact current rating.
- Operating temperature ranges from -25°C to 85°C, and the actuator has a force of 10 N with IK07 shock protection.
- Ideal for use in vending machines, public facilities, and equipment requiring reliable user feedback.
- The actuator travel exceeds 5 mm for clear ON/OFF tactile feedback during operation.
- Complies with IEC and UL CSA standards, including KEMA/ENEC certification for safety and performance.
Product Description
Schurter 3-101-039 MSM LA CS 22 Series Illuminated Push Button Switch is a robust, latching panel mount switch featuring a 22.1 mm cutout and DPDT contact configuration. This push button uses a reliable green LED for illumination and is designed to withstand harsh operating environments with its stainless steel housing and scratch-proof ceramic actuator.
The switch is IP40 and IP64 rated, providing protection from solids and splashing water, making it suitable for industrial, manufacturing, vending, and public facility applications. Its actuator travel distance of over 5 mm ensures excellent tactile feedback, reducing accidental operation and improving user experience.
Rated for electrical contact voltages of 30 V dc and 250 V ac with a 16 A current capacity, it supports a wide range of control circuit requirements. The switch operates efficiently across a temperature range from -25°C up to 85°C and withstands mechanical shocks with IK07 protection rating.
The green LED illumination requires a 24 V dc supply and clearly signals the ON/OFF status. This model meets international standards including 2014/35/EU, DIN EN 61058-1, UL CSA E-41791, UL 1054, and KEMA ENEC 2089323.01, ensuring compliance and reliable performance in demanding environments.
The stainless steel and ceramic construction provide durability and vandal resistance. The 10 N actuation force ensures a firm and positive switch operation. Designed for applications such as ticket machines, vending machines, and public access panels.
The DPDT contact configuration allows versatile switching options for control circuits. Shock protection with IK07 adds safety against impacts in heavy industrial use. Operating temperature range and IP ratings make it suitable for varied environmental conditions.
This Schurter push button switch offers durable and reliable operation for industrial, commercial, and automation systems. Explore more Push Button Switches and electrical components on EnvMart for your specific needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for contact voltages of 30 V dc and 250 V ac, with a contact current rating of 16 A.
This switch has IP40 and IP64 ingress protection ratings, making it suitable for environments with exposure to solids and splashing water.
The switch requires a panel cutout size of 22.1 mm for proper installation.
It operates efficiently within a temperature range of -25°C to 85°C.
It uses a green LED for illumination, which requires a 24 V dc supply for operation.
The actuator has a force of 10 N, providing clear tactile feedback during operation.
It has an IK07 shock protection rating, ensuring resistance to mechanical impacts.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The switch features a durable stainless steel housing and a scratch-proof ceramic actuator for vandal resistance.
It complies with international standards including IEC, UL CSA, and KEMA/ENEC certifications for safety and performance.
It is ideal for use in vending machines, public facilities, and equipment requiring reliable user feedback.
The switch is equipped with solder terminals for connection.
