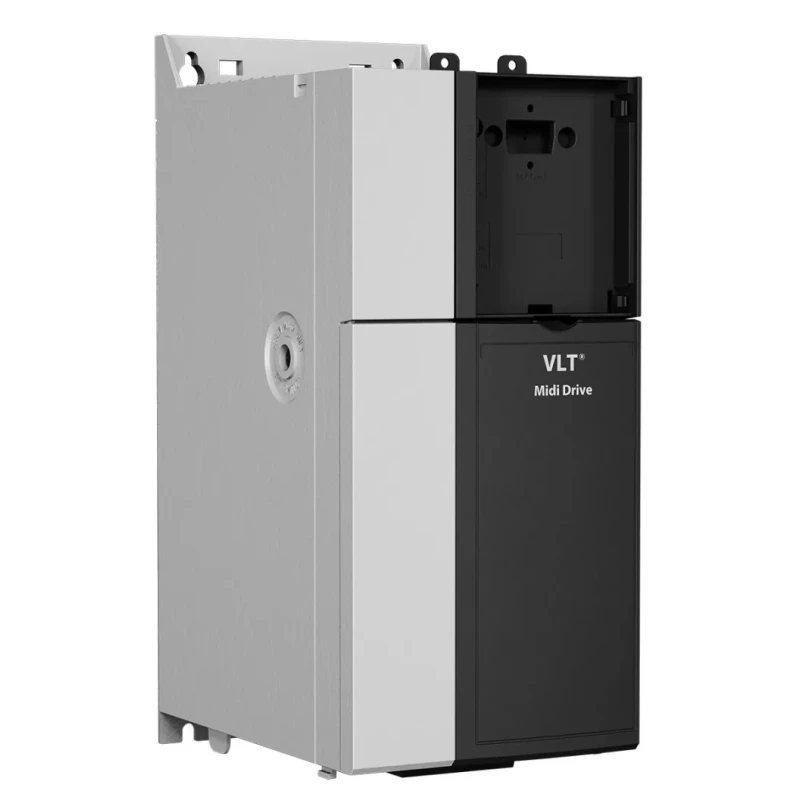

Danfoss Inverter Drive, 7.5 kW, 3 Phase, 480V, Panel Mount, 15.1A, Variable Frequency, 500Hz, IP20, Induction Motor FC280
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | Danfoss |
| Model | FC280 |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | Panel |
| Overall Length | 115mm |
| Series | FC280 |
| Overall Width | 168mm |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 45°C |
| Output Frequency | 500Hz |
| Interfaces | USB port |
| Number of Phases | 3 |
| Maximum Output Current | 15.1A |
| Standards/Approvals | CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed |
| Maximum Supply Voltage | 480V |
| Overall Depth | 272.5mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor |
Key Features
- Designed for industrial and automation applications requiring reliable motor control.
- Provides a power rating of 7.5 kW for efficient load management.
- Supports three-phase input from 380V to 480V for flexible installation.
- Panel mount form factor ensures easy integration into existing systems.
- Maximum output current rated at 15.1A for robust performance.
- Features IP20 protection for dust resistance in controlled environments.
- Variable frequency operation up to 500Hz adapts to diverse motor requirements.
- Compatible with induction motors and includes programmable digital and analogue I/O.
Product Description
Danfoss FC280 Inverter Drive, model 134U7721, is engineered for demanding industrial, laboratory, and commercial motor control applications. Featuring a robust 7.5 kW power rating, the FC280 variable frequency inverter drive is designed to deliver reliable performance in three-phase environments, with an input voltage range of 380V to 480V and a maximum output current of 15.1A.
Its panel-mounted installation, compact dimensions (width 168mm, depth 272.5mm, length 115mm), and IP20 rating make it well-suited for enclosed electrical panels requiring dust resistance. The drive is compatible with induction motors, allowing precise adjustment of output frequency up to 500Hz for versatile control tasks in manufacturing, HVAC, water treatment, and process automation settings. Functional safety is supported via dual-channel STO, and the integrated DC choke and RFI filter contribute to system stability and compliance.
The FC280 series includes advanced features such as fieldbus communication (Profibus, Profinet, Ethernet/IP, CANopen, Modbus RTU, FC Protocol), programmable digital and analogue inputs/outputs, PID controller, and USB connectivity for easy PC interface. Its efficient design saves energy and occupies minimal space, making it ideal for retrofit applications and compatibility with VLT 2800 drives.
Designed for industrial automation, process control, and manufacturing environments. Powerful 7.5 kW output for medium to heavy-duty motor drives. Panel mount form factor, compact and suitable for system integration. Maximum output current 15.1A, with wide input voltage range (380 - 480V).
Variable frequency operation up to 500Hz for flexible motor speed control. Integrated fieldbus communication options including USB, Profibus, Profinet, Ethernet/IP, CANopen, and Modbus RTU. Compliant with CE, cUL, EMC, RCM, TUV, UL standards for global use.
Functional safety via dual-channel STO and programmable I/O features.
Danfoss FC280 drives are widely used in industrial, laboratory, construction, manufacturing, water treatment, and HVAC systems. Their versatility ensures compatibility with OEMs and system integrators requiring advanced motor control and energy efficiency.
Browse more Danfoss inverter drives, variable frequency drives, and automation components in the Inverter Drive category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Danfoss FC280 inverter drive has a power rating of 7.5 kW, making it suitable for medium to heavy-duty motor drives.
The maximum output current for this inverter drive is rated at 15.1A.
This model supports a three-phase input voltage range from 380V to 480V.
The maximum output frequency of the FC280 inverter drive is 500Hz, allowing for flexible motor speed control.
The FC280 is compatible with induction motors, providing reliable motor control for various applications.
The dimensions of this inverter drive are 168mm in width, 272.5mm in depth, and 115mm in length.
The FC280 has an IP20 rating, which provides dust resistance in controlled environments.
This model is designed for panel mount installation, ensuring easy integration into existing systems.
The inverter drive includes a USB port and supports various fieldbus communication options such as Profibus, Profinet, Ethernet/IP, CANopen, and Modbus RTU.
The Danfoss FC280 is compliant with CE, cUL, EMC, RCM, TUV, and UL standards for global use.
The maximum operating temperature for this inverter drive is 45°C.
This inverter drive is designed for industrial automation, process control, manufacturing, HVAC, and water treatment applications.
