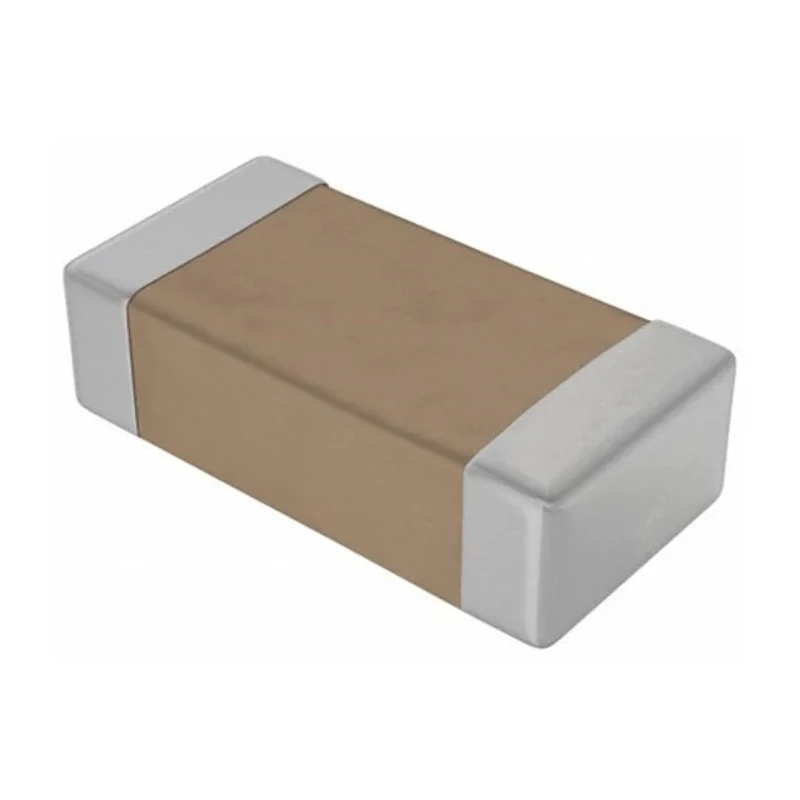

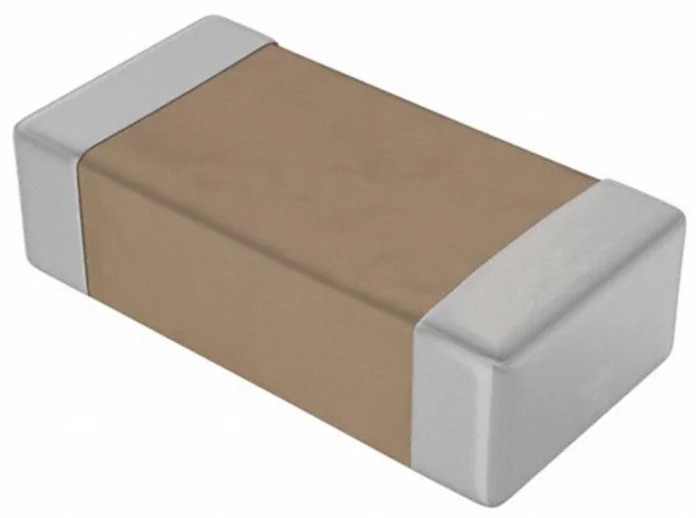

KYOCERA AVX 2.2 nF Multilayer Ceramic Capacitor 100V dc ±10% Tolerance Surface Mount 1206 Case 12061C222KAT2A

KYOCERA AVX model 12061C222KAT2A is a high-quality Multilayer Ceramic Capacitor (MLCC) designed for surface mount technology applications. It features a capacitance value of 2.2 nF with a 100 V dc voltage rating and a tolerance of ±10%, making it suitable for various industrial and electronic circuit uses.

The capacitor uses an X7R dielectric material, which classifies it as a temperature-stable Class II ceramic capacitor, ideal for applications where moderate variations in capacitance are acceptable due to environmental changes or applied voltages.

The 1206 package size offers a compact footprint of 3.2 mm length, 1.6 mm width, and 0.94 mm height, facilitating use in dense PCB designs. The product is supplied on a reel, supporting automated placement in manufacturing environments.

Operational temperature range from -55°C to 125°C ensures reliability in harsh and varied environments commonly found in industrial, manufacturing, and electronic component assemblies.

This capacitor's surface mount termination type enables easy soldering and strong mechanical connection to printed circuit boards (PCBs), meeting standard industry mounting requirements.

Capacitance: 2.2 nF. Voltage Rating: 100 V dc. Dielectric Type: X7R for temperature stability. Package/Case: 1206. Mount Type: Surface mount. Tolerance: ±10%. Operating Temperature: -55°C to 125°C. Dimensions: 3.2 mm length, 1.6 mm width, 0.94 mm height.

Suppression Class: Class II. Packaging: Reel for manufacturing efficiency. Series: KGM.

This Multilayer Ceramic Capacitor is applicable in industrial electronics, power & connectors, laboratory instruments, communication devices, and other commercial electronic equipment requiring dependable capacitance performance in a compact form factor.
