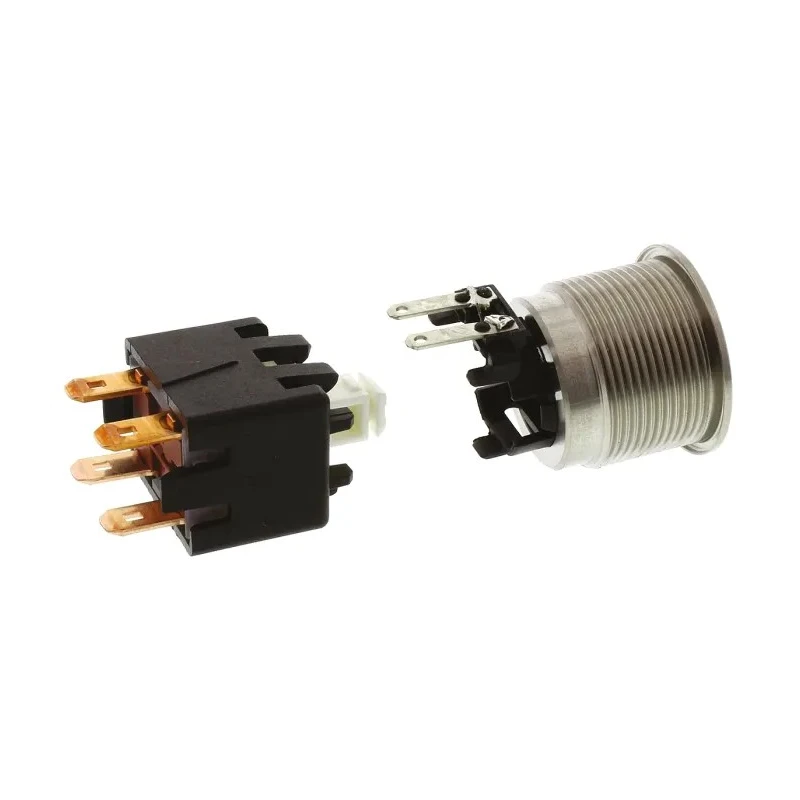

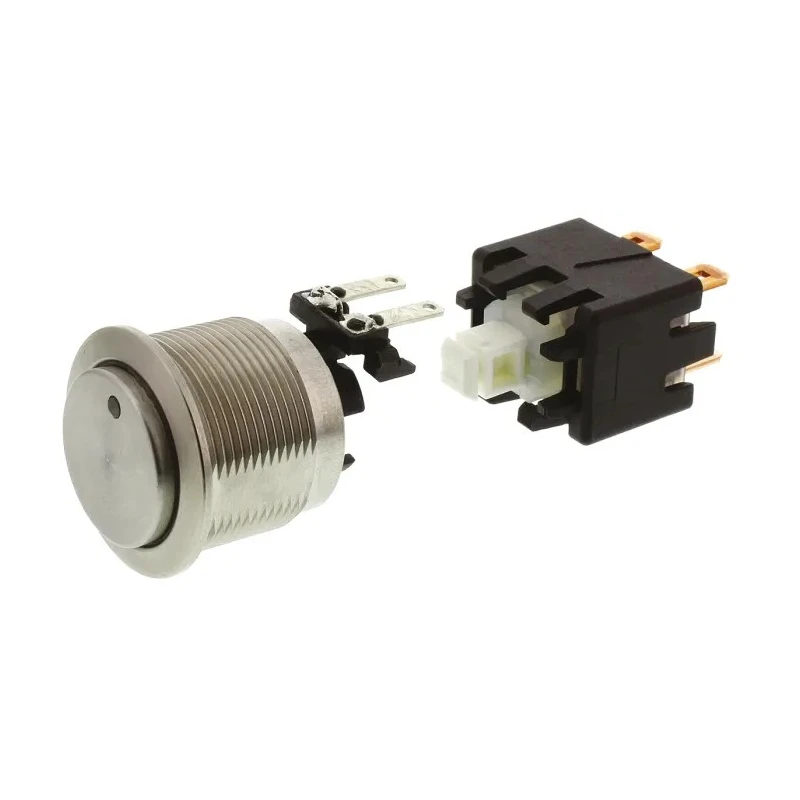

Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, DPDT, Blue 1241.6833.1124000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP00, IP64 |
| Mount Type | Panel |
| Series | MSM LA 19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Tab |
| Standards/Approvals | UL, RoHS, IEC, CSA |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 30V dc |
| Actuator Style | Button |
| Switch Contact Current | 12A |
Key Features
- The switch features a 22 mm panel cutout for secure mounting.
- It has a robust stainless steel housing sealed to IP64, suitable for harsh environments.
- The actuator is a natural color button with 10N operating force and 4.5 mm travel.
- The blue LED illumination provides clear optical switching status indication with a 180° viewing angle.
- It supports a contact DC voltage of 30V and a contact current rating of 12A.
- Operating temperature range is from -25°C to 85°C, ensuring reliability in varied conditions.
- The switch complies with UL, RoHS, IEC, and CSA standards for quality and safety.
- Designed for up to 150,000 mechanical operations, offering long life and durability.
Product Description
Schurter 1241.6833.1124000 Illuminated Push Button Switch is a high-quality latching switch designed for panel mounting with a 22 mm cutout, suitable for industrial and electrical control applications. The DPDT contact configuration allows for versatile switching operations with a contact voltage of 30V DC and current rating of 12A.
Featuring a natural-coloured button actuator, the switch requires an operating force of 10N and has a travel distance of 4.5 mm, protruding 3.7 mm above the panel in the off state. The blue LED illumination provides a clear visual indication of switching status with a wide 180° viewing angle, enhancing operator interface feedback.
The robust stainless steel housing is sealed to IP64, ensuring protection against dust and water ingress, making it suitable for harsh industrial environments. The switch can operate reliably within a temperature range from -25°C to 85°C and boasts IK07 shock resistance, which meets DIN EN 50102 standards for mechanical shock.
The quick connect tab terminals enable simple installation and maintenance. This switch offers a long mechanical life of up to 150,000 operations, ensuring durability and consistent performance.
The switch complies with international standards including UL, RoHS, IEC, and CSA, guaranteeing high quality and safety certifications. IP00 and IP64 versions are available, allowing users to choose the appropriate protection level for specific applications.
Illuminated versions come in different LED colors, with the blue LED featured here providing an aesthetic and functional indication. This push button switch is ideal for use in industrial control panels, automation systems, and machinery requiring reliable latching switches with illumination.
Schurter products are well-regarded in the electronics and electrical sectors for their precision, durability, and compliance with global standards. Explore more Push Button Switches in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching operations.
It requires a panel cutout size of 22 mm for secure mounting.
The operating temperature range for this switch is from -25°C to 85°C, ensuring reliable performance in varied conditions.
The switch has a contact current rating of 12A, suitable for various applications.
It uses quick connect tab terminals, facilitating simple installation and maintenance.
This switch is available in IP00 and IP64 ratings, allowing users to choose the appropriate protection level for their applications.
It is designed for up to 150,000 mechanical operations, providing a long operational life.
It complies with UL, RoHS, IEC, and CSA standards, ensuring quality and safety.
The LED illumination in this switch is blue, providing a clear visual indication of switching status.
The actuator style is a button, and it is natural in color, designed for ease of use.
The switch requires an operating force of 10N, which is necessary for actuation.
This model has an IK07 shock resistance rating, meeting DIN EN 50102 standards for mechanical shock.
