Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, DPDT, Blue LED, IP64 1241.6824.1124000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 22mm |
| IP Rating | IP64 |
| Width | 22mm |
| Mount Type | Panel |
| Series | MSM LA 19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Tab |
| Standards/Approvals | CE, RoHS |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 125V dc |
| Actuator Style | Round |
| Switch Contact Current | 12A |
| Contact AC Voltage | 125V ac |
Key Features
- Robust stainless steel housing with IP64 protection for harsh environments.
- Latching switch operation with 19 mm panel cutout size.
- Double pole double throw (DPDT) contact configuration.
- Blue LED illumination with optical visibility and 180° viewing angle.
- Operating temperature range from -20°C to 85°C.
- Durable for up to 150,000 mechanical operations.
- Shock resistance to IK07 standard according to DIN EN 50102.
- Tab type quick connect terminals for easy installation.
Product Description

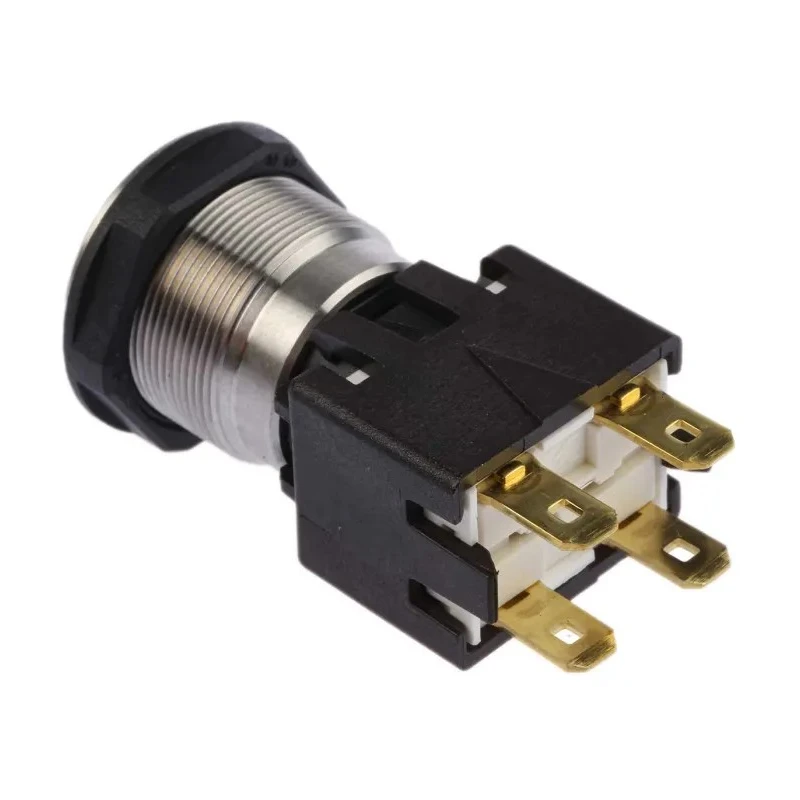

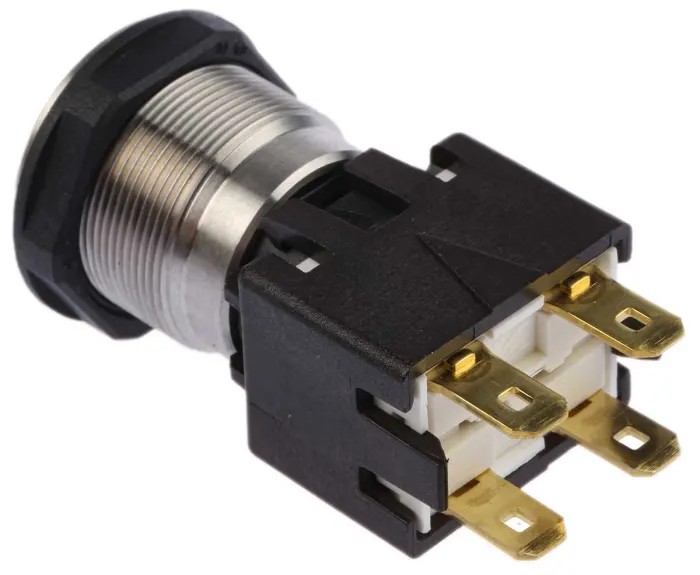

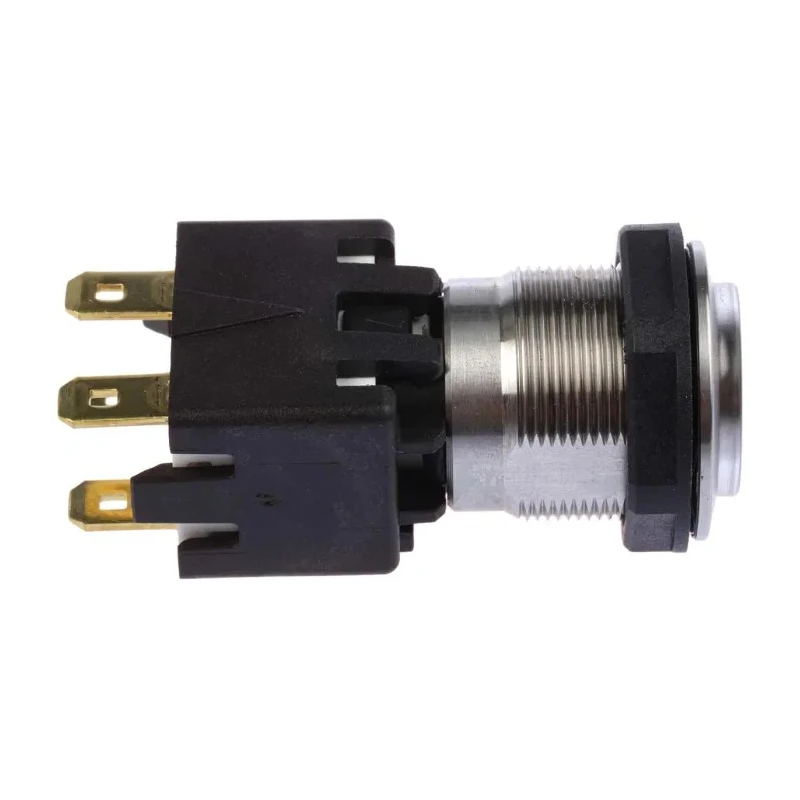

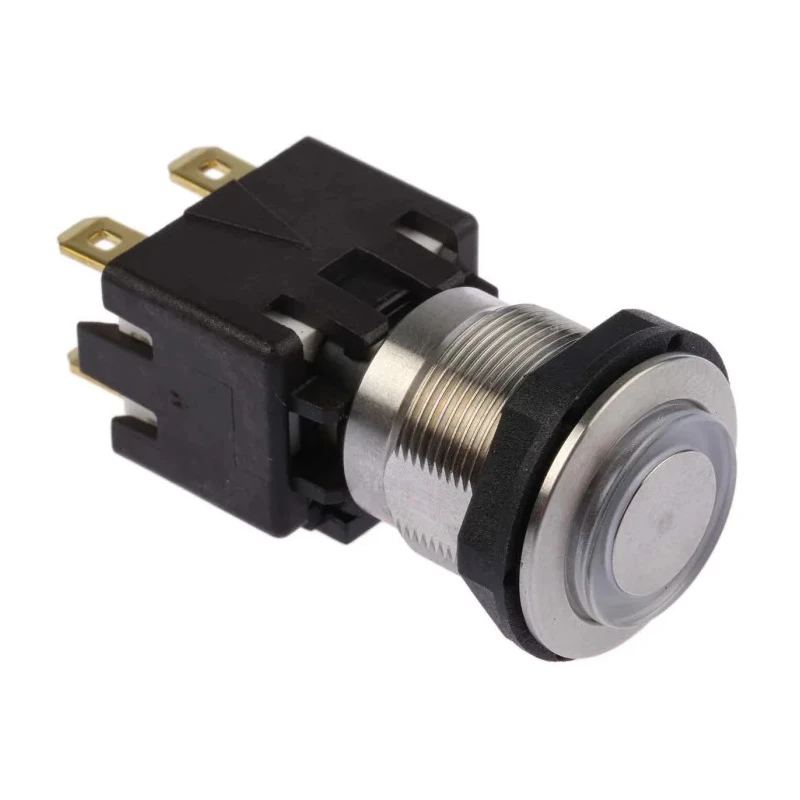

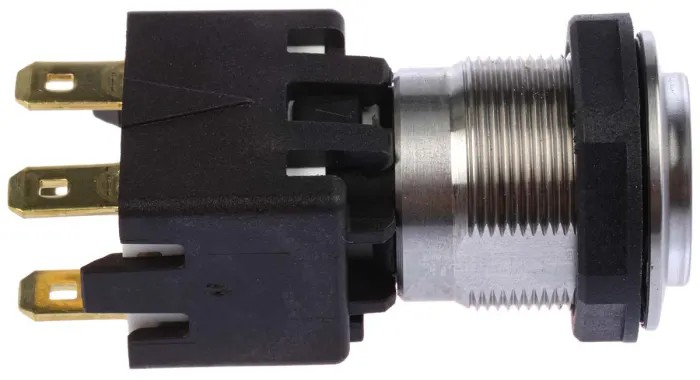

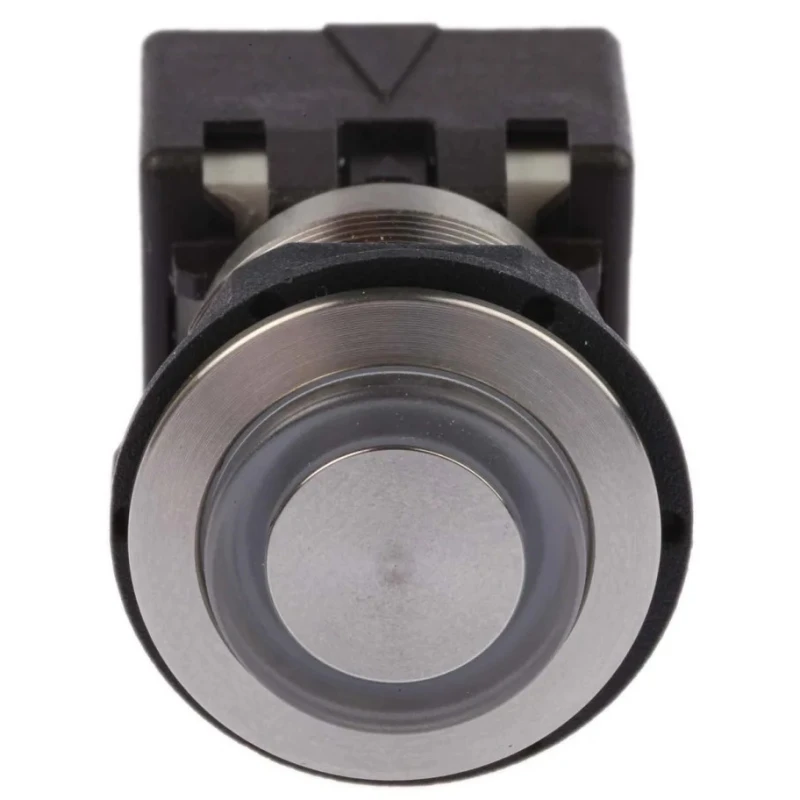

Schurter 1241.6824.1124000 is an illuminated push button switch from the MSM LA 19 Series designed for panel mounting with a 19 mm cutout. This latching switch type operates with a double pole double throw (DPDT) contact configuration and features a natural colored round actuator fitted with a blue LED.
The switch housing is made of stainless steel and offers IP64 ingress protection, making it suitable for industrial and harsh environment applications such as electrical automation, manufacturing control panels, and industrial machinery. The actuator requires a force of 10N and has a travel distance of 4.5mm, protruding 3.7mm above the panel in its off state.
Operating temperatures range from -20°C to a maximum of 85°C, allowing for reliable performance under varied conditions. The switch is designed to withstand mechanical shock to IK07 standards (DIN EN 50102) and allows up to 150,000 mechanical operations, ensuring long-term durability.
The unit operates safely at contact voltages of 125 V dc and 125 V ac with a contact current rating of 12A. It has quick connect tab terminals to facilitate fast and reliable wiring installation. The illuminated blue LED provides clear switch status visibility with an illumination angle of 180°.
This product complies with CE and RoHS certifications, confirming its adherence to strict safety, environmental, and quality standards suitable for industrial, laboratory, and electrical panel use.
Robust stainless steel housing with IP64 protection for harsh environments. Latching switch operation with 19 mm panel cutout size. Double pole double throw (DPDT) contact configuration. Blue LED illumination with optical visibility and 180° viewing angle.
Operating temperature range from -20°C to 85°C. Durable for up to 150,000 mechanical operations. Shock resistance to IK07 standard according to DIN EN 50102. Tab type quick connect terminals for easy installation. Switch contact current rating of 12A for versatile industrial applications.
Complies with CE and RoHS standards ensuring safety and reliability.
This illuminated Push Button Switch is ideally used in industrial electrical panels, automation systems, manufacturing controls, HVAC systems, and other commercial equipment requiring robust and clear user interface components.
Explore more Schurter switches and electrical components with EnvMart for advanced and reliable industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for this switch is 85°C, making it suitable for a range of industrial applications.
It requires a panel cutout size of 19 mm for proper installation in control panels or similar applications.
This unit uses tab type quick connect terminals, facilitating fast and reliable wiring installation.
The switch has an IP64 rating, providing protection against dust and water splashes, suitable for harsh environments.
The actuator style is round and it is natural colored, designed for easy visibility and operation.
The contact current rating is 12A, allowing it to handle various industrial applications effectively.
It is designed to withstand up to 150,000 mechanical operations, ensuring long-term usability in demanding environments.
The LED illumination is blue, providing clear visibility of the switch status with an optical viewing angle of 180°.
This product complies with CE and RoHS standards, ensuring adherence to safety and environmental regulations.
The minimum operating temperature for this switch is -20°C, allowing it to function in colder environments.
It is suitable for use in industrial electrical panels, automation systems, manufacturing controls, and HVAC systems.
