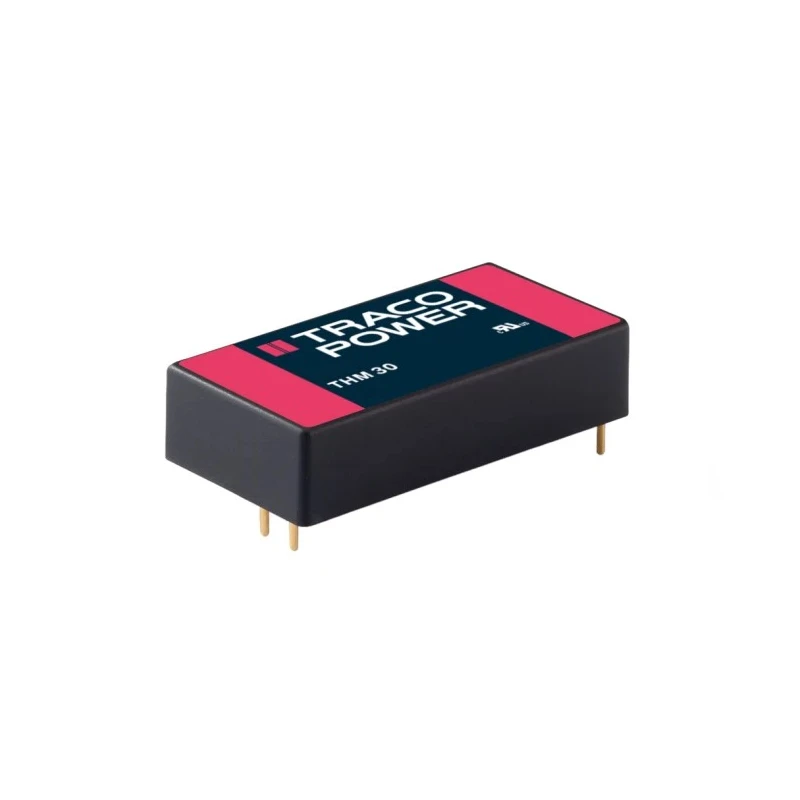

Tracopower THM 30-2412 DC/DC Converter 12V DC 2.5A 18 - 36V Input 30W Through-Hole Plastic Case
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 30 DC/DC Converter, 12V dc/ 2 |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 50.8mm |
| Model | THM 30-2412 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THM 30 |
| Maximum Operating Temperature | 80°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 1137000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 2.5A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Wide operating input voltage range from 18V to 36V DC for flexible integration.
- Stable regulated 12V DC output rated at up to 2.5A for power-sensitive electronics.
- Delivers 30W maximum output power in robust industrial and medical environments.
- Compact plastic case with through-hole package type, measuring 50.8 × 25.4 × 10.2 mm (L×W×D).
- Single output channel adjustable by ±10% to suit various load requirements.
- High isolation voltage of 5kV AC for reinforced safety and insulation.
- Efficient up to 89% for reduced heat generation and reliable performance.
- Designed to operate in extreme temperatures from -40°C to +80°C for harsh environments.
Product Description
The Tracopower THM 30-2412 is a high-performance isolated DC/DC converter designed to supply regulated 12V DC power at up to 2.5A with a wide input range from 18V to 36V DC. This converter is specifically engineered for reliable operation in demanding industrial, transportation, measurement, and medical applications.
Engineered with a robust plastic case and through-hole mounting, the THM 30-2412 provides a compact footprint of 50.8 mm × 25.4 mm × 10.2 mm that is suitable for integration into printed circuit boards and embedded power systems. It is capable of delivering up to 30W of output power through a single channel, with the output voltage adjustable by ±10% for application flexibility. High efficiency (up to 89%) and low standby loss ensure energy savings and reduced thermal management requirements.
Exceptional insulation is provided by its 5kV AC isolation voltage, supporting reinforced electrical separation. The converter can operate in a broad temperature range from -40°C to +80°C, guaranteeing dependable power supply under harsh environmental conditions. Features such as low leakage current, essential for medical-grade power, and automatic short circuit and overvoltage protection with self-recovery further enhance system safety.
With an MTBF of 1,137,000 hours, the THM 30-2412 offers excellent reliability for mission-critical devices. Its package is a 6-pin design optimized for through-hole mounting, and it supports up to 5000 meters altitude operation, maintaining rated performance. Control and measurement devices, IGBT drivers, medical equipment, and transportation electronics are just a few of the typical deployment contexts for this converter.
Common industrial applications include factory automation, process control, railway on-board systems, instrumentation, medical electronics, and any situation demanding compact, robust, and isolated DC power conversion. The product’s features ensure stable operation, long life, and high safety for modern electronic equipment.
Browse more high-efficiency DC/DC converters and Tracopower solutions in the DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
It delivers a maximum output power of 30W.
This unit can provide an output current of up to 2.5A.
The efficiency of the THM 30-2412 is up to 89%.
The dimensions of this model are 50.8 mm in length, 25.4 mm in width, and 10.2 mm in depth.
It supports through-hole mounting.
The isolation voltage is 5kV AC, providing reinforced safety and insulation.
This model operates within a temperature range of -40°C to +80°C.
It has a single output channel.
The mean time between failures (MTBF) for this converter is 1,137,000 hours.
It is suitable for industrial, transportation, measurement, and medical applications.
It comes in a robust plastic case designed for through-hole mounting.
