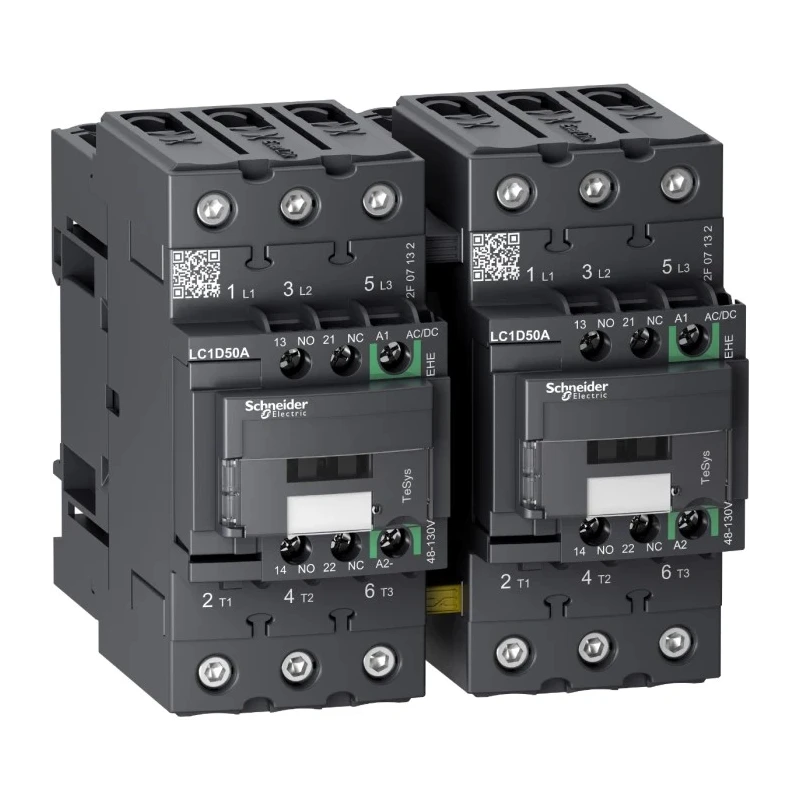

Schneider Electric TeSys D Reversing Contactor 3-Pole 50A 22kW 110V AC/DC Coil 690V LC2D50AEHE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 119mm |
| Model | LC2D50AEHE |
| Depth | 122mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 50A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 50A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Three-pole reversing contactor suitable for motor control and resistive load switching.
- Wide 110V AC/DC coil voltage for flexible control system integration.
- Rated for high current up to 50A and power loads up to 22kW.
- Operates with 3 NO main contacts and 2 auxiliary contacts (1 NO/1 NC).
- DIN rail mounting and screw terminals enable reliable, secure installation in control panels.
- Robust operation across -25°C to 60°C temperature range supports diverse environments.
- Complies with IEC, UL, RoHS, CSA, CCC, EAC safety and performance standards.
- 130V control circuit voltage and maximum 690V AC contact voltage ensure broad compatibility.
Product Description
The Schneider Electric LC2D50AEHE is a TeSys D series three-pole reversing contactor engineered for highly reliable motor control and resistive load management in industrial environments. With its 50A current rating and 22kW motor power capability, this unit is well-suited for demanding applications including conveyor systems, compressors, HVAC installations, mixers, and automated machinery.
Equipped with a versatile 110V AC/DC coil, the LC2D50AEHE allows straightforward integration with modern control systems supporting both AC and DC actuation. This model features three normally open (NO) main poles and two auxiliary contacts (one NO and one NC), offering flexible control for a wide range of operational and safety interlock needs.
Designed for convenience and reliability, this reversing contactor mounts to standard DIN rails and provides IP20-rated finger-safe screw terminals with clear North American and international markings. The contactor functions effectively within a -25°C to 60°C ambient temperature, making it suitable for use in harsh industrial and commercial environments.
Safety and compliance are assured through international certifications, including IEC, UL, RoHS, CSA, CCC, and EAC, supporting broad applicability and assured performance. The device operates with a maximum contact voltage of 690V AC and a control circuit voltage of 130V, ensuring it can handle diverse power supply scenarios while remaining energy efficient during normal and reversing switching operations.
The Schneider Electric LC2D50AEHE also offers compact panel integration, with a housing measuring 119mm in length, 120mm in width, and 122mm in depth. Its construction makes it easy to fit in modern control panels while maintaining clear wiring access and operational visibility.
AC-1 and AC-3 utilization categories signify the device’s suitability for switching both resistive loads and squirrel cage induction motors, with applications ranging from lifts and escalators to air conditioning units and conveying equipment. The device comes preassembled with the required reversing power busbar, reducing installation time and minimizing wiring errors.
Common industrial use cases include manufacturing plants, process automation, HVAC installations, pumping and water treatment stations, and general automation panels. Its robust design and certification footprint allow installation in both domestic and global markets.
For additional options, such as contactor accessories and integration with digital monitoring, Schneider Electric offers a broad range of expandable components compatible with the TeSys D series.
Explore more reversing contactors and motor control equipment from Schneider Electric in the Power Contactors section of EnvMart for professional-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D50AEHE has a power rating of 22kW, making it suitable for various motor control applications.
This reversing contactor measures 119mm in length, 120mm in width, and 122mm in depth.
The maximum contact voltage for the LC2D50AEHE is 690V AC, allowing it to handle diverse power supply scenarios.
It uses a 110V AC/DC coil, providing flexibility for integration with modern control systems.
The LC2D50AEHE features three poles, specifically designed for motor control and resistive load switching.
The operational current rating of the LC2D50AEHE is 50A, suitable for high current applications.
This unit operates effectively within a temperature range of -25°C to 60°C, accommodating various industrial environments.
It is designed for DIN rail mounting, facilitating secure installation in control panels.
This model includes two auxiliary contacts configured as one normally open (NO) and one normally closed (NC).
It complies with several standards including IEC, UL, RoHS, CSA, CCC, and EAC, ensuring broad applicability and safety.
The LC2D50AEHE is suitable for applications such as conveyor systems, compressors, HVAC installations, and automated machinery.
It features three normally open (NO) main contacts, allowing for flexible control in various operational scenarios.
