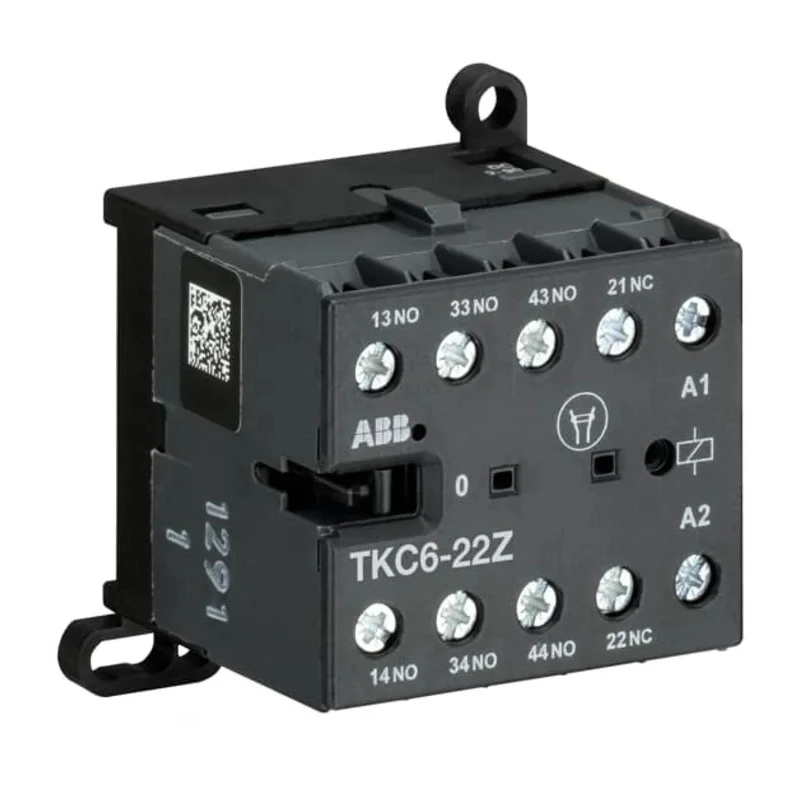

ABB TKC6-22Z Contactor Relay 32V DC Coil 4-Pole 4A 5W 690V 3 NO/1 NC

Free Delivery in India | Lowest Global Shipping Charges

ABB TKC6-22Z Contactor Relay 32V DC Coil 4-Pole 4A 5W 690V 3 NO/1 NC



Category Contactor Relay Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Length	46.5mm
Model	TKC6-22Z
Depth	46.5mm
Width	52.5mm
Mount Type	DIN Rail
Series	TKC6-22Z
Power Rating	5W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Terminal type	Screw
Number of Poles	4
Contact Voltage	690V
Coil Voltage	32V dc
Normal State Configuration	3 NO/1 NC
Contact Current	4A
Number of Auxiliary Contacts	4
Auxiliary Contact Configuration	4 pole
Operational Current Ie	4A
Control Circuit Voltage Uc	690V
Pole and Throw Configuration	4

Key Features

Compact design saves installation space.
Four pole configuration manages complex switching tasks effectively.
Noiseless coil operation suitable for noise-sensitive environments.
Screw terminals provide secure and reliable wiring connections.
Wide operating temperature range from -30°C to 70°C for versatile industrial use.
DIN rail mounting allows easy and flexible installation.
Three normally open and one normally closed contact configuration enhances control flexibility.
Robust contact current rating of 4A supports diverse load requirements.

Product Description

ABB TKC6-22Z Contactor Relay with model number GJH1213061R5221 features a 32V DC coil voltage, 4 poles, and a robust contact current rating of 4A with a power rating of 5W and contact voltage of 690V. Designed for automation and control gear applications, this relay provides precise and reliable switching operations in compact industrial settings.

This contactor relay has a compact footprint measuring 52.5mm width and 46.5mm depth, making it ideal for installations with limited space. Its noiseless coil operation ensures quiet performance, well-suited for environments sensitive to noise such as offices and laboratories.

Equipped with screw terminals, it guarantees secure and dependable electrical connections. The device supports 3 normally open (NO) and 1 normally closed (NC) contacts to offer versatile control schemes. It is engineered to operate across a wide temperature range of -30°C to +70°C, providing reliable performance in harsh industrial conditions.

The DIN rail mounting type simplifies installation and integration within existing control systems. The relay conforms to multiple international standards including UKCA, RoHS, IEC/EN 60947 series, EAC, and CE certifications, underscoring its quality and compliance assurance.

Applications span residential control signal switching, commercial automation tasks, and industrial machine control, especially useful in areas demanding compact equipment and silent operation.

Compact design aids in space-saving installations. Four-pole configuration effectively manages diverse switching tasks. Control coil operates noiselessly, improving user comfort. Robust contact current rating of 4A accommodates various loads.

Versatile mounting allows for easy installation on DIN rail. Dual auxiliary contact configuration enhances operational flexibility. Wide temperature range operation from -30°C to 70°C. Screw terminal ensures reliable wiring connections.

Mechanical durability rated up to 10,000,000 cycles. Compliant with UKCA, RoHS, IEC/EN standards.
