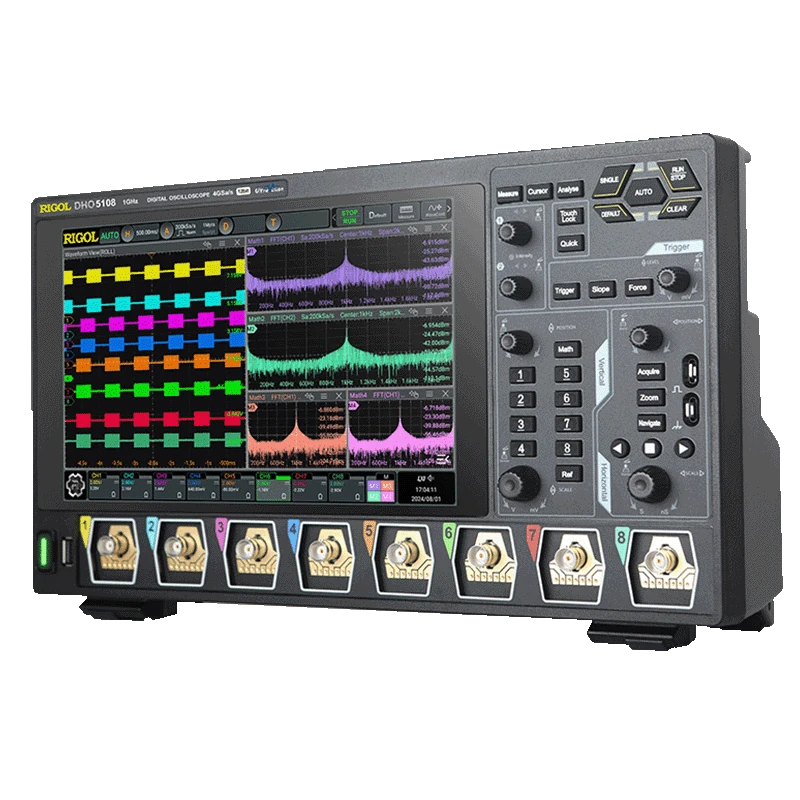

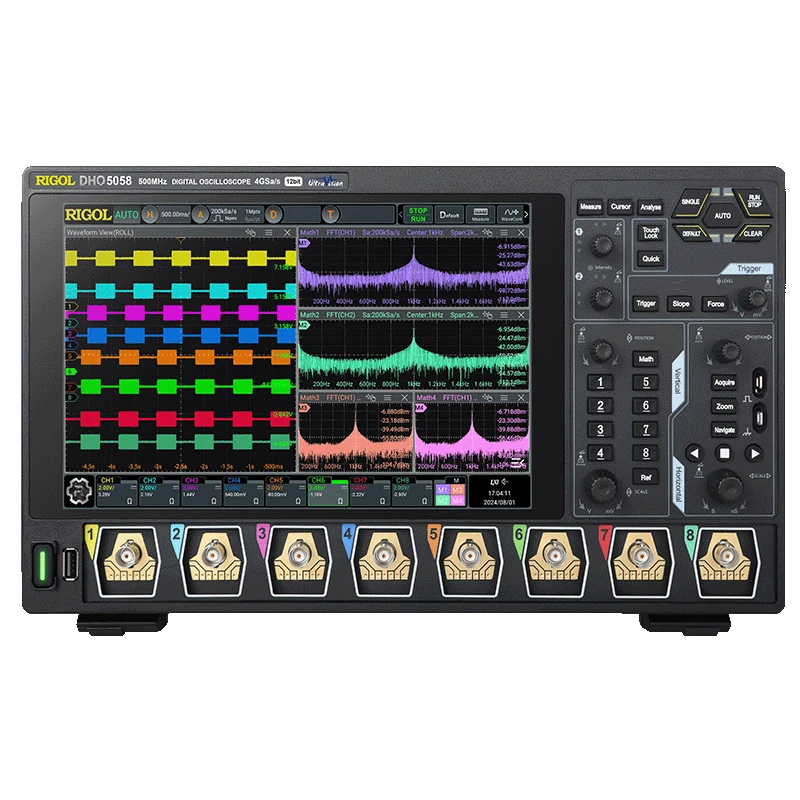

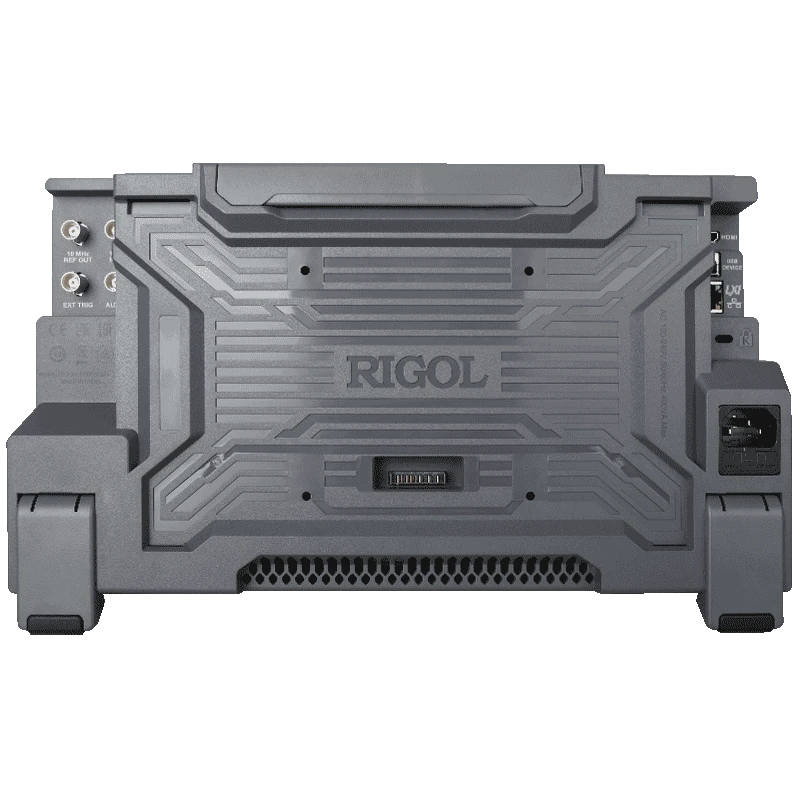

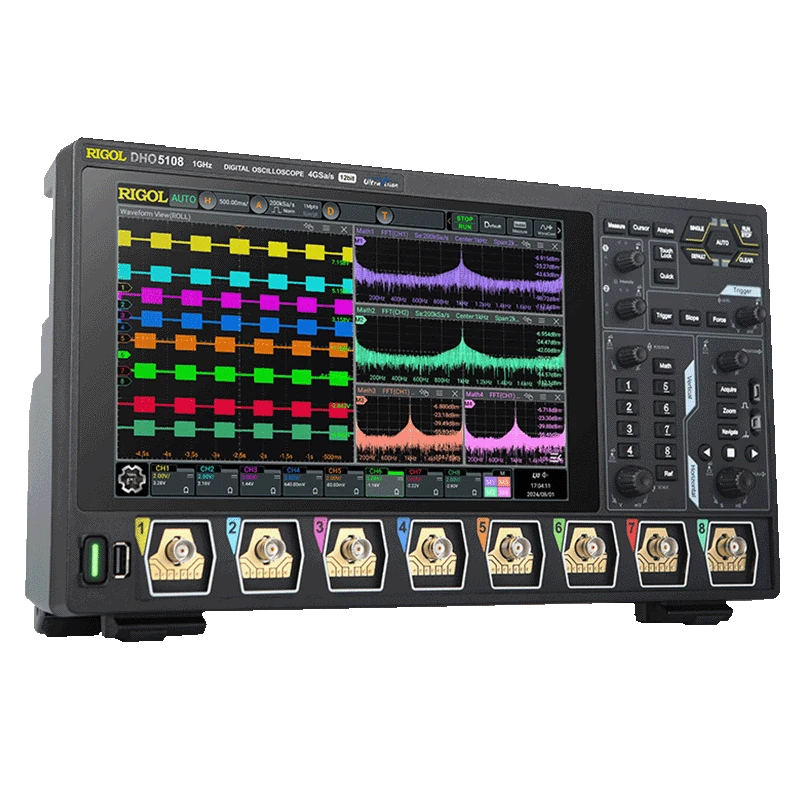

RIGOL MHO5000 Series Digital Oscilloscope | MHO5054 | MHO5056 | MHO5104 | MHO5106
Model
Analog Bandwidth
Max Sample Rate
Digital Channels
Analog Channels
Max Memory Depth
Specifications
| Country of Origin | India |
|---|---|
| Max Input Voltage | 1 MΩ: CAT I 300 Vrms, 400 Vpk; 50 Ω: 5 Vrms |
| Display | 10.1-inch capacitive multi-touch, 1280 × 800 |
| Brand | Rigol |
| Power Supply | AC 100–240 V, 50–60 Hz |
| Type | Digital Oscilloscope |
| Operating Temperature | -10°C to +50°C |
| Connectivity | USB 3.0 Host/Device, LAN, HDMI |
| Model | MHO5000 Series |
| Weight | 5.3 Kg |
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% |
| Analog bandwidth | 500 MHz / 1 GHz |
| Waveform Capture Rate | Up to 1,000,000 wfms/s |
| Number Of Analog Channels | 4/6/8 (model specific) |
| Maximum sample rate | 4 GSa/s |
| Dimensions (L×W×H) | 335 × 235 × 154 mm |
| Vertical Resolution | 12-bit (up to 16-bit in High-Resolution mode) |
| Memory Depth | Up to 500 Mpts |
| Timebase Range | 200 ps/div to 500 s/div |
| Bandwidth Limit | 20 MHz / 250 MHz / Full |
| Product Condition | New |
| MPN | MHO5000 Series |
| Recommended Calibration Interval | 18 months |
| Number of Digital Channels | 16 (MHO models, external logic probe required) |
| External Trigger Bandwidth | 200 MHz |
| Peak Detection | Captures 500 ps glitches |
Key Features
Rigol MHO5000 Series High-Resolution Digital Oscilloscope is an advanced instrument designed for engineers requiring high bandwidth, deep memory, and precision in signal analysis.
- True 12-bit vertical resolution for superior accuracy and detail.
- Bandwidth options up to 1 GHz suitable for high-speed applications.
- 4, 6, or 8 analog channels with external trigger and 16 digital (logic) channels on Mixed Signal models.
- Ultra-deep memory up to 500 Mpts for long-time high-resolution recording.
- Maximum real-time sample rate of 4 GSa/s for capturing fast signals.
- Waveform capture rate up to 1,000,000 wfms/s for observing rare glitches.
- Large 10.1-inch multi-touch capacitive display (1280 × 800 resolution).
- Flexible connectivity with USB, LAN, and HDMI interfaces for instrument integration and control.
- Integrated features such as built-in waveform recording, pass/fail testing, histogram, and advanced trigger/search options.
- Reliable battery-pack powered design for field and portable test requirements.
- Robust construction suitable for laboratories, semiconductor, and power electronics testing environments.
Product Description
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol MHO5000 Series Oscilloscope features a true vertical resolution of 12 bits, which can be extended to 16 bits in High-Resolution mode for enhanced accuracy and detail.
The MHO5000 Series supports 4, 6, or 8 analog channels depending on the model, and up to 16 digital channels on Mixed Signal models.
The Rigol MHO5000 Series offers bandwidth options up to 1 GHz, making it suitable for high-speed applications.
The oscilloscope has a maximum real-time sample rate of 4 GSa/s, allowing for precise measurements of fast signals.
The MHO5000 Series features ultra-deep memory with a capacity of up to 500 Mpts, enabling long-time high-resolution recording.
It comes with a large 10.1-inch multi-touch capacitive display with a resolution of 1280 × 800, providing clear visibility of waveforms.
The MHO5000 Series offers flexible connectivity options including USB 3.0, LAN, and HDMI interfaces for easy integration and control.
Yes, it features a reliable battery-pack powered design, making it ideal for field and portable testing requirements.
It is recommended to calibrate the MHO5000 Series every 18 months to ensure optimal performance.
This oscilloscope is designed for various applications including R&D, test labs, embedded design validation, semiconductor analysis, and power electronics testing.
