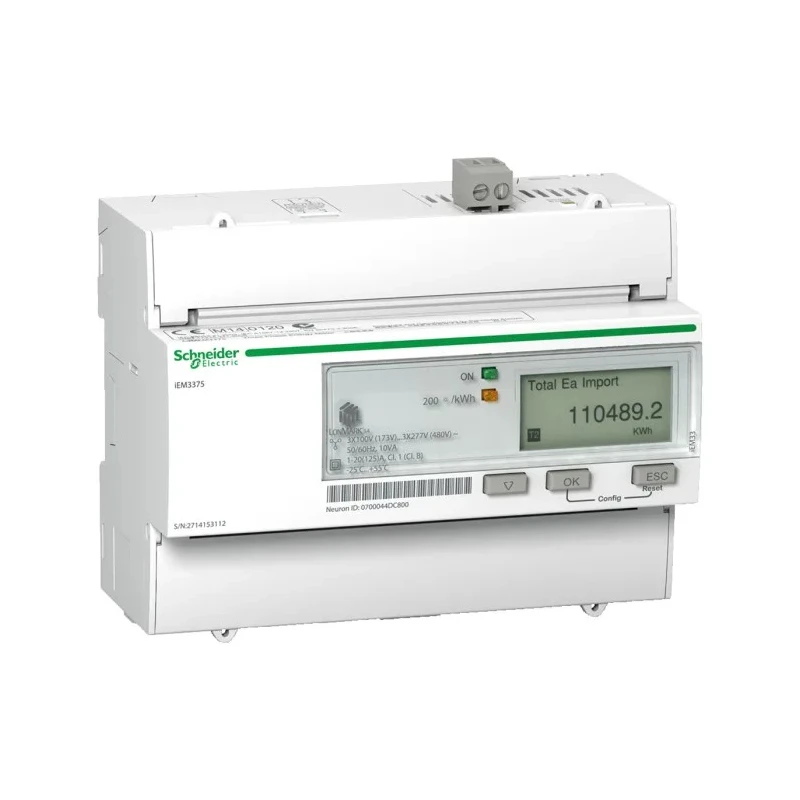

Schneider Electric 3 Phase Electronic LCD Energy Meter Acti9 iEM Series A9MEM3375

Schneider Electric A9MEM3375 Electronic Energy Meter from the Acti9 iEM Series is designed for three-phase energy measurement with enhanced accuracy and functionality. Featuring a clear LCD display with 9 digits and 85mm digit height, it provides reliable, real-time energy data crucial for industrial and commercial applications.

Compliant with IEC, EN, and UL standards, this meter delivers Class 1 accuracy for active energy measurement and Class B for reactive energy, ensuring billing precision and operational reliability.

The compact design measures 103.2mm (height) x 126mm (width) x 69.3mm (depth) and mounts easily on DIN rails with secure clipping, optimizing space usage in modular enclosures.

Its internal clock records date and time data, saving up to 48 hours during power outages and enabling multi-tariff billing via digital inputs or the internal clock. This feature enhances flexibility in energy cost management and tenant sub-billing.

Operating across a temperature range from -25°C to 55°C, this meter is robust enough for various industrial environments. It is also equipped to deliver full four-quadrant measurement of active and reactive energy, supporting detailed energy consumption and generation analysis.

Applications include utility bill verification, sub-billing for tenants, energy aggregation, and allocation by area or time period within facilities.

The meter complies with CE, cULus, EN 50470-3, IEC 60529, IEC 61010, IEC 61557-12, IEC 62053-21, IEC 62053-23, MID EN 50470-1 and EN 50470-3, and UL 61010-1 standards, ensuring broad regulatory acceptance and safety.

For users seeking precise energy control and monitoring solutions, the Schneider Electric A9MEM3375 is an advanced option that balances accuracy, durability, and operational flexibility.

High-contrast LCD with 9 digits and large digit height for readability. Class 1 accuracy for active energy measurement per IEC standards. Compact DIN rail mounting with secure dual-clip fitting. Internal clock with power outage data retention and multi-tariff support.

Wide operating temperature range from -25°C to 55°C for diverse environments. Compliance with multiple international standards for safety and performance. Measurement range up to 125 A suitable for typical industrial loads.

Supports applications including bill verification, sub-billing, and energy aggregation. Manufactured in China, ensuring consistency and quality control. Explore further Schneider Electric Energy Meters and automation solutions on EnvMart for comprehensive industrial energy management.
