Digital Process ORP Probe HI2014-2810 Gold, Ceramic, PT100, PVDF, 10m | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI2000 Series Digital Process ORP Probes-Gold-Ceramic-10m (32.8')

Name: Hanna HI2000 Series Digital Process ORP Probes-Gold-Ceramic-10m (32.8')
Brand: Hanna
SKU: 72337
Price: 619 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	±2000 mV
Body Material	PVDF
Environment	-5 to 100 °C (23 to 212 °F)
Outer Diameter	22.5 mm
Model	HI2014-2810
Cable Length	10 m
Temperature Sensor	Pt100
Connector Type	Direct wire connection
Junction Type/Flow Rate	Double junction

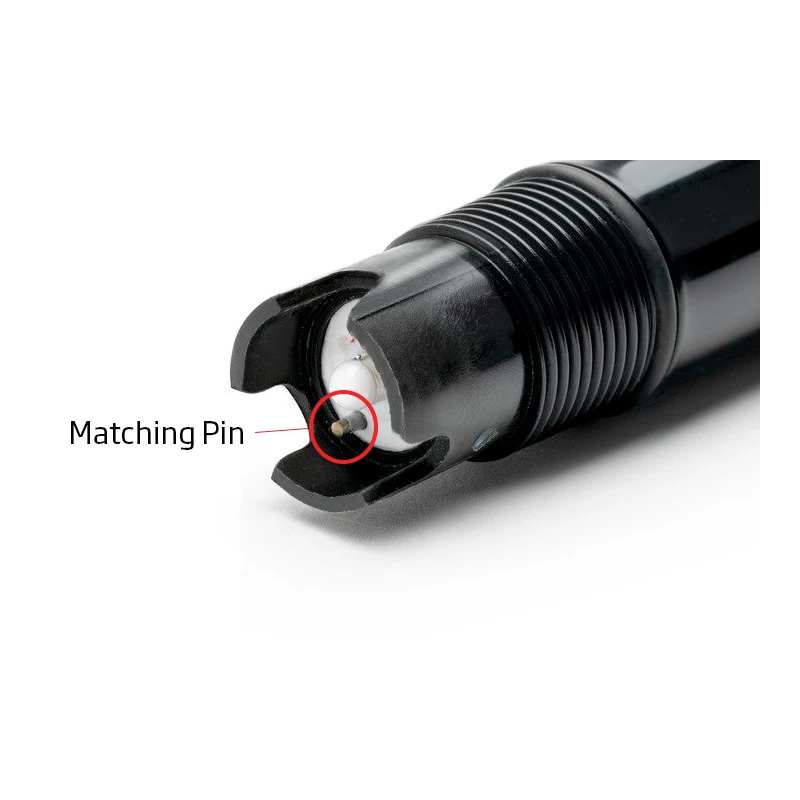

Matching Pin	yes
Max Pressure	6 bar (87 psi)
Probe type	Digital ORP Probe
Body Length	140 mm
Sensor Material	Gold
Electrolyte	Polymer
Product Condition	New
MPN	HI2014-2810
Reference Junction	Double, Ceramic

Key Features

Digital Process ORP Probe HI2014-2810 for industrial monitoring and control applications, featuring a gold sensor, double ceramic junction, built-in PT100 temperature sensor, and a robust PVDF body with 10m direct wire connection.

Designed for industrial ORP measurement and process control applications.
Double junction with standard ceramic for improved chemical resistance.
Gold sensor material for high stability and accuracy in diverse environments.
Built-in PT100 temperature sensor for automatic thermal compensation.
PVDF chemically resistant body with 3/4" NPT threads for easy in-line or submersion mounting.

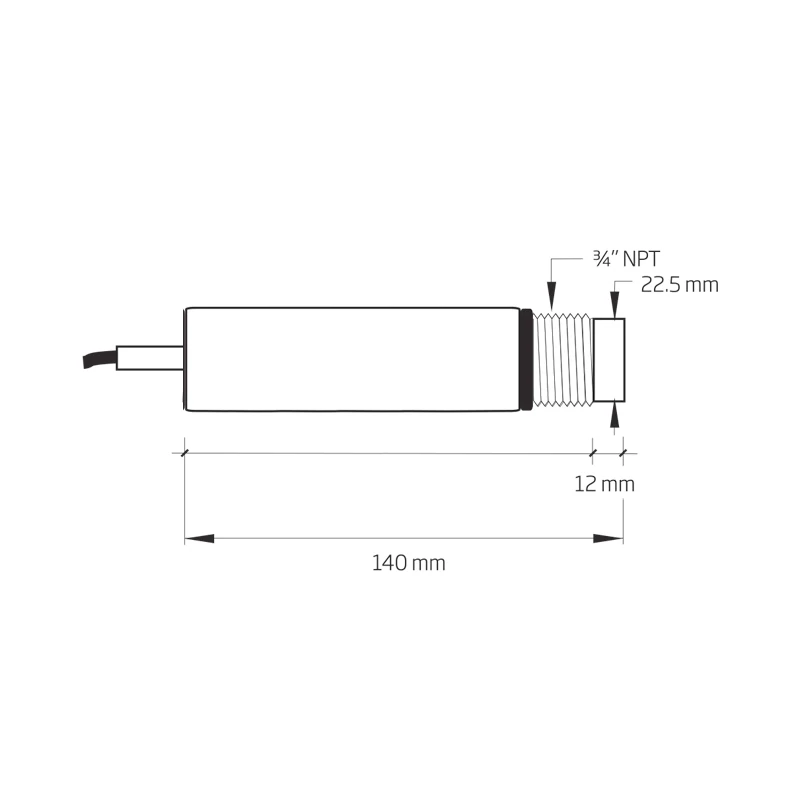

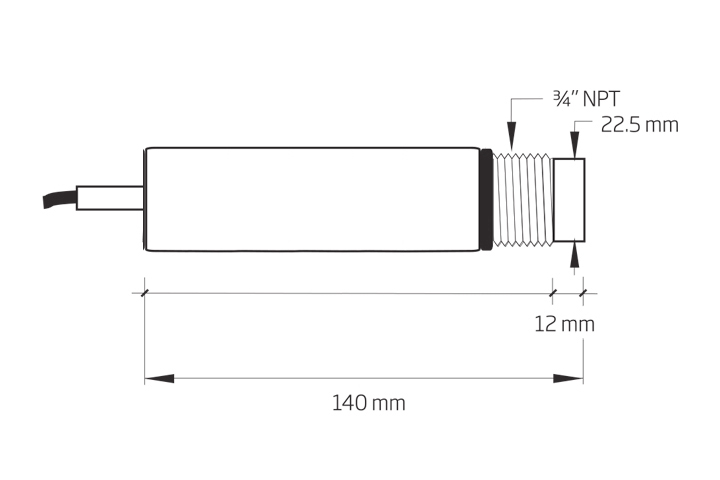

Overall probe length 140 mm and 22.5 mm outer diameter for standard fittings.
Direct digital RS485 output for seamless integration with controllers like HI510.
Measurement range of ±2000 mV and works up to 6 bar (87 psi) pressure.
Suitable for operating temperatures from -5°C to 100°C (23°F to 212°F).
Polymer type electrolyte for long sensor service life and stability.

Product Description

The Digital Process ORP Probe HI2014-2810 is engineered for high-performance industrial monitoring and control in water treatment, chemical processing, and environmental applications. This probe features a gold sensor and double ceramic junction, enhancing measurement stability and minimizing reference contamination in highly demanding environments.

Its chemically resistant PVDF body with integrated 3/4" NPT threading allows easy and secure insertion or submersion mounting. The built-in PT100 temperature sensor delivers precise temperature compensation, ensuring accurate ORP readings across a -5 to 100°C temperature range. With a direct wire digital RS485 output, this probe guarantees robust data transmission and compatibility with the HI510 Universal Process Controller as well as other process instrumentation supporting RS485.

Gold sensor construction offers superior accuracy and resistance to fouling even in challenging chemical environments.
Double ceramic reference junction provides dependable operation and low drift in continual monitoring applications.
Operates effectively up to 6 bar (87 psi) and across a wide temperature range for versatile industrial uses.
Rugged PVDF body resists chemical attack, ensuring long probe life even under aggressive conditions.
The 10m cable allows flexible installation, supporting diverse process setups.

This ORP probe is ideal for water treatment plants, industrial automation systems, chemical manufacturing, and environmental monitoring. Its advanced construction and digital communication simplify integration into modern PLC-based process control networks.

Browse EnvMart for more industrial-grade pH/ORP sensors, process probes, and environmental instrumentation solutions.
