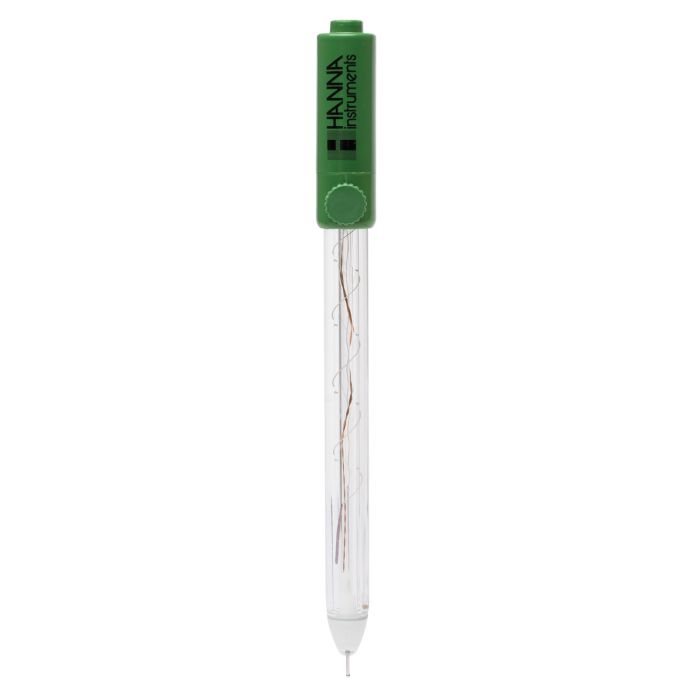

Hanna Glass Body ORP Electrode with DIN Connector - HI3618D
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | 1 Pc Glass Body ORP Electrode HI3618D with DIN Connector |
| Measurement Range | ORP ±2000 mV |
| Brand | Hanna |
| Body Material | glass |
| Outer Diameter | 12 mm |
| Model | HI3618D |
| Temperature Sensor | yes |
| Max. Pressure | 0.1 bar |
| Cable | 5-pole, 1 m |
| Connector Type | DIN |
| Reference Cell Type | Single, Ag/AgCl |
| Tip / Shape | Platinum pin |
| Temperature Operating Range | -5 to 70 °C |
| Amplifier | yes |
| Recommended Use | Laboratory, general purpose |
| Refill Electrolyte | 3.5M KCl + AgCl |
| Junction Type | Ceramic, single |
| Product Condition | New |
| MPN | HI3618D |
| Body Length / Overall Length | 120 mm / 175.5 mm |
| Junction Flow Rate | 15–20 µL/h |
| Sensing Pin | Platinum |
Key Features
Hanna HI3618D Glass Body ORP Electrode with DIN Connector is designed for precise laboratory ORP measurements and features a platinum sensing pin and built-in temperature sensor.
- Glass body ensures chemical durability and easy cleaning.
- Refillable single junction design for reliable measurements and prolonged electrode life.

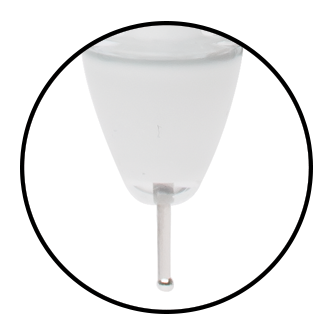

- Platinum sensing pin provides accurate ORP readings in a wide range of samples.
- Built-in temperature sensor improves measurement consistency by compensating for thermal variations.
- DIN connector provides fast, secure, and hassle-free installation to compatible meters.
- Suitable for use in laboratory and general water quality analysis applications.
- Operates over a broad temperature range (-5 to 70°C) and accepts up to 0.1 bar pressure.
- Refill electrolyte solution: 3.5M KCl + AgCl, ensuring optimal electrode performance.
- Body dimensions: 120 mm length, 12 mm diameter with 1 m cable for flexible operation.
- ORP measurement range: ±2000 mV for a diverse array of laboratory applications.
Product Description
The Hanna HI3618D Glass Body ORP Electrode with DIN Connector is a high-precision, laboratory-grade electrode engineered for general ORP (Oxidation Reduction Potential) and water quality testing. Featuring a refillable, single-junction design with a robust glass body, this electrode delivers enduring chemical resistance and ensures long-term performance in demanding laboratory environments.
Equipped with a platinum sensing pin for excellent measurement accuracy, the HI3618D also incorporates a built-in temperature sensor for automatic compensation during ORP readings. The single ceramic junction promotes a stable reference, while the DIN connector enables swift, tool-free connectivity to compatible instruments.
- Glass body construction offers chemical and thermal resilience needed in laboratory settings.
- Refillable single junction extends lifespan and supports cost efficiency by allowing fresh electrolyte replenishment.
- Platinum pin sensing element ensures high-sensitivity and accurate readings for a variety of laboratory solutions.
- Enhanced temperature compensation enabled by the integrated sensor supports reliable, repeatable results.
- ORP measurement range up to ±2000 mV extends application versatility in environmental, water treatment, and industrial quality control workflows.
- Recommended for laboratory and general water quality analysis tasks in research, industrial, and educational laboratories.
Physical specifications include a 120 mm sensor body length, 12 mm diameter, a 1 metre, 5-pole connecting cable, and maximum pressure tolerance of 0.1 bar. The tip is designed with a platinum pin for optimum ORP response, and the refill solution required is 3.5M KCl + AgCl. The electrode operates effectively at temperatures between -5°C and 70°C.
Package Contents: 1 Pc Glass Body ORP Electrode HI3618D with DIN Connector, pre-filled, with cable and instructions.
Typical industrial uses: laboratory analysis, water treatment, environmental monitoring, education, and quality control.
Browse more ORP electrodes, sensors, and water analysis products in the Sensors category on EnvMart.
Frequently Asked Questions
The Hanna HI3618D electrode can tolerate a maximum pressure of 0.1 bar, making it suitable for various laboratory applications.
Yes, the HI3618D is refillable and requires a 3.5M KCl + AgCl electrolyte solution to maintain optimal performance and prolong its lifespan.
The HI3618D operates effectively within a temperature range of -5°C to 70°C, allowing for versatile laboratory use.
The built-in temperature sensor compensates for thermal variations during readings, ensuring more accurate and consistent ORP measurements.
The HI3618D is designed for laboratory analysis, water treatment, environmental monitoring, education, and quality control tasks.
The HI3618D has an ORP measurement range of ±2000 mV, making it versatile for a wide array of laboratory applications.
The HI3618D comes with a 1-meter connecting cable, providing flexibility for various setups in the laboratory.
The electrode features a platinum sensing pin, which offers high sensitivity and accuracy for reliable ORP readings across different samples.
Yes, the DIN connector allows for fast, secure, and tool-free installation to compatible meters, simplifying the setup process.
The HI3618D features a durable glass body, ensuring chemical resistance and ease of cleaning for laboratory environments.
