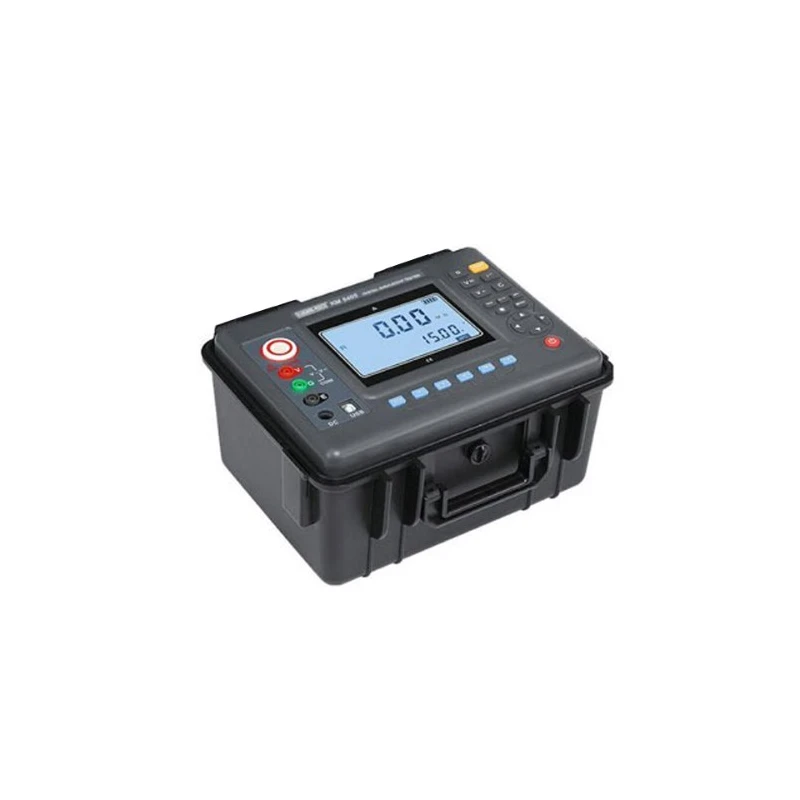

Kusam Meco In 15kv Insulation Resistance Tester KM5415
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 5415 IN 15KV Insulation Resistance Tester / High Voltage Bar / High Voltage Test Line / USB Communication LineUSB / Charger / Software CD / Instruction Manuals / Instruments Box |
| Accuracy | ±(3%Rdg+5dgt) |
| DC Voltage Range | 0.1–1000V |
| AC Voltage Range | 0.1–750V |
| Capacitance Range | 10nF–50mF |
| Display | 4-Bit LCD |
| Brand | Kusam Meco |
| Dimension | 240(L)×188(W)×85(H)mm |
| Power | 12V Rechargeable Battery |
| Function | Insulation Resistance Tester |
| Model | KM5415 |
| Weight | Approx .2720g |
| Safety | IEC61010-1/IEC61557-1/IEC60529(IP54)/CAT IV 600V |
| Backlight | Controllable Gray Screen |
| Data Storage | 500 groups |
| DC Current range | 0.01nA–6mA |
| USB interface | Yes |
| Rated Voltage | 500V–15KV |
| Insulation Resistance Range | 0.01MΩ–50TΩ |
Key Features
- Voltage levels: 500V, 1000V, 2500V, 5000V, 10kV, 15kV
- Measures resistance up to 50TΩ with 0.01MΩ resolution
- ±3%rdg ±5dgt accuracy for precision results
- Short-circuit current ≥6mA for reliable insulation tests
- Durable and safe for industrial high-voltage testing
Product Description
The Kusam Meco KM5415 Digital Insulation Resistance Tester is designed for high-voltage diagnostics with precision and durability. It offers test voltages up to 15kV and measures insulation resistance up to 50TΩ. Features include PI/DAR measurement, ramp test, data storage, and USB connectivity for easy reporting. Built for rugged industrial use, it ensures operator safety through auto-discharge and overload protection. Ideal for transformers, generators, motors, and switchgear testing, this instrument provides consistent accuracy in high-voltage environments.
Available on EnvMart, these 15 kV Insulation Testers measure up to 50 TΩ with PI and DAR functions. Kusam Meco Devices provide high-accuracy testing for heavy-duty electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM5415 can measure insulation resistance up to 50 TΩ.
The Kusam Meco KM5415 supports test voltages of 500V, 1000V, 2500V, 5000V, 10kV, and 15kV.
The accuracy of the Kusam Meco KM5415 is ±(3% reading + 5 digits).
The Kusam Meco KM5415 complies with IEC61010-1, IEC61557-1, and IEC60529 (IP54), and is rated for CAT IV 600V.
The dimensions of the Kusam Meco KM5415 are 240(L) × 188(W) × 85(H) mm, and it weighs approximately 2720 g.
The Kusam Meco KM5415 operates on a 12V rechargeable battery.
Yes, the Kusam Meco KM5415 can store up to 500 groups of data.
The Kusam Meco KM5415 features a 4-bit LCD display with controllable gray screen backlight.
The package includes the Kusam Meco KM5415 Insulation Resistance Tester, high voltage bar, high voltage test line, USB communication line, charger, software CD, instruction manuals, and an instrument box.
The short-circuit current of the Kusam Meco KM5415 is ≥6mA.
The Kusam Meco KM5415 can measure capacitance in the range of 10nF to 50mF.
The Kusam Meco KM5415 has a DC voltage range of 0.1–1000V and an AC voltage range of 0.1–750V.
