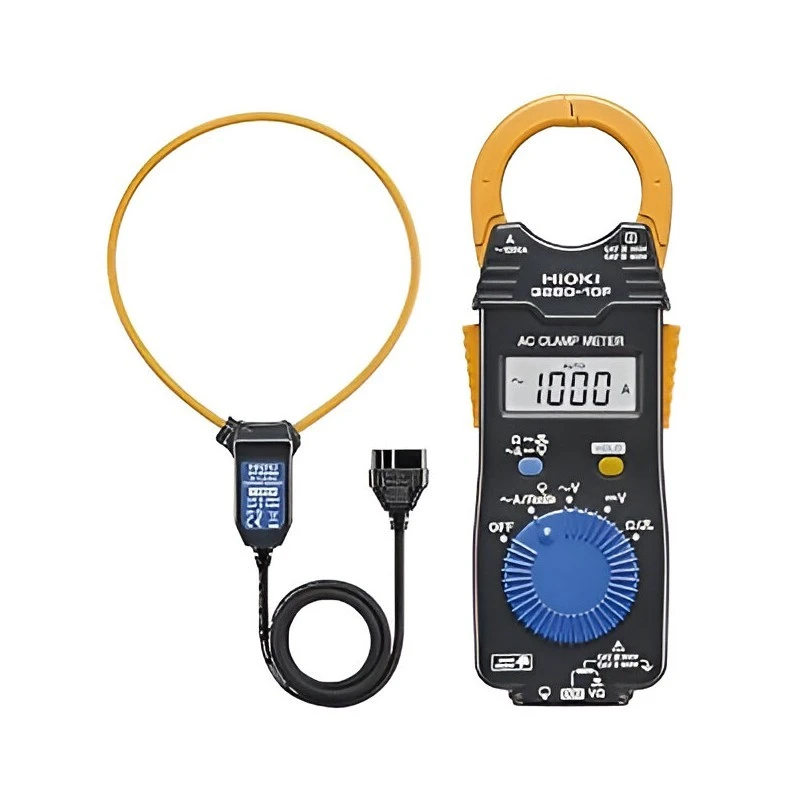

Hioki AC Clamp Meter Set 3280-70F
Specifications
| Country of Origin | Japan |
|---|---|
| DC Voltage Range | 419.9 mV – 600 V / 5 ranges / ±1.0% rdg. ±3 dgt. |
| AC Voltage Range | 4.199 – 600 V / 4 ranges (45 – 500 Hz / Average Rectified) / ±1.8% rdg. ±7 dgt. |
| Resistance Range | 419.9 Ω – 41.99 MΩ / 6 ranges / ±2.0% rdg. ±4 dgt. |
| Display | LCD / max. 4199 digits / Refresh rate - 400 ms |
| Brand | HIOKI |
| Power Supply | CR2032 Lithium Battery ×1 / Continuous Use - 120 Hours |
| Dimensions | 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D |
| Model | 3280-70F |
| Weight | 100 g |
| Environmental Protection | IP40 (Dustproof & Waterproof while in storage) |
| Included Accessories | Carrying case / test lead / coin cell battery (CR2032) / instruction manual. |
| AC Current range | 41.99 – 1000 A / 3 ranges (50 – 60 Hz / Average Rectified) / ±1.5% rdg. ±5 dgt. |
| Core jaw diameter | φ33 mm (1.30 in) |
| Other functions | Continuity Check (Buzzer at 50 Ω ±40 Ω or less) / Data Hold / Auto Power Save / Drop-Proof (1m) |
Key Features
- Measure the fundamental waveform component using the average rectified method
- Expanded -25°C to 65°C operating temperature range

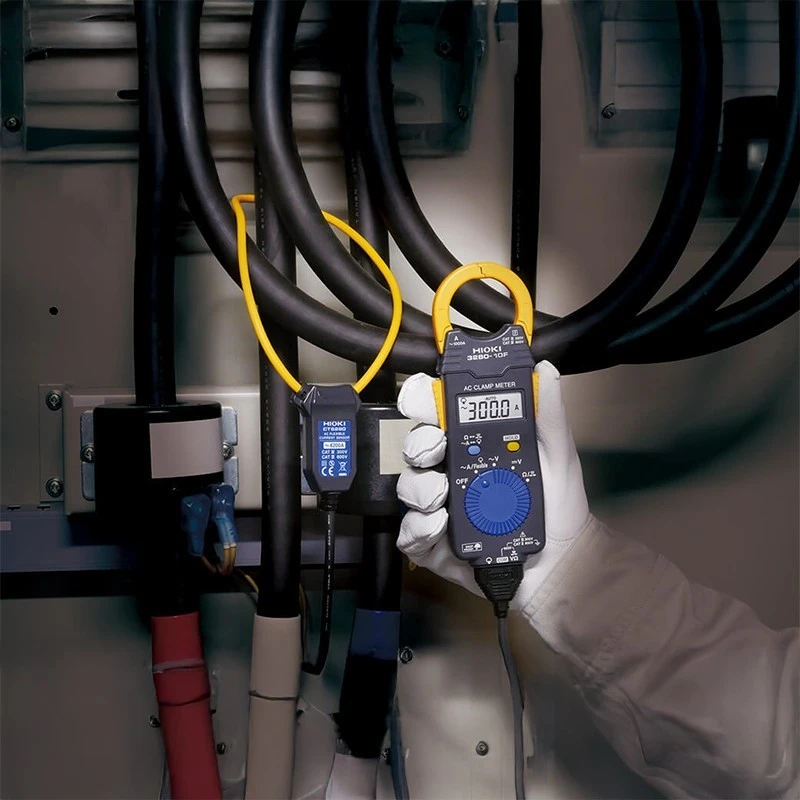

- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
- Drop proof design withstands drop from a height of 1 meter
Product Description
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-70F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
Available on EnvMart, these Clamp Meters are designed for precise measurement of electrical current and voltage in circuits. Hioki Clamp Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC currents up to 1000 A across three ranges (41.99 – 1000 A) with an accuracy of ±1.5% reading ±5 digits.
The Hioki AC Clamp Meter Set 3280-70F operates within a temperature range of -25°C to 65°C.
It has dimensions of 57 mm (W) × 175 mm (H) × 16 mm (D) and weighs 100 g.
The AC voltage range for this unit is from 4.199 to 600 V across four ranges (45 – 500 Hz) with an accuracy of ±1.8% reading ±7 digits.
Included accessories are a carrying case, test lead, coin cell battery (CR2032), and an instruction manual.
The resistance range is from 419.9 Ω to 41.99 MΩ across six ranges with an accuracy of ±2.0% reading ±4 digits.
It features an LCD display with a maximum resolution of 4199 digits and a refresh rate of 400 ms.
This model is powered by a CR2032 lithium battery, which allows for continuous use of up to 120 hours.
Yes, it has an IP40 rating, which indicates it is dustproof and waterproof while in storage.
It includes functions such as continuity check with a buzzer, data hold, auto power save, and is drop-proof from a height of 1 meter.
The core jaw diameter is φ33 mm (1.30 in), allowing it to clamp around thick or paired wires.
The DC voltage range is from 419.9 mV to 600 V across five ranges with an accuracy of ±1.0% reading ±3 digits.
