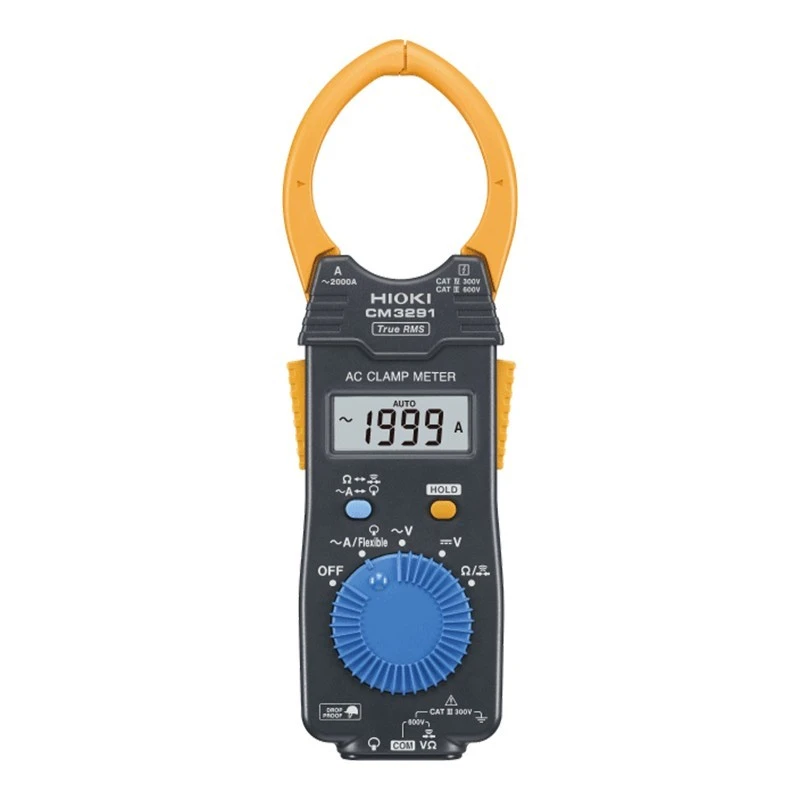

Hioki AC Clamp Meter CM3291
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | HIOKI |
| Power | CR2032 Lithium Battery / 70 hr Continuous Use |
| Dimensions | 57 × 198 × 16 mm |
| Model | CM3291 |

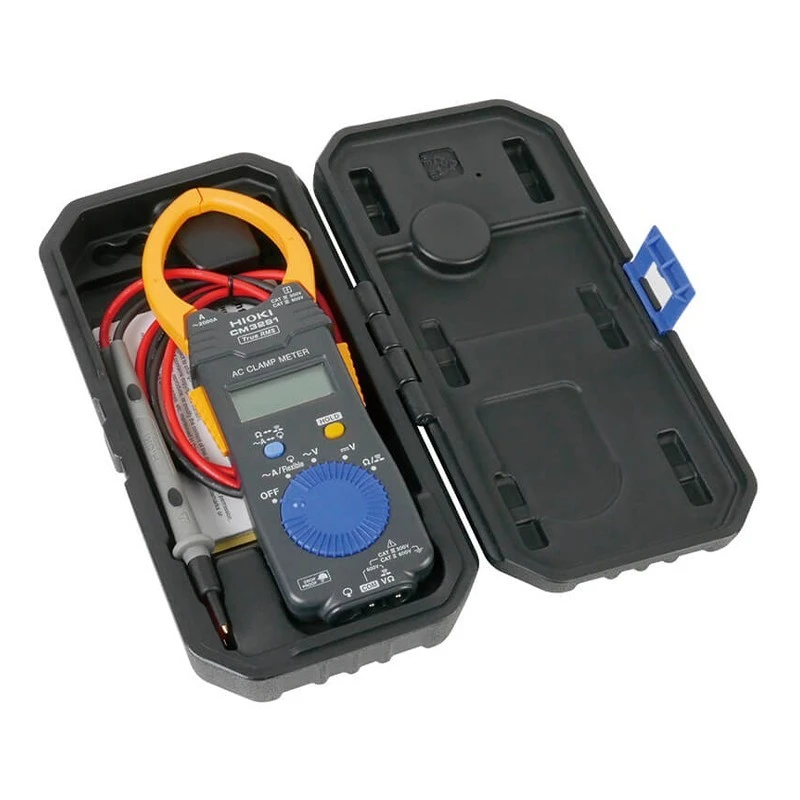

| Accessories | Carrying Case / Test Lead / Battery / Manual / Download Guide |
| Weight | 103 g |
| AC Voltage (V) | 4.2 – 600 V (45 – 500 Hz / True RMS) |
| AC Current | 42 – 2000 A (40 Hz – 1 kHz / True RMS) |
| Functions | Continuity Check / Data Hold / Auto Power Save / 1m Drop-Proof |
| Resistance | 420 Ω – 42 MΩ (±2.0% rdg. ±4 dgt.) |
| DC Voltage (V) | 420 mV – 600 V (±1.0% rdg. ±3 dgt.) |
| Crest factor | 2.5 (≤2500 counts) / 1.5 (2000 A range) |
| Jaw Size | φ46 mm (1.81 in) / 65 × 13 mm |
Key Features
- True RMS measurement for accurate readings of distorted waveforms, like those from inverters and switching power supplies.
- Pocket clamp meter compatible with optional flexible current sensors for measuring complex wiring.
- Functions as both a clamp meter and card tester, offering current, voltage, continuity, and resistance measurements.
- Rugged, portable design with a wide operating temperature range (-25°C to 65°C) and 1m drop resistance.
- Includes a sturdy and lightweight hard case for storing all accessories.
Product Description

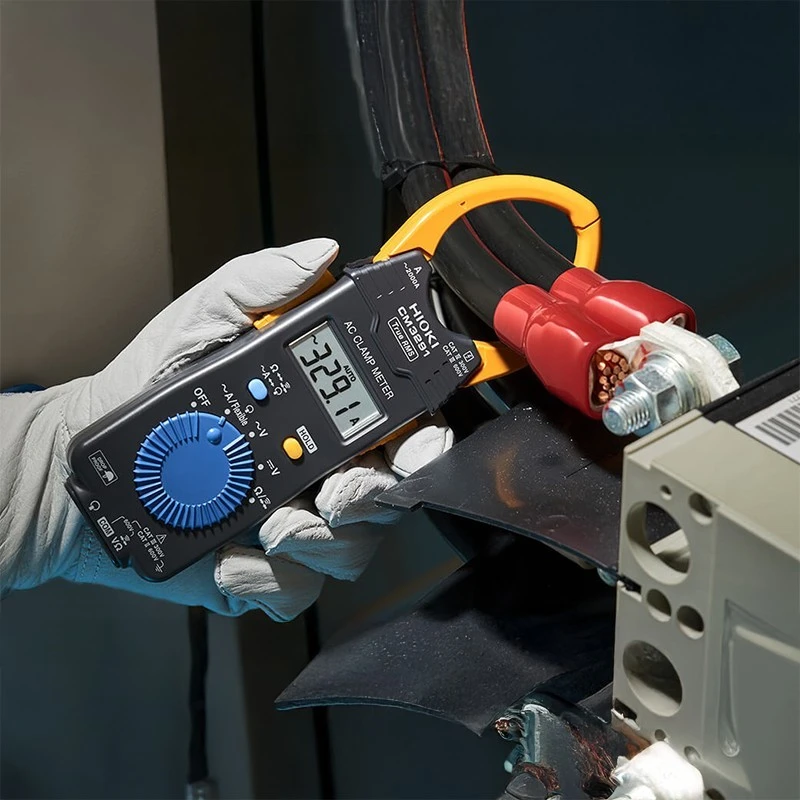

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM3291 is a true RMS rectified 2000 A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
Available on EnvMart, these Clamp Meters are designed for precise measurement of electrical current and voltage in circuits. Hioki Clamp Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hioki CM3291 measures AC current from 42 to 2000 A within a frequency range of 40 Hz to 1 kHz using True RMS technology.
This model operates effectively within a temperature range of -25°C to 65°C.
It can perform measurements for AC current, AC voltage, resistance, and continuity checks.
The maximum AC voltage measurement is 600 V, with a frequency range of 45 to 500 Hz using True RMS.
Included accessories are a carrying case, test lead, battery, manual, and a download guide.
This clamp meter weighs 103 grams.
The resistance measurement range is from 420 Ω to 42 MΩ, with an accuracy of ±2.0% reading ±4 digits.
The jaw size of this model is φ46 mm (1.81 inches) and 65 × 13 mm.
It is powered by a CR2032 lithium battery, which allows for 70 hours of continuous use.
Yes, it features a 1m drop-proof design to enhance durability during use.
The crest factor is 2.5 for counts up to 2500 and 1.5 for the 2000 A range.
Yes, it can measure DC voltage ranging from 420 mV to 600 V, with an accuracy of ±1.0% reading ±3 digits.
