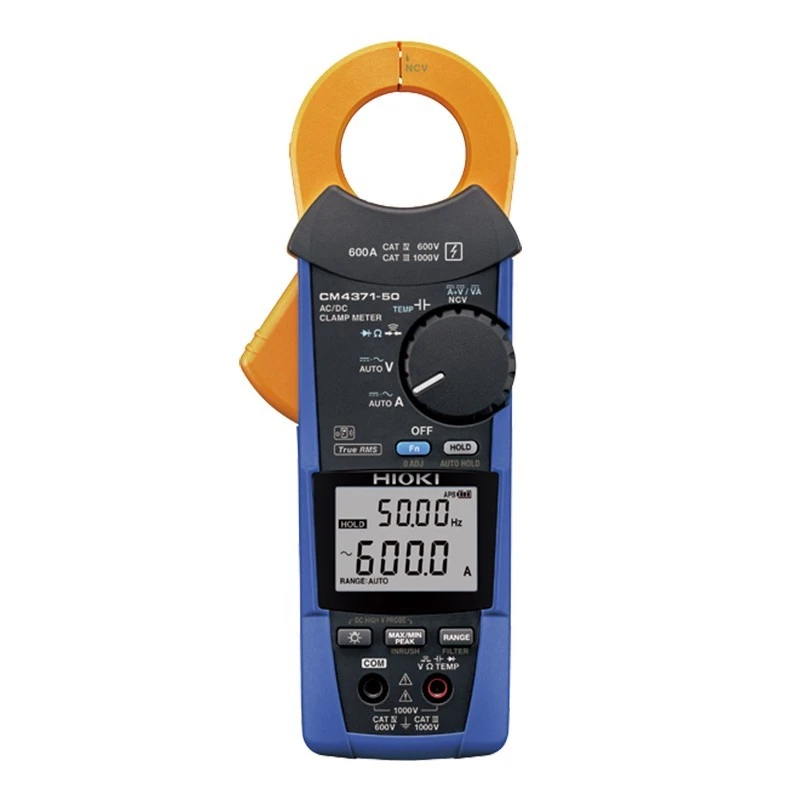

Hioki CM4371-50 AC/DC Clamp Meter image-1

Free Delivery in India | Lowest Global Shipping Charges

Hioki AC/DC Clamp Meter CM4371-50

Name: Hioki AC/DC Clamp Meter CM4371-50
Brand: HIOKI
SKU: ADECN
Price: 326.43 USD
Availability: InStock



SKU ADECN Category Clamp Meters Brand HIOKI

Specifications

Country of Origin	Japan
Frequency	9.999 Hz – 999.9 Hz / ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)
Brand	HIOKI
Power Supply	LR03 Alkaline battery 2
Dimensions	65 × 215 × 35 mm
Protection Type	IP20 (Voltage measurement in dry conditions / closed jaw) / IP54 (Storage)
Model	CM4371-50
Accessories	Test Lead / Carrying Case / Batteries / Manuals
Weight	340 g
AC Voltage (V)	6.000 V – 1000 V / True RMS / ±0.9% rdg. ±0.003 V (at 6 V)
AC Current	20.00 A / 600.0 A (10 Hz – 1 kHz / True RMS) / ±1.3% rdg. ±0.08 A (at 20 A)
Resistance	600.0 Ω – 6.000 MΩ / ±0.7% rdg. ±0.5 Ω (at 600 Ω)
DC Voltage (V)	600.0 mV – 1000 V (With P2010 - 600.0 V – 2000 V)
JAW Diameter	φ33 mm / Jaw - 69 mm W × 14 mm D
Capacitance	1.000 μF – 1000 μF / ±1.9% rdg. ±0.005 μF (at 1 μF)
DC Current	20.00 A / 600.0 A / ±1.3% rdg. ±0.08 A (20 A range)
Crest factor	20.00 A range - 7.5 / 600.0 A range - ≤3
Voltage detection	Hi - 40 V – 600 V AC / Lo - 80 V – 600 V AC / 50/60 Hz
Temperature (K)	-40.0 to 400.0 ˚C / ±0.5% rdg. ±3.0 ˚C + probe accuracy
Harmonics	Voltage/Current harmonic levels up to 30th (Z3210 installed)
DC+AC Voltage (V)	6.000 V – 1000 V / ±1.0% rdg. ±0.013 V (at 6 V)
DC+AC Current	20.00 A / 600.0 A (10 Hz – 1 kHz / True RMS) / ±1.3% rdg. ±0.13 A (at 20 A)

Key Features

Measure DC voltages of up to 2000 V for open voltage inspections of solar panels
Simultaneously measure inrush current in RMS and crest values
Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file
Harmonic analysis from 1st to 30th order with our free app GENNECT Cross
Automatic AC/DC function helps boost work efficiency

Product Description

The Hioki CM4371-50 AC/DC Clamp Meter is a robust and versatile tool designed for professionals working with high-voltage electrical systems. Key features include:

Safety Ratings: CAT IV 600 V and CAT III 1000 V for safe measurement in demanding environments. When used with the P2010 probe, it achieves CAT III 2000 V and CAT IV 1000 V ratings.
High Voltage DC Measurement: Capable of measuring DC voltages up to 2000 V, making it ideal for open voltage inspections of solar panels.
Inrush Current Measurement: Simultaneously measures inrush current in RMS and crest values for accurate analysis.
Data Transfer and Analysis: Seamlessly transfers measurement data to smartphones or tablets via the GENNECT Cross app, or exports to Excel files. It also provides harmonic analysis up to the 30th order through the app.
Automatic AC/DC Function: Streamlines work efficiency by automatically detecting and switching between AC and DC measurements.
Designed for High Voltage PV Applications: The CAT III rating is essential for the safe voltage inspections of high voltage Photovoltaic power generation facilities.

Available on EnvMart, these Clamp Meters are designed for precise measurement of electrical current and voltage in circuits. Hioki Clamp Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.
