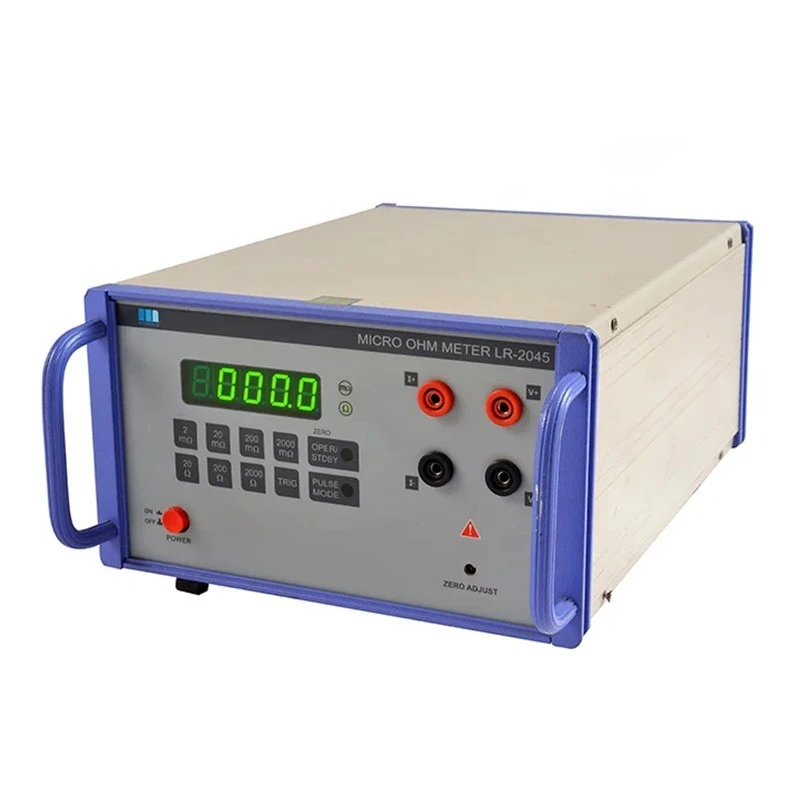

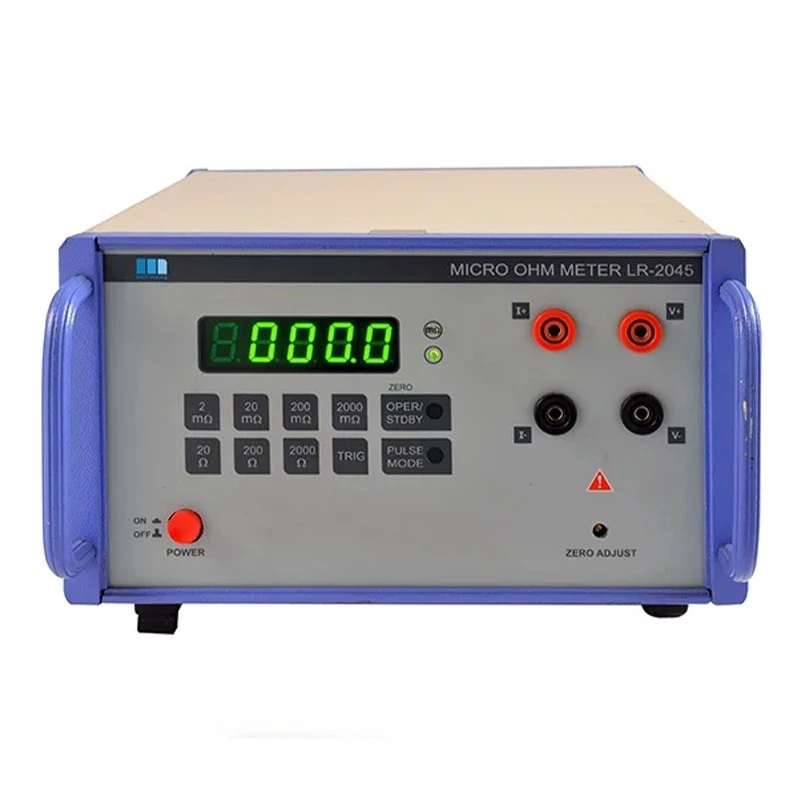

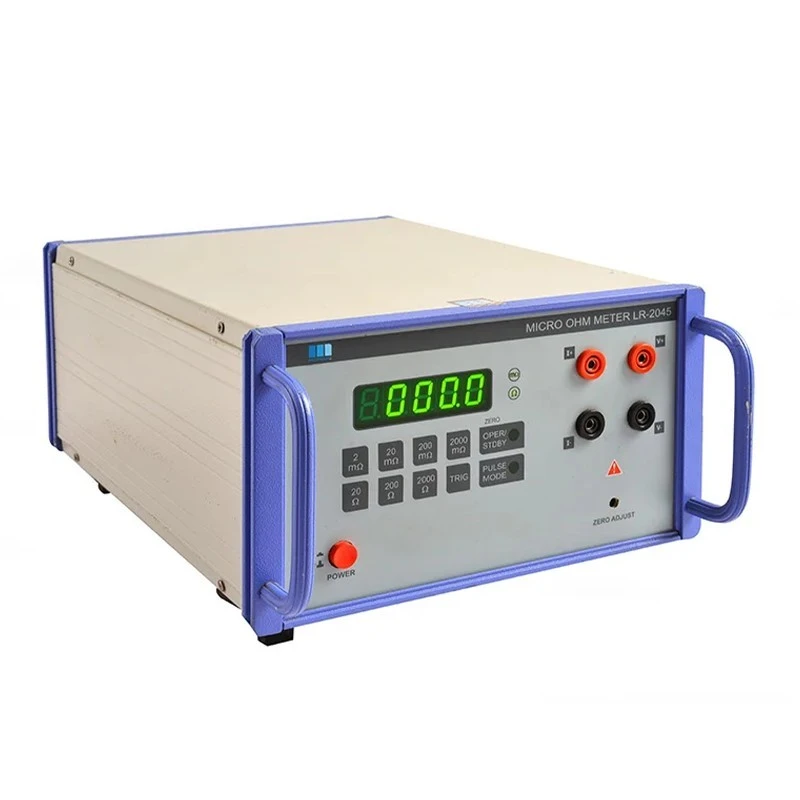

Motwane LR-2045 Micro Ohm Meter
Specifications
| Country of Origin | India |
|---|---|
| Display | 4 ½ digit display |
| Brand | Motwane |
| Power Supply | 230 VAC ± 10% / 50Hz / single-phase |
| Net Weight | 3.2kg (Approx) |
| Model | LR-2045 |
| Overrange Indication | Blinking Zero Display |
| Dimensions (DxWxH) | 305 mm x 210 mm x 132 mm |
| Warm-up Time to Accuracy | 5 minutes max |
Key Features
- 4 ½ digits LED display
- Resolution of 0.1μΩ on 2mΩ range
- RS 232 PC interface.
- True four wire resistance measuring technique Eliminates lead resistance errors inherent in two wire measurement systems
- Pulse mode operation
Product Description
Motwane’s Digital Micro Ohmmeter- LR-2045 is capable of measuring very low resistances (as low as 0.1 μΩ) in micro ohms. This easy to use ohm meter has a 4½ digits LED display. LR-2045 intends to replace the Kelvin bridge and old technology micro ohmmeters to increase productivity, thus saving time. It works on the proven principle of the four wire measurements. The resistance measurement range of LR-2045 is from 2mΩ to 2kΩ with a minimum resolution of 0.1μΩ. The maximum DC current injection is 1A. The pulse mode operation is an additional feature along with the PC interface. The LR-2045 can be used for measuring the resistance of cables, PCB, Relay, LT bus bars, low capacity motors, welded joints, etc.
Application
Some of the more popular and most frequent uses of the micro-ohmmeter are in applications for:
- Cables
- Relays
- Bus Bars
- Electrodes
- Low rating motors & transformers
- Components
- PC Boards
- Contactors
- Shunts
- Weld Joints
Standard Accessories
- Test leads with GP kelvin clip
- RS 232
- Mains power cord
- Instruction manual
Optional Accessories
- 10 meters long test leads with heavy duty crocodile clip
- 10 meters long test leads with ‘C’ clamp.
- Test lead with heavy duty bond testing probe
Available on EnvMart, these Ohm Meters are designed for accurate resistance measurement in electrical circuits and components. Motwane Ohm Meters offer high precision and reliability, making them essential for electrical testing, maintenance, and quality control applications.
