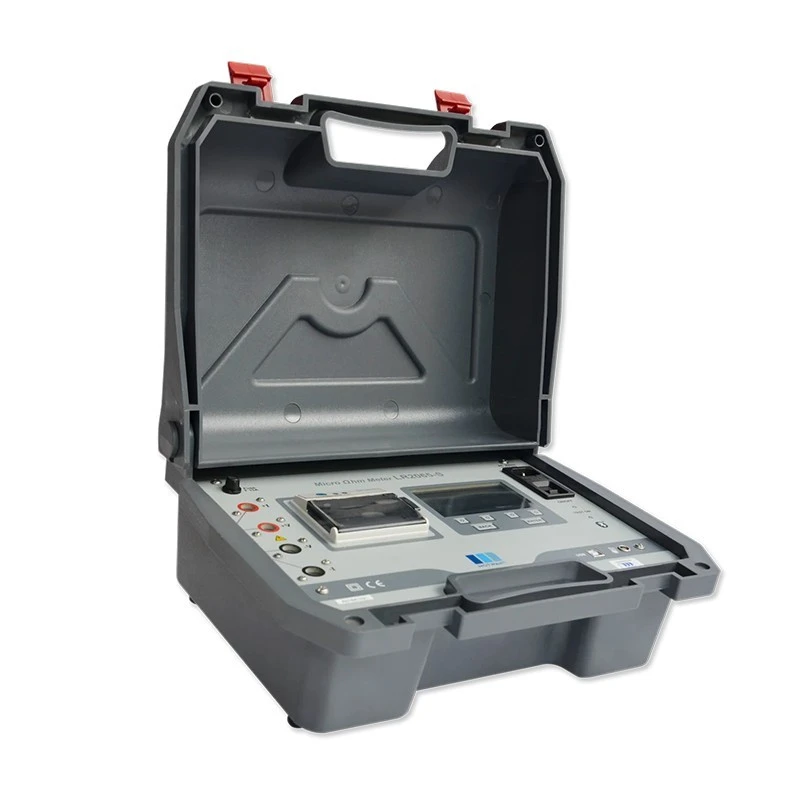

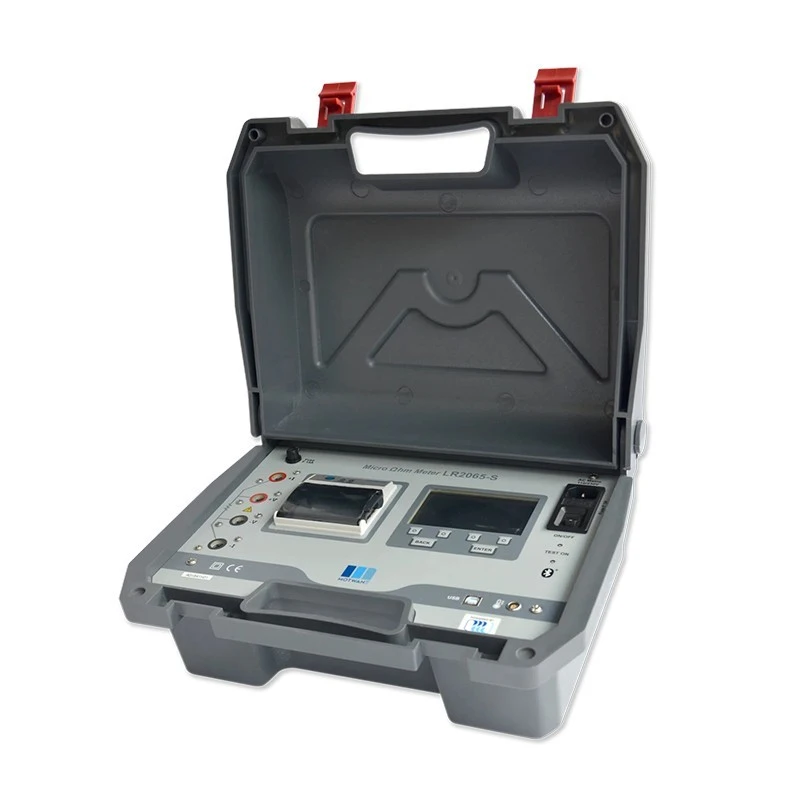

Motwane LR-2065S Micro-Ohm Meter
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | 95% RH at 40°C max. (Non-Condensing) |
| Brand | Motwane |
| Net Weight | 6.0 Kg Approx. |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 368 mm (L) x 283 mm (W) x 188 mm (H) |
| Storage Temperature | -10°C to 60°C |
| Model | LR-2065S |
| Printer | Built-in thermal printer |
| Safety Standards | EN 61010-1 |
| Mains Power Supply | 110/230 Volt AC / 50/60Hz |
| Battery power supply | Li-Ion Battery 14.8 V |
| PC Interface | Built-in Thermal Printer (Note - Likely a typo / should be USB) |
| EMC Standards | EN 61326-1 |
| Report Storage | 1000 Reports |
| Test Current Injection | 10A / 1A / 100mA / 10mA / 1mA / 100μA |
| Test ON Alert | BEEP |
| Measurement Category | CAT II (1000V) / CAT III (600V) Reinforced insulation |
| Temperature Correction | Manual entry or Temperature Probe |
| Temperature Channel | 1 |
Key Features
- 3” Color TFT display with backlit
- Resolution 0.1 μΩ on 2 mΩ range
- Best Measurement Accuracy of +0.03 %
- Mains cum Battery operated.
- High measurement current (10A) for faster settling of measured values on low resistance.
- True 4 wire resistance measuring technique
- Pulse Mode, Auto Hold Operation.
- Bluetooth interface and cloud connectivity through
- Motware app
- Inbuilt thermal paper printer
- Low Battery indication to prevent deep discharge of internal recharging battery.
- Temperature Measurement & Correction
Product Description
Motwane’s Digital micro ohm meter LR2065-S with maximum 10A DC current injection is useful for the measurement of very low resistance in micro Ω as low as 0.1μΩ. Mains cum rechargeable battery operated LR2065-S, works on the proven principle of 4-wire measurements. The LR 2065S is having 4.5 digit LCD display with resistance measurement range from 2mΩ to 20KΩ, with minimum resolution of 0.1μΩ. The pulse mode operation is an additional feature. The LR2065S can be used for measuring resistance of cables, wires, PCB Relays, LT bus-bar, Graphite electrode, Quality testing of resistive components, Low capacity motors etc.
Application:
High Precise micro ohmmeter used for measuring accurate low resistance with high accuracy, makes it a reliable tool for Quality Assurance, easy operation and also makes it a very handy for quick maintenance checks for process industries. Typical It is very useful in design, test, maintenance, QC/QA and production. Typical applications include the measurement of:
- Cables
- Components
- Relays
- PC Boards
- Bus Bars
- Contactors
- Low Rating motors & transformers
- Weld Joints
- Electrodes
Accessories:
- Test Lead set with Crocodile clip 2 meter: 1 Set
- Test Lead set with Kelvin clip 2 meter: 1 Set
- Mains Power Cord: 1 No
- Current Protected Fuse 15A: 1 No
- Mains Protected Fuse 1A: 1 No
- Thermal Paper roll: 1 No
- Instruction Manual: 1 No
- USB cable: 1 No
- Temperature measurement probe: 1 No
- Pen Drive for PC Software: 1 No
Available on EnvMart, these Ohm Meters are designed for accurate resistance measurement in electrical circuits and components. Motwane Ohm Meters offer high precision and reliability, making them essential for electrical testing, maintenance, and quality control applications.
