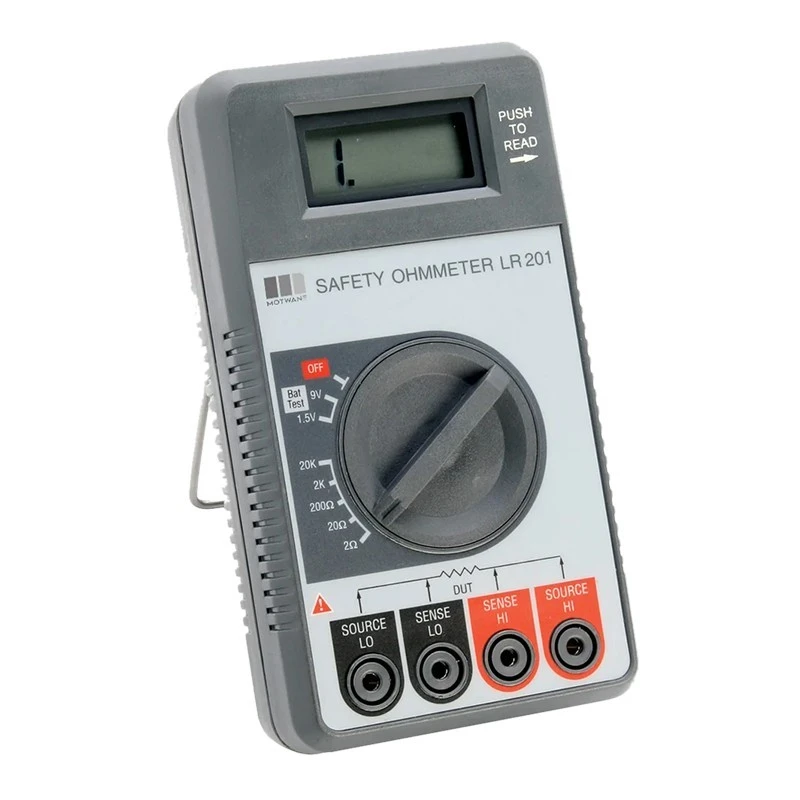

Motwane LR-201 Safety Ohm Meter
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 100mm (W) x 180mm (H) x 54 mm (D) Approx. |
| Storage Temperature | -20°C to 70°C |
| Humidity | Less than 90% RH |
| Model | LR-201 |
| Weight | Approx. 0.5 Kg |
| Temperature Coefficient | 200 ppm / °C |
| Overrange Indication | Display shows (1) with other digits blank |
Key Features
- 3½ Digit LED display.
- Resolution 1mΩ on 2mΩ range.
- Battery Operated. (9V cell, type 216, 1.5 V cell, Sony Lr44 or Equivalent).
- 4 Wire Measurements to avoid lead resistance.
- Fully protected against reversal of battery polarity & over loads.
- ‘PUSH TO READ’ switch facility
- Facility to check “LOBAT” for 9V & 1.5V batteries.
Product Description
The Motwane Model LR 201 is a 3½ digit LCD display & fully portable digital safety-ohm-meter, capable of measuring low resistance with 1 m-ohm resolution. It employs the proven 4-wire (4W) where fixed DC current is applied to DUT and voltage drop across the DUT is measured and displayed as proportional resistance reading. This method is used to eliminate the effect of lead resistance on the accuracy of measurement. It is a highly reliable, powerful performance & heavy duty instrument. It is a direct reading instrument leading to simple, speedy, and accurate measurements.
Applications:
- Cables
- Components
- Relays
- PC Boards
- Bus Bars
- Contactors
- Low rating motors & transformers
- Weld Joints
- Electrodes
Available on EnvMart, these Ohm Meters are designed for accurate resistance measurement in electrical circuits and components. Motwane Ohm Meters offer high precision and reliability, making them essential for electrical testing, maintenance, and quality control applications.
