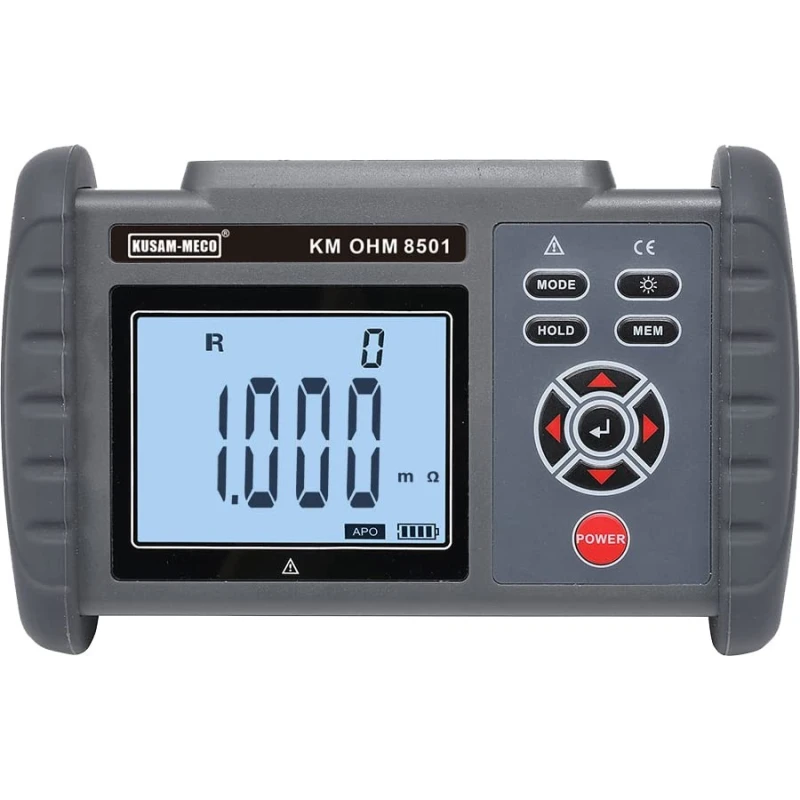

Kusam Meco Digital Dc Low Resistance Meter KMOHM8501
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM OHM 8501 DIGITAL DC LOW RESISTANCE METER |
| Power Consumption | Standby≈100mA/Backlight≈105mA |
| Brand | Kusam Meco |
| Power Supply | DC3.7V2000mAh |
| Power | ≤8W |
| Function | Digital Micro Ohmmeter |
| Model | KMOHM8501 |
| Weight | ≈1kg |
| EMC | IEC61010-4-3 Electromagnetic Field Less Than 1V/M |
| Safety Standard | IEC61010-1CATIII600V/Pollution Level2/JJG724-1991/JJG166-1993/DL-T967-2005 |
| LCD Size | 72×55mm |
| Overload Protection | Yes |
| Backlight | Controllable Gray/White Screen |
| Display Mode | LCD |
| Insulation resistance | Greater Than 10MΩ(500V) |
| Data Storage | 500groups With"FULL"Symbol |
| Storage Temp | -20°C~60°C Less Than 70%RH |
| Test Current | ≥1A |
| Detection method | Four-Wire Method Test |
| USB interface | Micro USB |
| Working Temp | -10°C~50°C Less Than 80%RH |
| Pressure Resistance | AC3700Vrms(Circuit-Case) |
| Auto Shut-down | After15minutes |
| Battery Voltage | Real-Time Display |
| Open Circuit Voltage | ≤4.2V |
| Instrument Size | 187×119×50mm |
| Communication Line | Micro USB Cable |
| Overflow Display | OL Symbol Display |
| Measure Time | 2times/Sec |
| Test Line Length | ≈60cm Red/Black 1pcs |
| Data Review | MR Symbol Display |
| Overload Protection Time | 0.0001s Between C1-C2/P1-P2 Ports |
Key Features
- Measures resistance from 0.001 mΩ to 300 kΩ with 1 mΩ resolution
- ± 0.1% full-scale accuracy for precise low-resistance testing
- Stores up to 500 measurement sets with USB data upload
- Rechargeable with built-in charging function
- Suitable for laboratory and production quality control
Product Description
The Kusam Meco KMOHM8501 Low Resistance Meter is designed for precise resistance measurement from 0.001mΩ to 300kΩ using four-wire testing for maximum accuracy. It features a large LCD display, overload protection, and storage for up to 500 readings. Ideal for measuring cables, coils, switches, and grounding systems, it ensures reliable readings in laboratory, manufacturing, and power industry environments. Compact, sturdy, and efficient, this device guarantees consistent performance and safety during all resistance testing tasks.
Available on EnvMart, these Low Resistance Meters deliver precise four-wire testing for cables, coils, and switches. Kusam Meco Instruments ensure safe, accurate, and stable DC resistance measurement for industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KMOHM8501 Low Resistance Meter measures resistance from 0.001 mΩ to 300 kΩ.
The KMOHM8501 has a full-scale accuracy of ± 0.1%.
It uses a four-wire testing method to ensure maximum accuracy in resistance measurement.
The KMOHM8501 operates on a DC power supply of 3.7V with a capacity of 2000mAh.
The KMOHM8501 has a test current of ≥1A.
The KMOHM8501 is suitable for laboratory, manufacturing, and power industry environments.
The KMOHM8501 can store up to 500 measurement sets with a "FULL" symbol indicator.
The KMOHM8501 complies with IEC61010-1 CAT III 600V and other relevant safety standards.
The dimensions of the KMOHM8501 are 187mm x 119mm x 50mm.
The KMOHM8501 weighs approximately 1 kg.
Yes, the KMOHM8501 features overload protection to safeguard against excessive input.
The KMOHM8501 features a large LCD display with controllable backlight options.
