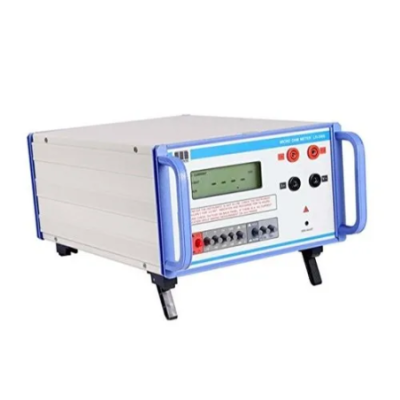

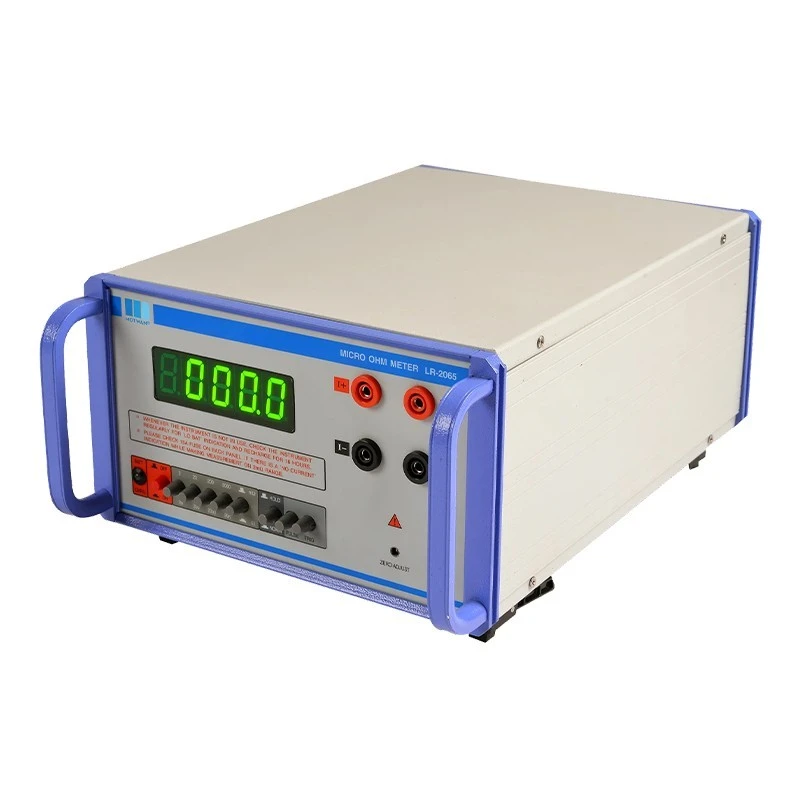

Motwane LR-2065 Micro Ohm Meter
Specifications
| Country of Origin | India |
|---|---|
| Power Source | Battery |
| Brand | Motwane |
| Humidity | 55% RH ± 10% |
| Model | LR-2065 |
| Temperature | 25°C ± 3°C |
| Temperature Coefficient | 150 ppm/°C |
| Warm-up Time | 2 to 5 minutes |
| Overrange Indication | Blinking Zero Display |
| Dimensions (DxWxH) | Approx. 340mm x 258mm x 145mm |
| Net Weight (with batteries) | Approx. 4 Kg |
Key Features
- 4½ digits LED display with annunciations
- Resolution of 0.1 μΩ on 2 mΩ range
- Mains cum battery operated (rechargeable Ni-Cd)
- High measurement current of 10A for faster settling of measured values on low resistance
- True four wire resistance measuring technique eliminates lead resistance errors
- Pulse mode with auto hold operation
- Low battery indication to prevent the deep discharge of the internal recharging battery
Product Description
Motwane’s Digital Micro Ohmmeter, LR-2065, comes with a maximum 10A DC current injection which is useful for the measurement of very low resistances (as low as 0.1 μΩ) in micro ohms. Mains cum rechargeable battery operated LR-2065, works on the proven principle of four wire measurements. The LR-2065 has 4½ digits LED display with a resistance measurement range from 2mΩ to 20KΩ, with a minimum resolution of 0.1μΩ. The pulse mode operation is an additional feature. The LR-2065 can be used for measuring the resistance of cables, wires, PCB relay, LT bus-bar, graphite electrodes, quality testing of resistive components, low capacity motors, etc.
Application
The high precision micro ohmmeter is used for measuring accurate low resistance with high accuracy, thus making it a reliable tool for quality assurance and easy operations. It comes in handy for quick maintenance checks for process industries. Typically It is very useful in design, test, maintenance, QC/QA, and production. Typical applications include the measurement of:
- Cables
- Electrodes
- Relays
- Components
- Bus Bars
- PC Boards
- Low rating motors & contactors
- Transformers weld joints
- Shunts
Standard Accessories
- Test leads with GP Kelvin clip
- Test leads with GP Crocodile clip
- Mains cord
- Instruction manual
Optional Accessories
- Test lead is 10 meters long with a heavy duty Crocodile clip.
- ‘C’ clamp with 10 meters long leads.
- Test leads with heavy duty bond testing probe.
Available on EnvMart, these Ohm Meters are designed for accurate resistance measurement in electrical circuits and components. Motwane Ohm Meters offer high precision and reliability, making them essential for electrical testing, maintenance, and quality control applications.
