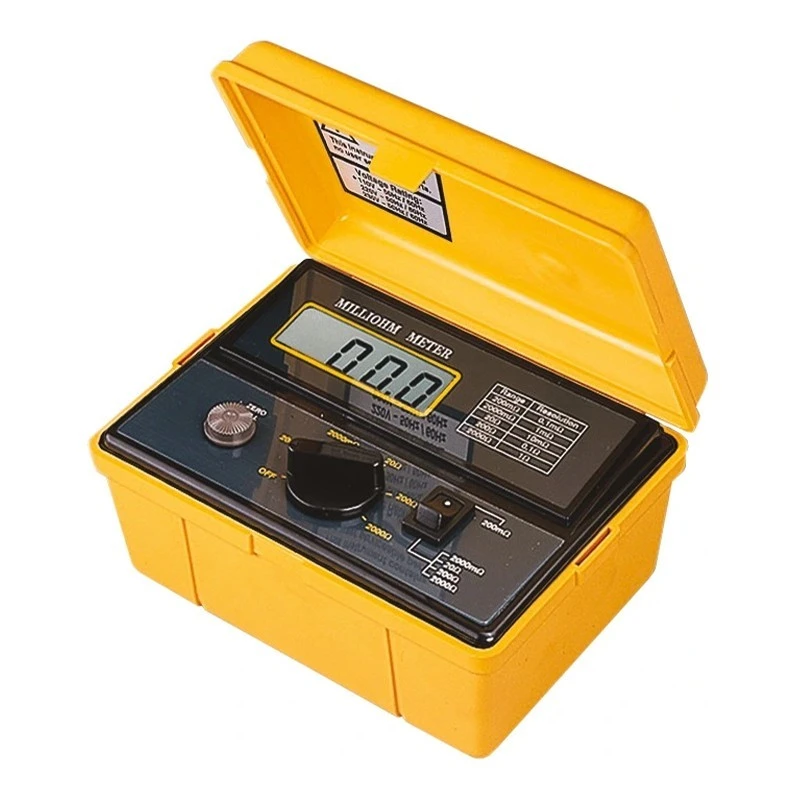

Lutron MO-2001 Miliohmmeter
Specifications
| Operating Humidity | Less than 80% RH |
|---|---|
| Power Consumption | Approx. 2 VA |
| Measurement Method | 4-terminal |
| Measurement Range | 200 mΩ / 2000 mΩ / 20 Ω / 200 Ω / 2000 Ω (0.1 mΩ to 2000 Ω) |
| Display | 18 mm LCD |
| Brand | LUTRON |
| Power Supply | AC 110V ± 15% / 50/60 Hz or AC 220V/240V ± 15% / 50/60 Hz |
| Type | Milliohm Meter |
| Operating Temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Dimensions | 160 x 120 x 85 mm (with housing front cover) |
| Standard Accessories | Power cable / 4-wire with 2 clips / instruction manual |
| Model | MO-2001 |
| Weight | Approx. 680 g (1.5 LB) |
| Sampling Time | Approx. 0.4 sec |
| Zero Adjustment | External adjustment |
| Over Input Indication | 1 |
| Input Terminal | 4 terminal |
Key Features
- 4-terminal measurement for accurate low resistance readings.
- Wide measurement range (0.1 mΩ to 2000 Ω).
- Large 18 mm LCD display.
- LSI circuit for high accuracy.
- Built-in over-input indication.
- Durable and portable design.
Product Description
The Lutron MO-2001 is a milliohm meter designed for accurate measurement of very low resistance using 4-terminal devices. It is ideal for measuring motor coil resistance, transformer resistance, PCB layout resistance, and for testing protective conductors, lightning conductors, and welded points. It features a wide measuring range from 0.1 mΩ to 2000 Ω across 5 ranges, and a large 18mm LCD display for easy readout. The device utilizes an LSI circuit for high accuracy and reliability, includes built-in over-input indication, and is housed in a durable and portable plastic case with a front protective cover.
Available on EnvMart, these Ohm Meters are built with high-precision technology to measure electrical resistance accurately across various components and circuits. Lutron Ohm Meters are trusted for their accuracy, durability, and ease of use, making them ideal for electrical testing, troubleshooting, and maintenance tasks.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this model is from 0.1 mΩ to 2000 Ω, covering five specific ranges: 200 mΩ, 2000 mΩ, 20 Ω, 200 Ω, and 2000 Ω.
It utilizes a 4-terminal measurement method, which is designed for accurate readings of very low resistance values.
The device can be powered by AC 110V ± 15% / 50/60 Hz or AC 220V/240V ± 15% / 50/60 Hz.
It features a large 18 mm LCD display for easy readout of measurements.
The operating temperature range is from 0 to 50 ℃ (32 to 122 ℉), and the operating humidity should be less than 80% RH.
Included accessories are a power cable, a 4-wire with 2 clips, and an instruction manual.
This model weighs approximately 680 g (1.5 LB).
The sampling time for the Lutron MO-2001 is approximately 0.4 seconds.
Zero adjustment can be performed externally on this model.
The built-in over-input indication alerts the user when the input exceeds the allowable measurement limits, helping to prevent damage or incorrect readings.
The dimensions of this model are 160 x 120 x 85 mm, including the housing front cover.
