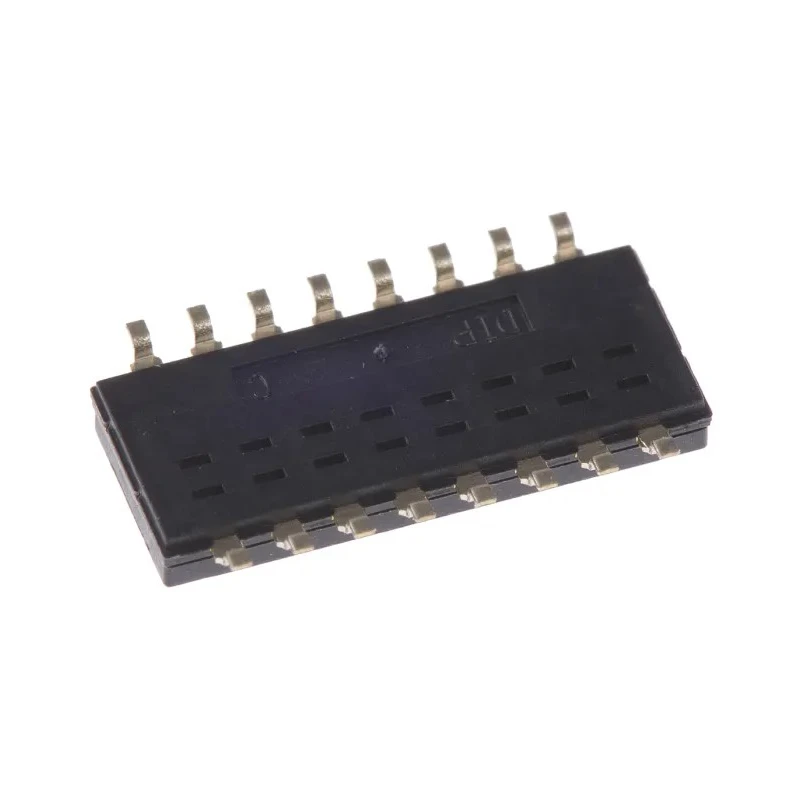

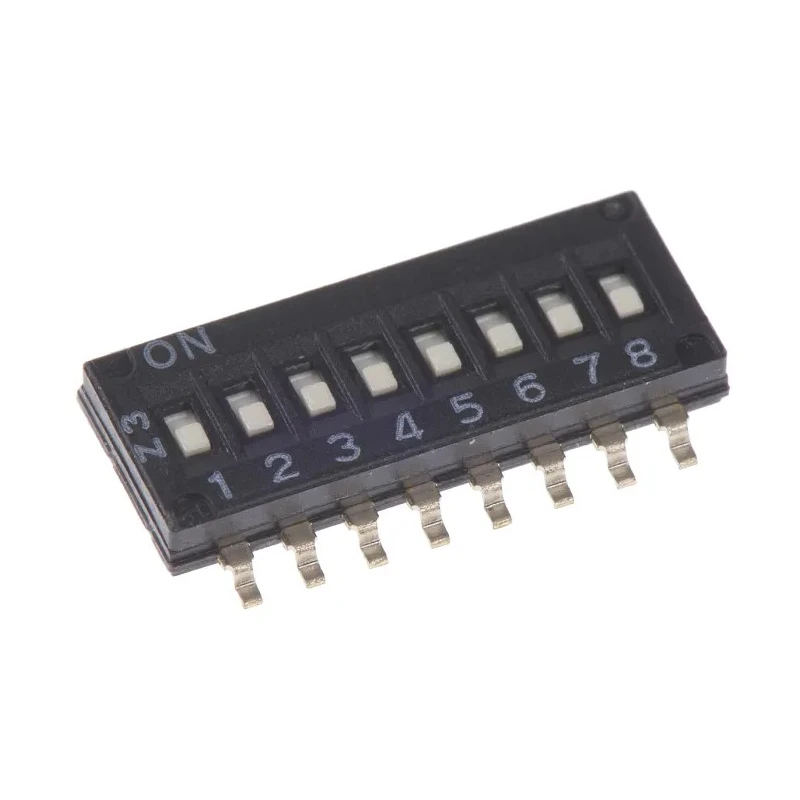

Omron Rotary Coded DIP Switch Surface Mount Slide Actuator Model A6H-8102

Omron A6H-8102 is a rotary coded DIP switch with a slide actuator type designed for surface mounting on PCBs. Its ultra low profile half pitch architecture reduces the needed board space by 63 percent compared to standard pitches, featuring a compact 1.55mm height. This switch supports precise rotary code inputs in various electronic devices and industrial control applications.

The switch provides reliable electrical characteristics including a low contact resistance of 200 milliohms ensuring consistent signal transmission and an insulation resistance of at least 100 megaohms at 250Vdc for robust electrical isolation.

Engineered for durability, the mechanical life rating of 1000 operations ensures dependable long-term performance in industrial, automation, and electronics manufacturing environments. The product complies with RoHS directives, supporting environmentally responsible design.

Designed for mounting directly on printed circuit boards via surface mount technology, the A6H-8102 enhances assembly efficiency and enables compact electronic designs across sectors including industrial automation, instrumentation, and consumer electronics.

Compact half pitch design minimizing PCB footprint. Slide actuator for accurate rotary code selection. Contact resistance of 200 milliohms ensures low signal loss. Insulation resistance of 100 megaohms at 250Vdc for safety.

Rated for 1000 mechanical operations for guaranteed reliability. RoHS compliant for eco-friendly manufacturing.

This Omron Rotary Coded DIP Switch is ideal for engineers and designers seeking quality surface mount switching components in industrial and consumer products. Discover a wide range of similar high precision rotary switches and components in EnvMart’s Electronics & Electricals catalog.
