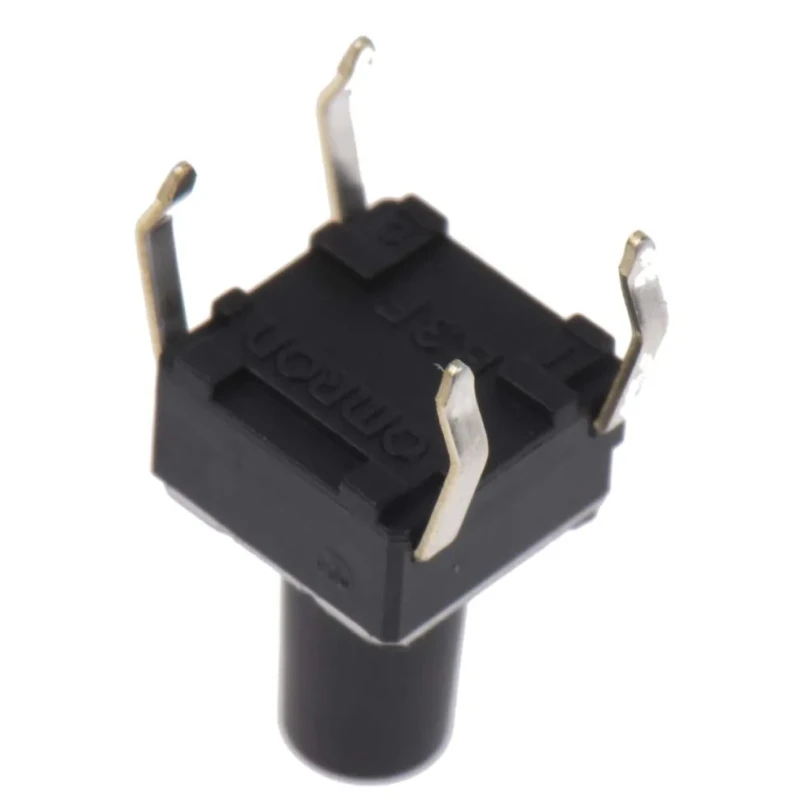

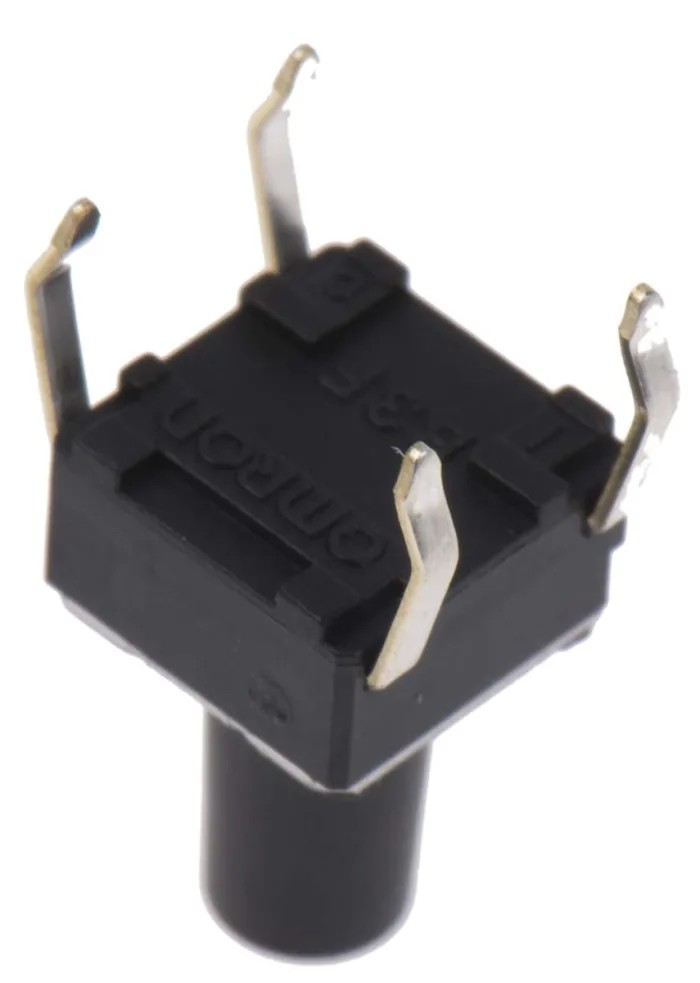

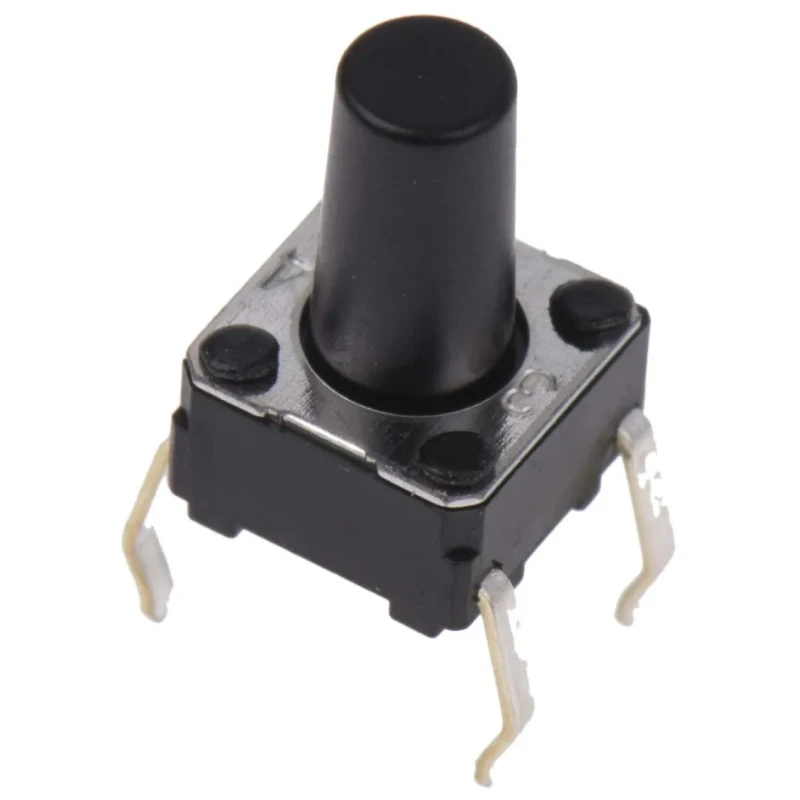

Omron Tactile Switch Plunger 6.1 mm SPST 50mA 24 V dc Through Hole B3F-1070

The Omron B3F-1070 Tactile Switch Plunger 6.1 mm SPST 50mA 24 V dc Through Hole is designed for high-reliability electrical switching applications. Its compact 6 x 6 mm size and plunger actuator offer precise tactile feedback, making it ideal for audio equipment, office machines, communication devices, measuring instruments, TVs, and PVRs.

Constructed with a solder terminal for secure mounting through printed circuit boards, this tactile switch supports a contact current of 50mA at 24 volts DC. The actuator length of 6.1 mm and operating force of 0.98N ensures consistent actuation with a positive click feel.

This switch operates reliably under a wide temperature range from -25°C to 70°C and has a mechanical life rating of one million operations, making it suitable for industrial, commercial, and consumer electronics that require durability and longevity.

With an IP00 ingress protection rating, it is designed for indoor environments where no protection against ingress of solids or liquids is required. The product complies with RoHS regulations, confirming that it contains no hazardous substances harmful to health and environment.

Manufactured in Japan, the B3F-1070 series is part of Omron's well-known B3F tactile switch line, offering trusted quality and performance for demanding electronic switching needs.

This tactile switch features a plunger actuator with 6.1 mm length for accurate tactile feedback. It has a contact configuration of SPST (Single Pole Single Throw) suitable for simple on/off circuits. The switch supports a contact current of 50mA and a contact DC voltage of 24 V dc.

Designed for through-hole mounting with solder terminal type for stable installation. Features an operating force of 0.98N providing a positive tactile click action. Operates within temperature range of -25°C to 70°C ensuring durability in varying environments.

Mechanical life expectancy is rated for 1,000,000 operations, ensuring long-term reliability. The switch has dimensions 6 mm length, 6 mm width, and 9.5 mm height with an IP00 rating. Complies with RoHS standards indicating environmentally safe materials and manufacturing.
