Omron PCB Signal Relay 24V DC Coil, 1A Switching Current, DPDT Contact Configuration G6K-2P-Y 24DC

Free Delivery in India | Lowest Global Shipping Charges

Omron PCB Signal Relay 24V DC Coil, 1A Switching Current, DPDT Contact Configuration G6K-2P-Y 24DC

Name: Omron PCB Signal Relay 24V DC Coil, 1A Switching Current, DPDT Contact Configuration G6K-2P-Y 24DC
Brand: Omron
SKU: 424743
Price: 5.82 USD
Availability: InStock



Category Signal Relay Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	5mm
Length	10mm
Model	G6K-2P-Y 24DC
Width	6.5mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	HFD4
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	1A
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Coil Resistance	5200Ω
Coil Voltage	24V dc
Switching DC Voltage	60V dc
Switching AC Voltage	125V ac
Coil Power	100mW

Key Features

The relay features a fully sealed construction ensuring durability.
Coil power consumption is low at 100mW with coil resistance of 5.2 kΩ.
It supports switching voltages up to 125V AC and 60V DC for versatile applications.

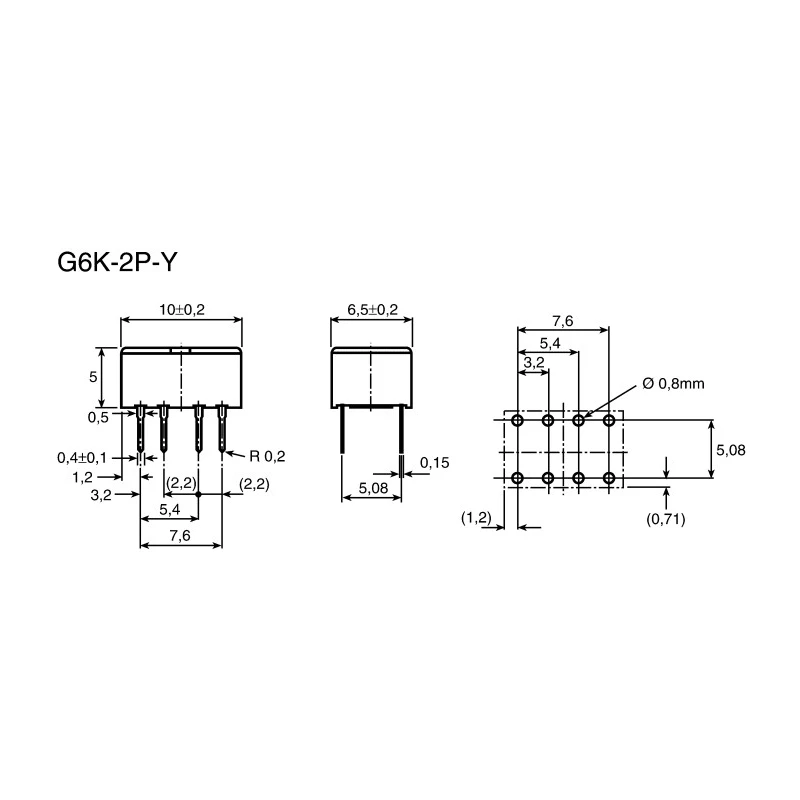

Compact dimensions of 10mm length, 6.5mm width, and 5mm height suit PCB mounting.
Terminal type is PCB through-hole for easy integration.
Contact material is high-quality silver alloy ensuring reliable conductivity.
Operating temperature range extends from -40°C to +70°C for wide environment tolerance.
The relay is RoHS compliant and suitable for industrial and automation use.

Product Description

Omron G6K-2P-Y 24DC PCB Signal Relay is a non-latching relay designed for reliable signal switching in electronic circuits and automation systems. It is actuated by a 24V DC coil voltage and designed to handle switching currents up to 1 Ampere with a DPDT (Double Pole Double Throw) contact configuration.

This relay features a fully sealed construction that protects internal components and enhances durability. The coil consumes approximately 100 milliwatts of power, with a coil resistance of 5200 ohms, enabling low power operation. The contact material is silver alloy, providing excellent conductivity and longevity under repeated switching cycles.

Designed for PCB mounting, it has compact dimensions of 10mm length, 6.5mm width, and 5mm height, making it suitable for space-constrained applications. It supports switching of AC voltages up to 125V and DC voltages up to 60V, making it versatile for various electrical and electronic tasks.

The operating temperature range from -40°C to 70°C ensures reliable performance across demanding industrial, laboratory, and commercial environments. It meets RoHS standards for environmental safety and reliability.

The relay is fully sealed to prevent dust and moisture ingress. Low coil power consumption of 100mW reduces energy usage in control circuits. PCB terminal type allows for straightforward soldering and integration. Silver alloy contacts ensure high conductivity and resistance to wear.

Temperature capabilities ensure stable operation in harsh conditions. Ideal for industrial automation, signal conditioning, and control panel applications. Compact size supports design flexibility in electronic devices.

This PCB signal relay is suited for engineers and designers seeking reliable switching solutions for automation, control systems, instrumentation, and signal processing applications.
