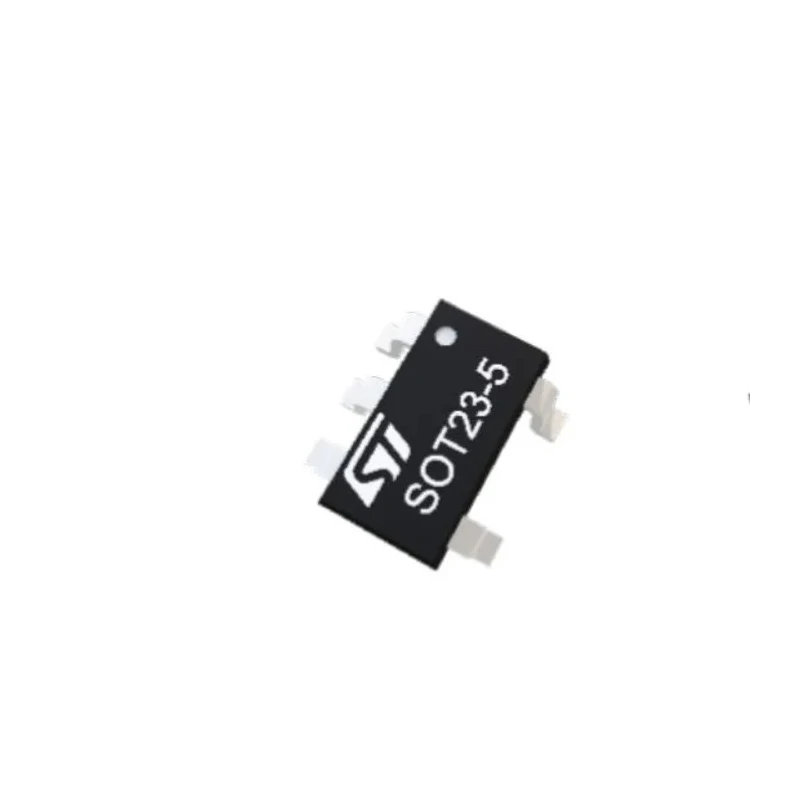

STMicroelectronics Operational Amplifier 22 MHz 5-Pin 5.5V SOT-23 TSV7721ILT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier 22 MHz 5-Pin 5.5V SOT-23 TSV7721ILT

Name: STMicroelectronics Operational Amplifier 22 MHz 5-Pin 5.5V SOT-23 TSV7721ILT
Brand: STMicroelectronics
SKU: 424283
Price: 0.98 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.45mm
Length	3mm
Model	TSV7721ILT
Width	1.75mm
Mount Type	Surface
Series	TSV7721
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	5
Automotive Standard	AEC-Q3, AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.8V
GBP - Gain Bandwidth Product	22MHz
Input Bias Current	75 pA
Slew Rate	11V/μs
Input Offset Current	20 pA

Key Features

Gain bandwidth product of 22 MHz enables high-frequency signal amplification.
Maximum supply voltage of 5.5 V supports a wide operating range.
Low input bias current of 75 pA ideal for sensor and photodiode applications.
Input offset voltage of up to 200 μV ensures high accuracy.
Slew rate of 11 V/μs achieves fast signal response.
Compliant with RoHS standards for environmental safety.
Small SOT-23 surface mount package with 5 pins for compact PCB integration.
Operating temperature range from -40°C to 125°C supports industrial conditions.

Product Description

The STMicroelectronics TSV7721ILT is a single-channel operational amplifier designed for applications requiring high bandwidth and accuracy. Featuring a gain bandwidth product of 22 MHz and a slew rate of 11 V/μs, this amplifier is unity gain stable and optimized for sensor interface circuits.

Its ultra-low input bias current of 75 pA enables precise readings from photodiodes and other current-sensitive sensors. The input offset voltage is kept to a maximum of 200 μV, providing high accuracy across the operating temperature range of -40°C to 125°C.

Packaged in a compact 5-pin SOT-23 surface mount package measuring 3 mm x 1.75 mm x 1.45 mm, the TSV7721ILT is suitable for space-constrained electronics. The device supports supply voltages from 1.8 V up to 5.5 V and delivers rail-to-rail output performance, making it versatile for various industrial and automotive environments.

This amplifier conforms to RoHS environmental standards and is certified under automotive qualifications AEC-Q3 and AEC-Q100, ensuring robust performance in demanding automotive and industrial applications.

Its specialized design makes the TSV7721ILT ideal for high-accuracy sensor interfaces, current measurements near ground, and other precision signal conditioning tasks. Gain bandwidth product of 22 MHz enables high-frequency signal amplification.

Maximum supply voltage of 5.5 V supports a wide operating range. Low input bias current of 75 pA ideal for sensor and photodiode applications. Input offset voltage of up to 200 μV ensures high accuracy. Slew rate of 11 V/μs achieves fast signal response.

Compliant with RoHS standards for environmental safety. Small SOT-23 surface mount package with 5 pins for compact PCB integration. Operating temperature range from -40°C to 125°C supports industrial conditions. Automotive certified to AEC-Q3 and AEC-Q100 for reliability in automotive systems.
