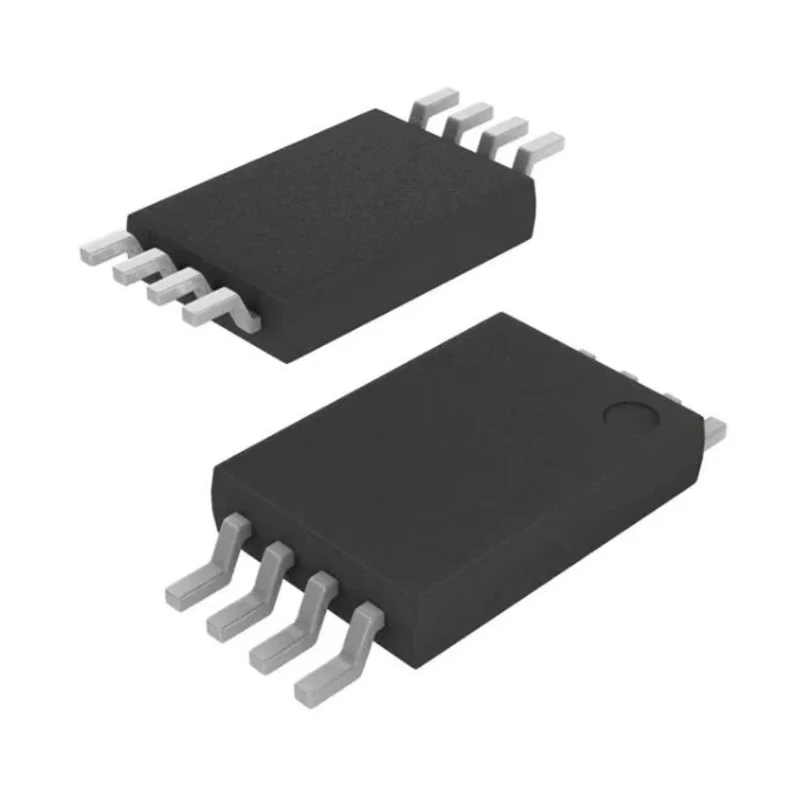

STMicroelectronics 4 kB Serial EEPROM 900 ns 8-Pin TSSOP-8 Serial-I2C M24C04-RDW6TP

STMicroelectronics M24C04-RDW6TP is a 4 kB serial EEPROM designed for reliable data storage with fast access times of 900 ns. Packaged in an industry-standard 8-pin TSSOP-8 surface mount package, this EEPROM operates using a Serial-I2C interface supporting clock frequencies up to 400 kHz. It offers a memory organization of 512 words by 8 bits each, suitable for a range of embedded applications requiring non-volatile memory.

This EEPROM supports a wide supply voltage range from 1.8 V to 5.5 V, enabling compatibility with various system designs. It operates stably across industrial temperature ranges from -40 °C to +85 °C, making it ideal for automotive, industrial, and commercial uses. The device complies with the automotive AEC-Q100 standard, ensuring high reliability in demanding environments.

Key operational features include byte-write and page-write capabilities completed within 5 milliseconds, more than 4 million write cycles, and a robust 40-year data retention specification. Enhanced electrostatic discharge (ESD) and latch-up protections further improve device endurance in harsh conditions.

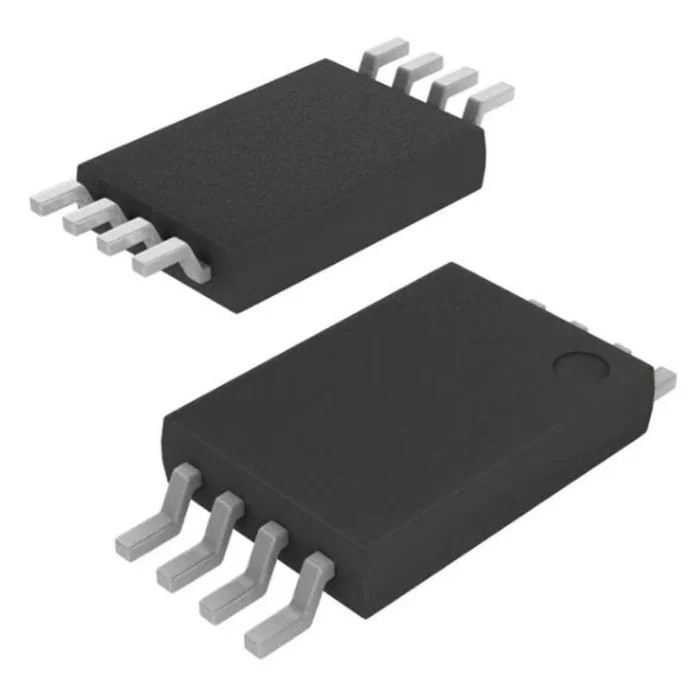

The compact TSSOP-8 package measures 6.6 mm wide, 3.1 mm long, and 550 micrometers in height, supporting surface mount technology for efficient PCB space utilization. This EEPROM is well suited for use in industrial controllers, automotive electronic systems, communication devices, and consumer electronics requiring compact, reliable, and fast-access memory solutions.

Memory size of 4 kB organized as 512 x 8 bits. Supports Serial I2C communication interface at 400 kHz clock frequency. Operating voltage range from 1.8 V to 5.5 V. Operating temperature range from -40 °C to +85 °C. Conforms to automotive standard AEC-Q100.

Write protection and high endurance with over 4 million write cycles. Fast random access time of 900 ns. Compact 8-pin TSSOP-8 surface mount package. Extended data retention of 40 years.

This STMicroelectronics M24C04-RDW6TP EEPROM is an excellent choice for a variety of industrial, automotive, and commercial electronic applications requiring reliable and fast non-volatile memory. Explore more semiconductor memory solutions and related electronic components at EnvMart.
