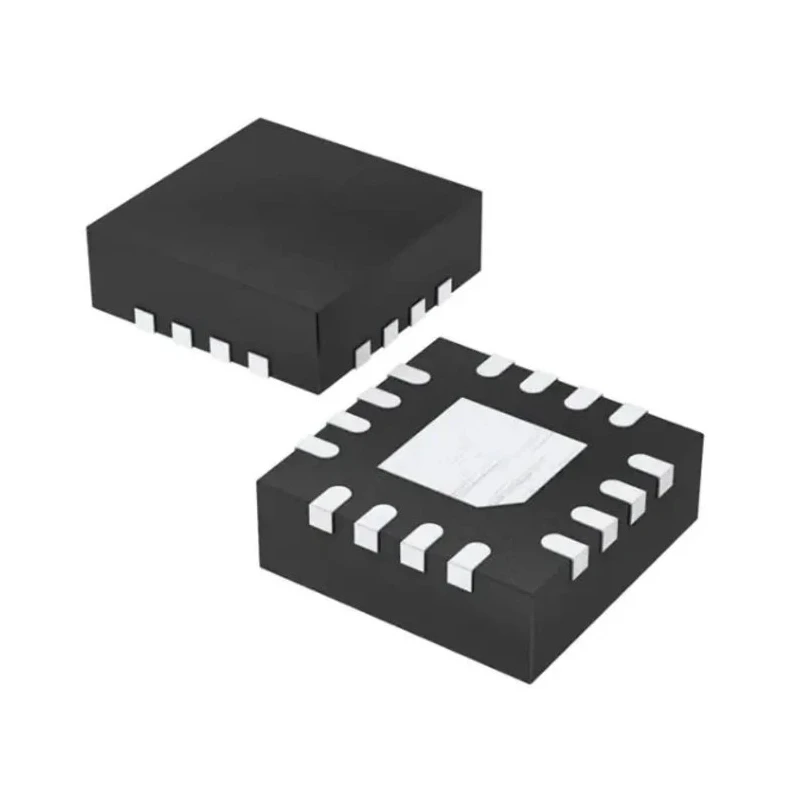

STMicroelectronics Operational Amplifier 1.3 MHz Gain Bandwidth, 16-Pin QFN-16 Surface Mount, 3V to 30V LM224QT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier 1.3 MHz Gain Bandwidth, 16-Pin QFN-16 Surface Mount, 3V to 30V LM224QT

Name: STMicroelectronics Operational Amplifier 1.3 MHz Gain Bandwidth, 16-Pin QFN-16 Surface Mount, 3V to 30V LM224QT
Brand: STMicroelectronics
SKU: 424069
Price: 0.36 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1mm
Length	3.1mm
Model	LM224QT
Width	3.1mm
Mount Type	Surface
Series	LM224x
Output Current	40mA
Maximum Operating Temperature	105°C
Package Type	QFN-16
Minimum Operating Temperature	-40°C
Number Of Channels	4
Standards/Approvals	RoHS
Pin Count	16
Maximum Supply Voltage	30V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	1.3MHz
Input Bias Current	20 nA
Vos - Input Offset Voltage	5 mV
Slew Rate	0.4V/μs
Input Offset Current	2 nA

Key Features

Features a gain bandwidth product of 1.3 MHz for stable amplification.
Includes 4 independent operational amplifier channels in a 16-pin QFN surface mount package.
Operates reliably over a wide supply voltage range from 3V to 30V.
Low input bias current of 20 nA ensures minimal signal distortion.
Supports operating temperatures from -40°C to 105°C for robust performance.
Input offset voltage maximum of 5 mV enhances signal accuracy.
Slew rate of 0.4 V/μs suitable for many analog signal requirements.
Designed with low supply current of 375 μA per amplifier for power efficiency.

Product Description

STMicroelectronics LM224QT is a quad operational amplifier designed to deliver stable and accurate amplification in electronic circuits. Featuring a high gain bandwidth product of 1.3 MHz and frequency compensation implemented internally, it ensures consistent performance across a variety of industrial and commercial applications.

This device is packaged in a compact 16-pin QFN surface mount package, facilitating high-density circuit board layouts. The LM224QT operates from a single power supply ranging from 3V to 30V or dual supplies of ±1.5 V to ±15 V, providing flexibility in power configuration.

The amplifier boasts a low input bias current of 20 nA and a minimal input offset voltage of 5 mV, which contribute to high signal fidelity and reduced error in sensitive analog computations. Its slew rate is 0.4 V/μs, making it suitable for a broad range of signal frequencies and applications.

Operating temperature tolerance from -40°C to 105°C allows this component to function reliably in harsh industrial environments, including automotive and manufacturing sectors. It draws only 375 μA supply current per amplifier, ensuring low power consumption in multi-channel configurations.

Physical dimensions are 3.1 mm wide and long, with a height of 1 mm, supporting compact PCB footprints. Additionally, the LM224QT complies with RoHS standards, endorsing environmentally safe manufacturing practices.

High gain bandwidth product of 1.3 MHz provides efficient signal amplification. Four independent operational amplifiers enable multiple channel processing. Surface mount QFN-16 package design supports compact assembly. Wide operating voltage range from 3V to 30V for versatile applications.

Low input offset current and voltage ensure accurate signal handling. Robust temperature rating from -40°C to 105°C suits industrial conditions. Low supply current reduces overall power consumption. Compliant with RoHS for environmental safety.

This operational amplifier is ideal for use in industrial, laboratory, automotive, and manufacturing electronics requiring precise analog amplification. Explore our wide catalog of semiconductor components and Operational Amplifiers for your project needs at EnvMart.
