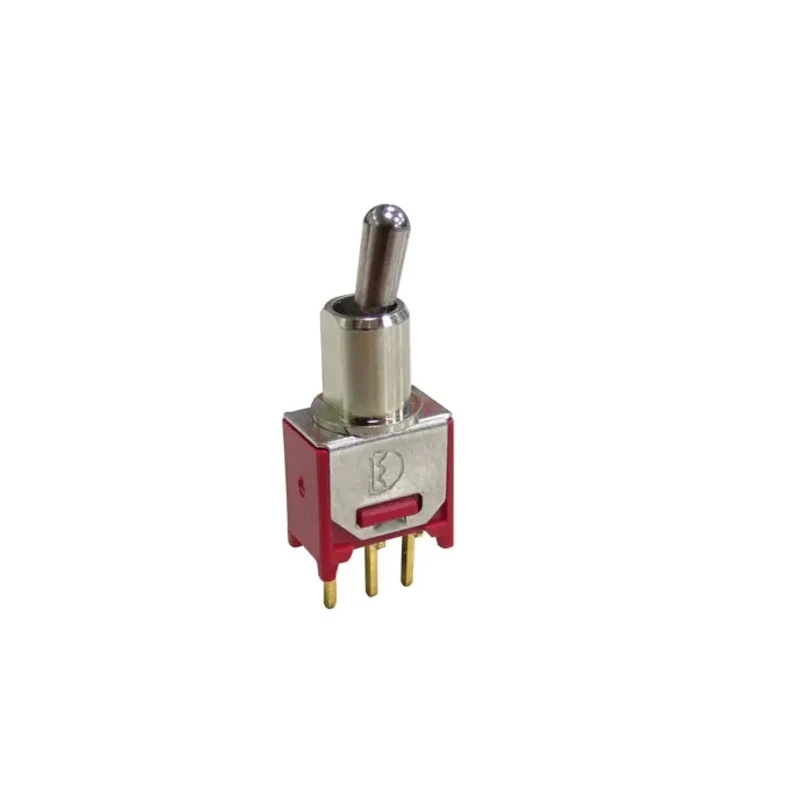

RS PRO Toggle Switch Panel Mount On-On DPDT SPDT 3A Solder Lug Terminal 209-9360

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toggle Switch Panel Mount On-On DPDT SPDT 3A Solder Lug Terminal 209-9360

Name: RS PRO Toggle Switch Panel Mount On-On DPDT SPDT 3A Solder Lug Terminal 209-9360
Brand: RS PRO
SKU: 422457
Price: 417.85 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Length	8.13mm
Model	209-9360
IP Rating	IP67
Width	6mm
Mount Type	Panel
Maximum Operating Temperature	85°C
Contact Configuration	DPDT, SPDT
Minimum Operating Temperature	-40°C
Terminal type	Solder Lug
Standards/Approvals	RoHS 2011/65/EU & 2015/863
Switch Operation	On-On
Switch Contact Current	3A
Actuator Material	Chrome Plated Brass

Key Features

This toggle switch features a DPDT and SPDT contact configuration for versatile switching options.
It operates with On-On switch action, allowing connection to two circuits alternately.
The switch supports up to 3A current for reliable electrical performance.
Panel mount design with solder lug terminals ensures secure and easy installation.
IP67 rated enclosure provides excellent waterproof and dustproof protection.
Chromed plated brass actuator offers durability and resistance to wear.
Operating temperature range from -40°C to 85°C suits varied environmental conditions.
The switch complies with RoHS 2011/65/EU & 2015/863 standards, ensuring lead-free and environmentally friendly use.

Product Description

RS PRO 209-9360 toggle switch is a high-quality panel-mounted On-On switch designed for electrical and industrial applications. With DPDT (Double Pole Double Throw) and SPDT (Single Pole Double Throw) contact configurations, it enables alternating connection paths for controlling circuits reliably. Its 3A switch contact current rating makes it suitable for moderate load switching in automation and control gear.

This sub-miniature toggle switch features a durable chrome plated brass actuator for enhanced longevity and ergonomic operation. It is designed with a solder lug terminal type that facilitates secure connections. The switch meets IP67 standards, offering waterproof and dustproof protection which makes it ideal for applications exposed to harsh environments.

The operating temperature range from -40°C to 85°C ensures stable performance across diverse climatic conditions. Compliance with RoHS 2011/65/EU & 2015/863 guarantees it is lead-free and environmentally safe. Compact dimensions of 8.13mm length and 6mm width enable easy integration into tight spaces.

Applications include telecommunications equipment, industrial controls such as joystick and grip switches, marine control panels, food processing machinery controls, wheelchair motor switches, test and measurement devices, and security systems. Its versatility and robustness make it essential for reliable circuit control across multiple industries.

This Toggle Switch has a mechanical life rated for 30,000 make-and-break cycles ensuring long service life. Panel mount construction allows for straightforward installation in control panels and enclosures. Solder lug terminals provide solid and secure electrical connections.

It offers a tactile On-On switch operation enabling users to switch between two circuits efficiently. The IP67 rating ensures protection against dust ingress and brief water submersion. Chrome plated brass actuator material provides corrosion resistance and durability.

Wide operating temperature range from -40°C to 85°C supports usage in various environmental conditions. Complies with international environmental standards RoHS 2011/65/EU and 2015/863. Compact sub-miniature size facilitates application in electronic devices with space constraints.

Explore our comprehensive range of industrial electrical switches at EnvMart for trusted quality and performance.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features both DPDT (Double Pole Double Throw) and SPDT (Single Pole Double Throw) contact configurations, allowing for versatile switching options between two circuits.

The switch supports a maximum contact current rating of 3A, making it suitable for moderate load switching applications.

It has an IP67 rating, which provides excellent protection against dust ingress and brief water submersion, suitable for harsh environments.

The operating temperature range is from -40°C to 85°C, allowing it to function effectively in diverse environmental conditions.

It is designed with solder lug terminals, which facilitate secure and reliable electrical connections during installation.

The actuator is made of chrome plated brass, providing durability and resistance to wear.

This unit has compact dimensions of 8.13mm in length and 6mm in width, making it suitable for integration into tight spaces.

It complies with RoHS 2011/65/EU and 2015/863 standards, ensuring that it is lead-free and environmentally friendly.

It is suitable for various applications including telecommunications equipment, industrial controls, marine control panels, and test and measurement devices.

The mechanical life of this switch is rated for 30,000 make-and-break cycles, ensuring a long service life.

It features a panel mount design, allowing for straightforward installation in control panels and enclosures.
