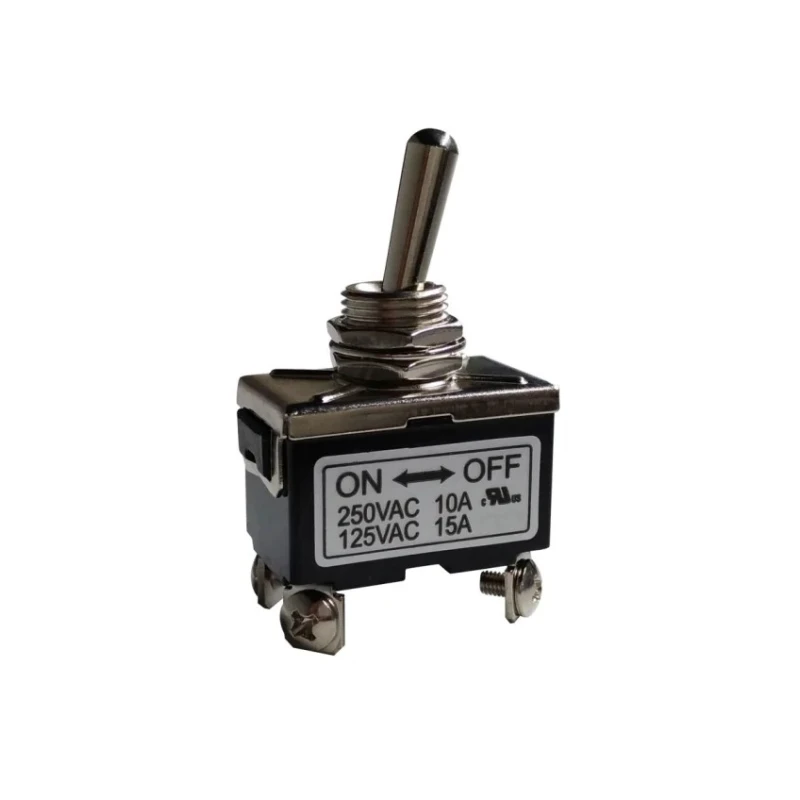

RS PRO Toggle Switch Panel Mount On-Off DPST Screw Terminal 10A 250V ac 206-6992
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 53.45mm |
| Length | 31.78mm |
| Model | 206-6992 |
| IP Rating | IP40 |
| Width | 19.5mm |
| Mount Type | Panel |
| Housing | Iron, nickel plated |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPST |
| Note | Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag |
| Actuator | Brass with nickel plating |
| Spring | Steel wire |
| Base | Phenolic resin molding compound, black |
| Minimum Operating Temperature | -20°C |
| Hardware | Nut (Iron, nickel plated), Washer (Steel, nickel plated) Screw (Iron, nickel plated) |
| Terminals | Bronze with nickel plated |
| Terminal type | Screw |
| Label | Mist silver polyester film |
| Standards/Approvals | RoHS, UL & cUL |
| Switch Operation | On-Off |
| Actuator Length | 16.45mm |
| Switch Contact Current | 10A |
| Mechanical Life | 10Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
| Bushing | Brass with nickel plating |
Key Features
- Rated for 10A @ 250V AC and 15A @ 125V AC for reliable power switching.
- Double pole single throw contact configuration controls two circuits simultaneously.
- Robust brass actuator and bushing with nickel plating ensure durability.
- Panel mount type with screw terminal connections for secure installation.
- Operating temperature range from -20°C to +55°C suits diverse environments.
- Designed with an IP40 rating offering protection against solid objects above 1mm.
- Mechanical life tested for 10,000 cycles to guarantee long-term use.
- Approved standards include RoHS, UL, and cUL certification for safety compliance.
Product Description
RS PRO 206-6992 toggle switch is a high-quality panel mount double pole single throw (DPST) switch rated for a contact current of 10A at 250V AC. It offers robust and reliable operation with a screw terminal connection system designed for efficient control of two circuits simultaneously with On-Off switch operation.
The switch features a brass actuator with nickel plating to enhance durability and corrosion resistance, accompanied by a brass bushing also nickel-plated. Its base is made from black phenolic resin molding compound with an iron nickel-plated housing. The bronze terminals are nickel-plated as well, ensuring secure and stable electrical connectivity.
Designed for use in demanding industrial and electrical environments, the RS PRO toggle switch operates within a temperature range of -20°C to +55°C. It carries an IP40 rating that protects the switch against ingress of solid objects larger than 1mm, contributing to reliable performance in typical panel installations.
The switch is mechanically rated for 10,000 life cycles and complies with RoHS, UL, and cUL standards, emphasizing safety and environmental compliance. Its compact size with dimensions of 31.78mm in length, 19.5mm in width, and 53.45mm in height enables easy integration into various control panels.
Applications for this toggle switch include telecommunications systems, aerospace equipment, automotive controls, instrumentation, industrial control solutions, and material handling. It is well-suited for controlling mains electricity by isolating live and neutral connections in AC/DC applications such as motor control.
Rated for 10A contact current at 250V AC. Durable brass actuator and bushing with nickel plating. Panel mount with screw terminal connections. Operating temperature range: -20°C to +55°C. Compact dimensions ideal for panel installation.
Mechanical life of 10,000 cycles. IP40 rated for protection against solid objects. RoHS, UL, and cUL certified for safety and compliance. Suitable for telecommunications, aerospace, automotive, and industrial control use cases.
This RS PRO Toggle Switch is a reliable solution for control and switching applications in industrial and electrical systems. Discover more quality switches and electrical components by exploring EnvMart's extensive catalog.
