Microchip Operational Amplifier 10 MHz Gain Bandwidth 5.5V 8-Pin MSOP MCP6V97-E/MS

Free Delivery in India | Lowest Global Shipping Charges

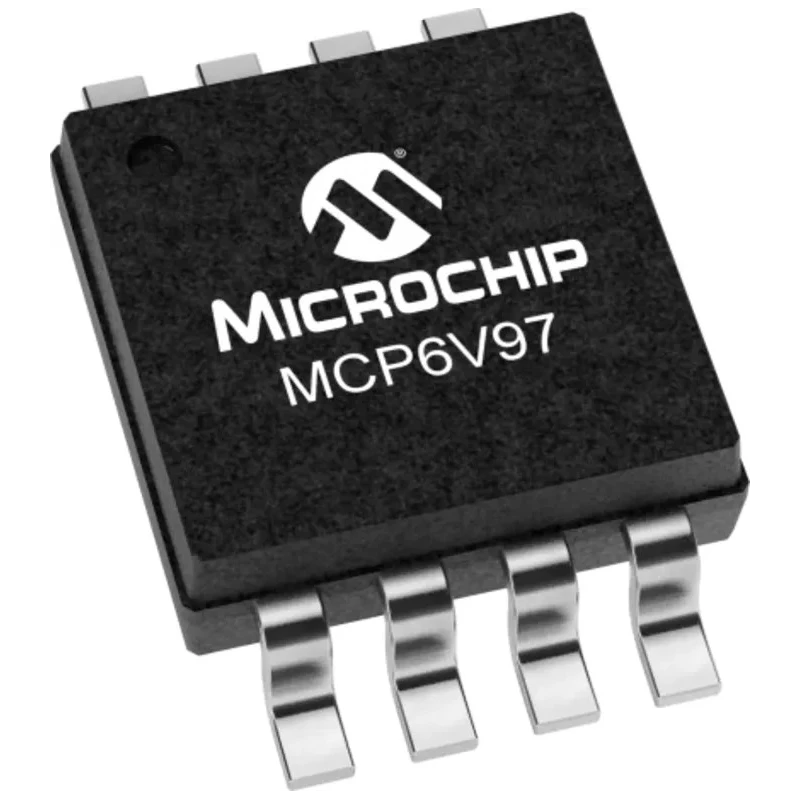

Microchip Operational Amplifier 10 MHz Gain Bandwidth 5.5V 8-Pin MSOP MCP6V97-E/MS

Name: Microchip Operational Amplifier 10 MHz Gain Bandwidth 5.5V 8-Pin MSOP MCP6V97-E/MS
Brand: Microchip
SKU: 424447
Price: 2.87 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.1mm
Length	3mm
Model	MCP6V97-E/MS
Width	3mm
Mount Type	Surface
Series	MCP6V97
Output Current	30mA
Maximum Operating Temperature	125°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	5.5V
GBP - Gain Bandwidth Product	10MHz
Input Bias Current	±2 pA
Slew Rate	9.5V/μs
Input Offset Current	±100 pA

Key Features

Features ultra-low input offset voltage correction for minimal drift.
Operates over a wide temperature range from -40°C to 125°C.
Offers high slew rate of 9.5 V/μs ensuring fast response.
Low input bias current at ±2 pA for sensitive applications.
Compact dimensions of 3mm by 3mm by 1.1mm suitable for surface mounting.
Provides dual-channel operation with 30mA output current capability.
Employs zero-drift architecture for stability and accuracy.
RoHS compliant ensuring environmental safety.

Product Description

Microchip MCP6V97-E/MS is a high-performance operational amplifier designed for precision and low noise amplification. It features a gain bandwidth product of 10 MHz and is unity gain stable, ensuring reliable performance in demanding analog signal processing tasks. The device operates with a single supply voltage up to 5.5 V, making it suitable for modern low-voltage electronic circuits.

The zero-drift architecture minimizes input offset voltage to 25 μV and offset drift to 150 nV/°C, greatly enhancing measurement accuracy. Input bias currents are exceptionally low at ±2 pA, beneficial for high-impedance sensor interfaces.

The amplifier package conforms to an 8-pin MSOP surface mount form factor, with dimensions 3 mm length, 3 mm width, and 1.1 mm height, facilitating integration into compact PCB layouts. It supports dual channel operation with an output current rating of 30 mA per channel.

Additional technical benefits include a high slew rate of 9.5 V/μs, enhanced EMI rejection, and compliance with RoHS standards, making it suitable for industrial, automotive (non-automotive standard though), and instrumentation applications.

Ultra-low offset voltage with drift compensation for precision signal amplification. Wide temperature range operation from -40°C to 125°C for harsh environments. Compact MSOP package enables space-saving PCB designs. Low quiescent current extends battery life in portable devices.

Dual channels provide flexibility for multi-signal processing. RoHS compliant for environmental and regulatory adherence.

This operational amplifier is ideal for industrial control, laboratory instrumentation, sensor conditioning, and any application demanding accurate, low-noise analog signal amplification. Explore more Microchip Operational Amplifiers and semiconductor products at EnvMart for your electronic component needs.
