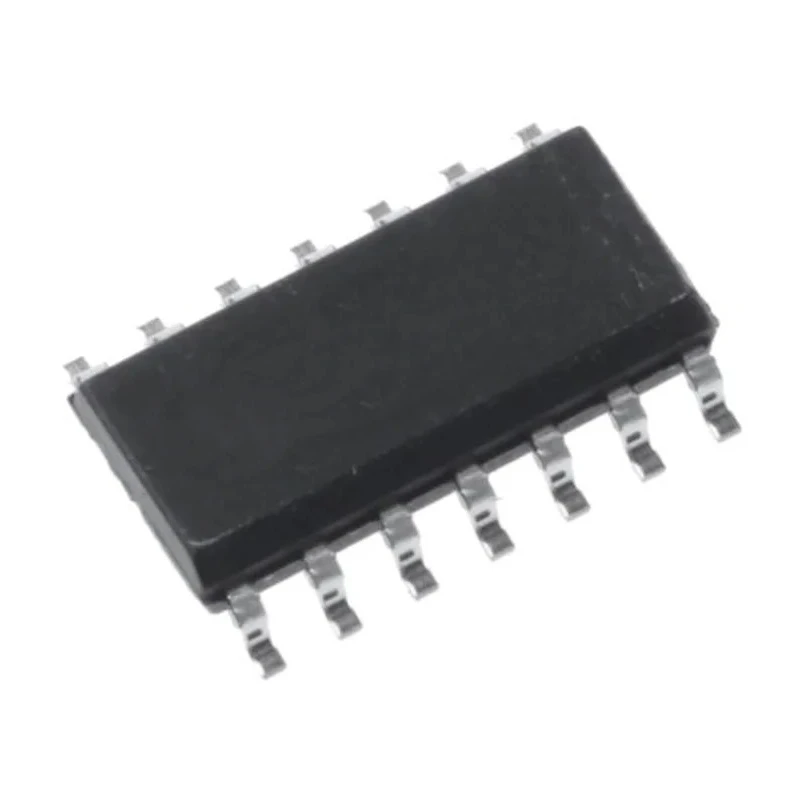

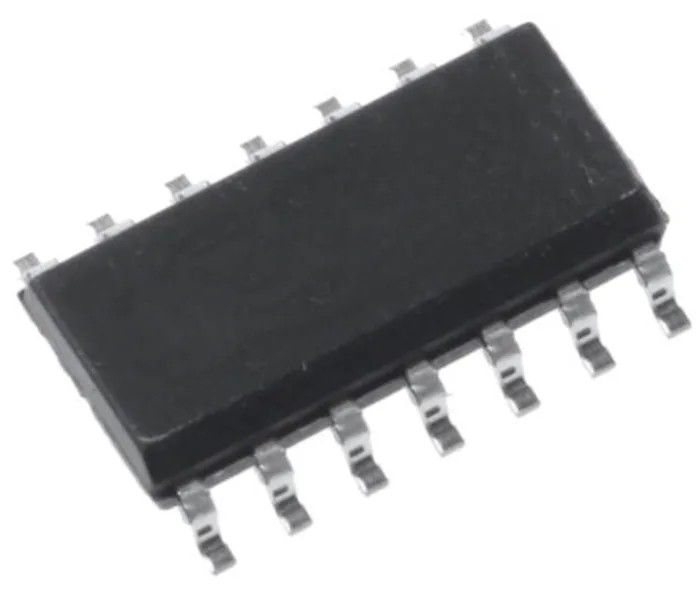

STMicroelectronics Operational Amplifier Quad 1.4 MHz Gain Bandwidth, 14-Pin Surface Mount SO, 2.7-16V TS914AIDT

STMicroelectronics TS914AIDT is a quad operational amplifier designed for precision and robustness in demanding electronic and industrial applications. It supports rail-to-rail input and output voltage ranges, ensuring maximum signal swing close to supply rails, suitable for single or dual supply operation from 2.7 to 16 V. Its 14-pin small outline surface mount package (SO) facilitates integration into compact PCB layouts.

This amplifier features an exceptional low input offset voltage max 5 mV (A grade) and extremely low input bias current around 1 pA typical, optimizing signal fidelity especially in low-level analog signals. The device maintains a gain bandwidth product of 1.4 MHz with a slew rate of 1 V/μs, suitable for high-speed signal conditioning circuits.

Operational temperature range from -40°C to 125°C makes this device ideal for automotive and industrial environments. It provides a maximum output current of 40 mA with internal circuitry protection and includes latch-up immunity to withstand electrical transients. The TS914AIDT also adheres to RoHS compliance and meets the stringent AEC-Q100 automotive qualification standard.

Physically, the device measures 8.75 mm in length, 4 mm in width, and 1.65 mm in height, making it suitable for dense assembly conditions. Its low quiescent current of 200 μA per amplifier (at 3 V) helps in power-sensitive applications.

This operational amplifier is widely used in industrial automation, control systems, audio signal processing, and instrumentation requiring stable and precise amplification. Related STMicroelectronics TS56x series models offer improved accuracy and alternate package options.

This amplifier device includes 4 independent channels for versatile signal processing. Supports surface mounting with a compact 14-pin small outline (SO) package. Features a low input offset voltage of 5 mV maximum (A grade) for precision amplification.

Operates reliably across a wide temperature range from -40°C to 125°C. Provides a maximum output current of 40 mA suitable for various load conditions. Boasts a typical low input bias current of just 1 pA ensuring minimal signal distortion.

Includes built-in latch-up immunity enhancing device reliability. Complies with RoHS standards and AEC-Q100 automotive standard for quality assurance. Has a gain bandwidth product of 1.4 MHz enabling high-frequency applications.
