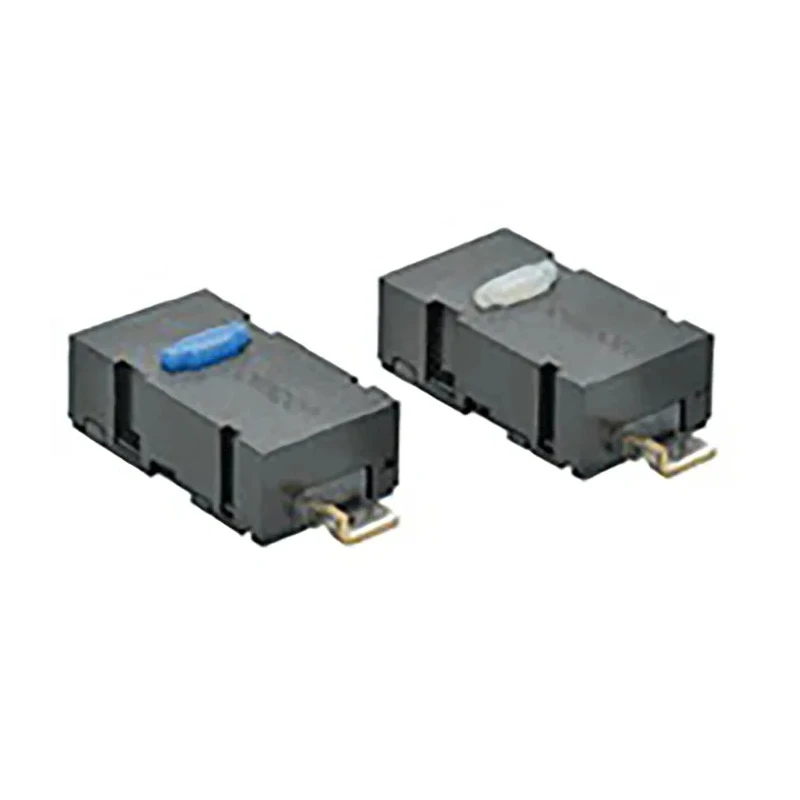

Omron Ultra Subminiature Button Subminiature Micro Switch Surface Mount Terminal 1mA SPST IP40 D2LS-21

Name: Omron Ultra Subminiature Button Subminiature Micro Switch Surface Mount Terminal 1mA SPST IP40 D2LS-21
Brand: Omron
SKU: 420097
Price: 189370.02 INR
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Model	D2LS-21
IP Rating	IP40
Width	3mm
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Actuator Type	Button
Minimum Operating Temperature	-25°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Contact Current	1mA
Operating Force	0.6N
Mechanical Life	5000000Operations
Microswitch Type	Ultra Subminiature
High operating force type also achieving long durability (OF	1.2 N, Durability: 5,000,000 operations)

Key Features

Rated contact current of 1mA suitable for low current switching applications.
Single pole single throw (SPST) contact configuration for simple switching.
Compact dimensions of 8.6 x 4.8 x 3.0 mm enable module downsizing.
Operating force of 0.6N provides light tactile feedback with clear click feeling.
Mechanical life expectancy of 5,000,000 operations ensures long durability.
IP40 protection rating for moderate dust ingress resistance.
Operating temperature range from -25°C to 85°C supports diverse environments.
Surface mount terminal facilitates automatic mounting and reliable solder connections.

Product Description

Omron D2LS-21 is an ultra subminiature button subminiature micro switch designed with surface mount terminals, ideal for applications requiring a compact size and long durability. The switch is rated for a contact current of 1mA with a single pole single throw (SPST) contact configuration, enabling precise and reliable low current switching.

Its compact footprint of 8.6 mm width, 4.8 mm depth, and 3.0 mm height contributes to efficient downsizing of electronic modules. The operating force is 0.6N, offering a light yet distinct tactile click sensation.

The device boasts a mechanical life expectancy of 5 million operations, making it suitable for long-term industrial, manufacturing, and automation uses. With an IP40 rating, the switch is protected against solid objects greater than 1 mm, supporting use in environments with moderate dust exposure.

Thermally, this micro switch can operate within a temperature range of -25°C to 85°C, suitable for a variety of industrial or commercial electronic assemblies. Its surface mount terminal design supports efficient automatic mounting processes, optimized packaging with embossed taping, and reliable PCB connection.

Rated contact current of 1mA suitable for low current switching applications. Single pole single throw (SPST) contact configuration for simple switching. Compact dimensions of 8.6 x 4.8 x 3.0 mm enable module downsizing.

Operating force of 0.6N provides light tactile feedback with clear click feeling. Mechanical life expectancy of 5,000,000 operations ensures long durability. IP40 protection rating for moderate dust ingress resistance. Operating temperature range from -25°C to 85°C supports diverse environments.

Surface mount terminal facilitates automatic mounting and reliable solder connections. RoHS compliant and manufactured in China assuring quality standards.

This Omron micro switch is widely used in industrial automation, electronic device manufacturing, HVAC control systems, and other applications requiring reliable low current switching with compact size.

Explore a wide selection of Micro Switches and electronic components on EnvMart for your industrial and laboratory needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The rated contact current of this micro switch is 1mA, making it suitable for low current switching applications.

It features a single pole single throw (SPST) contact configuration, which allows for simple switching operations.

This model has compact dimensions of 8.6 mm in width, 4.8 mm in depth, and 3.0 mm in height, facilitating efficient module downsizing.

The operating force of the D2LS-21 is 0.6N, providing a light tactile feedback with a clear click feeling.

The mechanical life expectancy of this micro switch is 5,000,000 operations, ensuring long-term durability.

This micro switch has an IP40 protection rating, which provides moderate resistance to dust ingress.

The operating temperature range for the D2LS-21 is from -25°C to 85°C, allowing it to function in diverse environments.

It features a surface mount terminal design, which facilitates automatic mounting and reliable solder connections.

Yes, this micro switch is RoHS compliant, ensuring it meets specific environmental standards.

This model is widely used in industrial automation, electronic device manufacturing, and HVAC control systems, among other applications requiring reliable low current switching.

The actuator type of the D2LS-21 is a button, which allows for easy actuation in various applications.

This micro switch is manufactured in China, ensuring adherence to quality standards.
