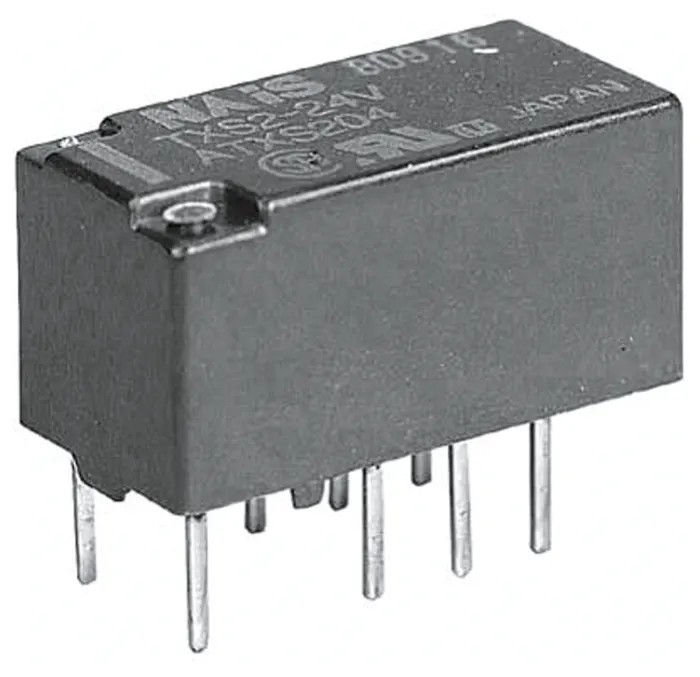

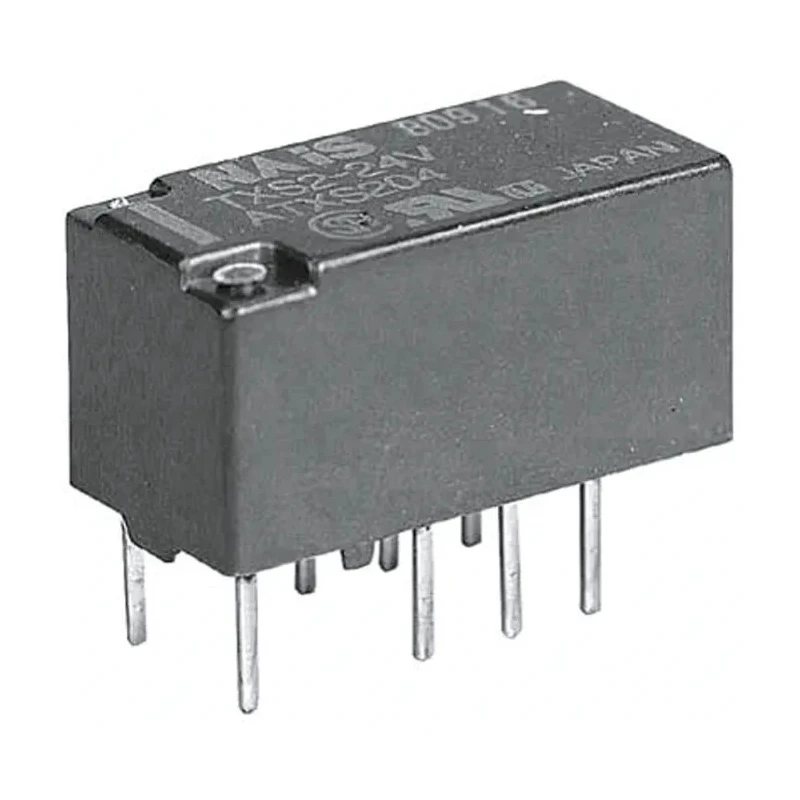

Panasonic PCB Signal Relay 12V DC Coil 1A DPDT TXS2-L2-12V

Panasonic TXS2-L2-12V PCB Signal Relay is a compact and reliable relay designed specifically for PCB mounting in electrical and automation applications. With a coil voltage of 12V DC and a switching current of 1A, this DPDT relay is optimized for signal switching with high contact reliability and low thermal electromotive force effects.

The relay features gold plated contacts to ensure long-term durability and outstanding surge resistance for demanding industrial and commercial environments. Its compact size with precise dimensions of 15mm length, 7.4mm width, and 8.2mm height makes it suitable for space-constrained PCB designs.

It has a coil resistance of 2.057 kΩ and consumes just 150 mW of coil power, which improves energy efficiency. Operating temperature ranges from -40°C to 70°C allowing stable functioning under various environmental conditions. The relay fully complies with RoHS directives ensuring environmentally safe manufacturing practices.

Typical applications include industrial automation, electrical control systems, signal conditioning circuits, and PCB mounted switching tasks where reliable Signal Relay performance is critical.

Designed for PCB mounting with PCB terminals for easy integration. Switching DC voltage capacity up to 110V DC ensuring versatile use. Gold plated contacts provide high reliability and durability. Operates reliably within a broad temperature range from -40°C to 70°C.

Low coil power consumption of 150 mW contributes to energy efficiency. Compact form factor suitable for modern PCB applications. Compliant with RoHS environmental standards. Explore the full range of Panasonic relays and signal conditioning components available on EnvMart for your industrial and automation needs.
