Amphenol Communications Solutions Delta D 3 Way Right Angle Plug-in D-Sub Connector, with Screw Male D3W3P36A6GX08LF

Free Delivery in India | Lowest Global Shipping Charges

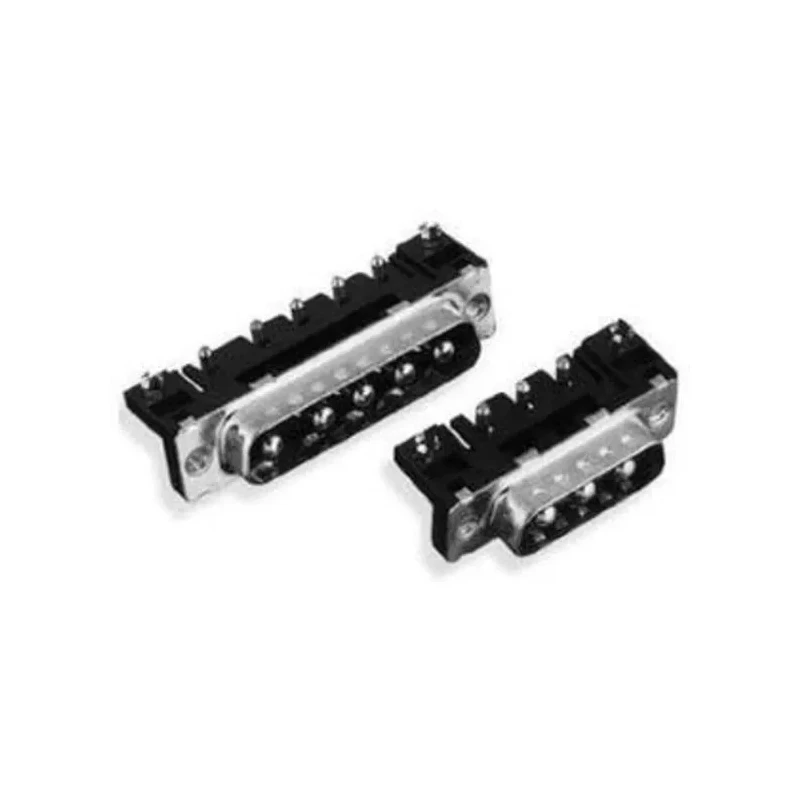

Amphenol Communications Solutions Delta D 3 Way Right Angle Plug-in D-Sub Connector, with Screw Male D3W3P36A6GX08LF

Name: Amphenol Communications Solutions Delta D 3 Way Right Angle Plug-in D-Sub Connector, with Screw Male D3W3P36A6GX08LF
Brand: Amphenol Communications Solutions
SKU: 419299
Price: 20.22 USD
Availability: InStock



Category D-Sub Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Amphenol Communications Solutions
Orientation	Right Angle
Current	30A
Model	D3W3P36A6GX08LF
Mount Type	Plug-in
Housing Material	Thermoplastic
Contact Material	Brass
Series	Delta D
Mounting Hardware	Screw
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold over Nickel
Number of Contacts	3
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	A

Key Features

Supports up to 3 contacts for versatile connectivity.
Rated for current capacity of 30A ensuring stable power handling.
Right angle orientation suitable for space-constrained PCB layouts.
Plug-in mount type with screw mounting hardware for secure attachment.
Constructed with thermoplastic housing and brass contacts plated with gold over nickel for durability.
Operates in a temperature range from -55°C to 125°C for harsh environments.
Termination is by solder ensuring reliable electrical connection.
Complies with industry standards though no specific approvals are listed.

Product Description

Amphenol Communications Solutions model D3W3P36A6GX08LF is a 3 Way Right Angle Plug-in D-Sub Connector equipped with screw mounting, male contacts, and a thermoplastic housing designed to meet demanding electronic interconnect requirements.

This D-Sub connector is engineered to support power and signal connections with a robust current rating of 30A and voltage rating of 300V. Its right angle orientation allows it to be used effectively in compact PCB assemblies and industrial equipment.

Constructed from durable brass contacts plated with gold over nickel and encased in a thermoplastic housing, this connector ensures longevity and reliable performance under temperature extremes from -55°C to 125°C. The connector is terminated by solder, delivering secure electrical connections suitable for telecommunications, industrial instrumentation, military, consumer electronics, and medical devices.

The series Delta D design embodies industry-recognized standards for D-Sub Connectors with a screw mounting mechanism for firm mechanical retention that resists vibration and mechanical shocks. This product is RoHS compliant and manufactured in India.

Supports 3 male contacts for mixed signal and power transmission. Rated for 30A current and 300V voltage capacity for reliable electrical performance. Right angle and plug-in mount type provide versatile mounting options.

High-quality brass contacts with gold over nickel plating for corrosion resistance and conductivity. Thermoplastic housing combines insulation with mechanical strength. Operates reliably across a wide temperature range of -55°C to 125°C.

Solder termination enhances electrical and mechanical connection integrity. Screw mounting hardware secures connector in place against environmental disturbances. Manufactured in India ensuring quality and supply chain integrity.

Ideal for industrial, telecommunications, manufacturing, electronic, and laboratory applications requiring durable and dependable D-Sub connections. Explore more connectors and electronic components within the Amphenol Communications Solutions range at EnvMart.
