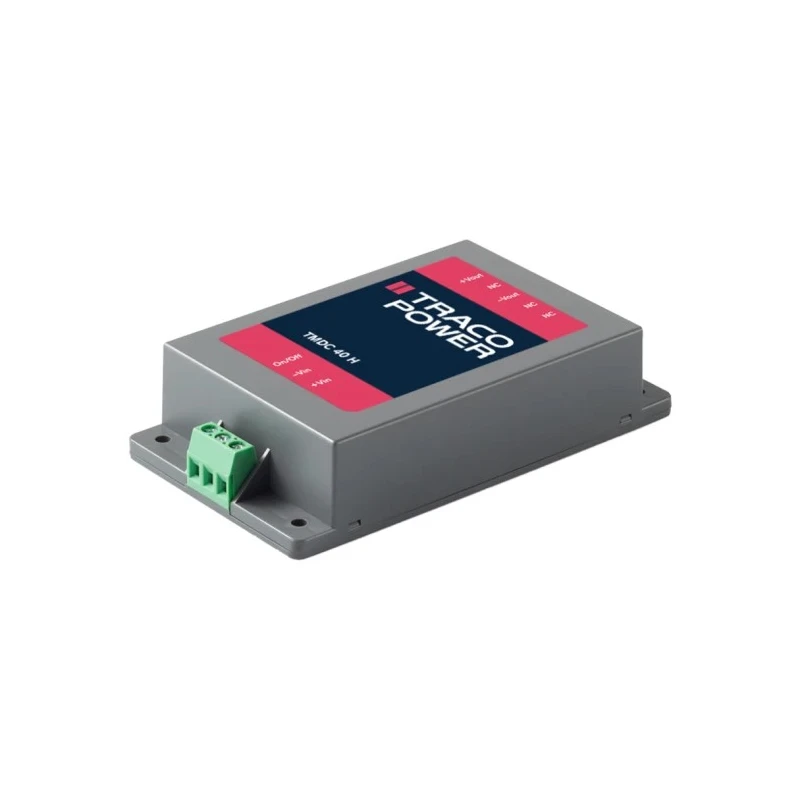

TRACOPOWER TMDC 40H Industrial DC/DC Converter 12V Output, 80-160V Input, 40W Power, Chassis Mount TMDC 40-7222H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMDC 40H DC/DC Converter, 12V dc/, 160V |
| Brand | TRACOPOWER |
| Efficiency | 0.89% |
| Length | 112mm |
| Model | TMDC 40-7222H |
| Depth | 25.6mm |
| Gross Weight | 162g |
| Width | 63.8mm |
| Mount Type | Chassis Mount |
| Series | TMDC 40H |
| Maximum Operating Temperature | 75°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 580000h |
| Number of outputs | 2 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 80V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 3kV |
| Output Current 2 | 1670mA |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V dc |
Key Features
- Designed for robust industrial applications with chassis mount installation.
- Includes reinforced 3000VAC isolation for enhanced safety.
- Operates reliably between -40°C and 75°C ambient temperatures.
- Fully encapsulated plastic package ensures durability and EMI immunity.
- Provides dual outputs of +12V and -12V dc with low ripple and noise of 150mV peak to peak.
- Has a mean time between failures (MTBF) of 580000 hours for high reliability.
- Originates from Taiwan, Province Of China, ensuring high manufacturing standards.
Product Description
TRACOPOWER TMDC 40-7222H DC/DC converter delivers high performance isolated dual outputs at 12V with a power rating of 40W. It accepts a wide input voltage range of 80 to 160V dc, suitable for diverse industrial power supply applications. The robust chassis mount design facilitates secure installation in demanding environments.
This converter incorporates integrated filters to comply with EN 55035 immunity and EN 55032 emission standards, ensuring minimal interference and high signal integrity. The fully encapsulated plastic package enhances durability and safety by providing reinforced 3000VAC isolation voltage.
Operating temperature ranges from -40°C to +75°C allows the converter to function reliably under extreme thermal conditions prevalent in industrial and commercial setups. The device features low output ripple and noise of 150mV peak-to-peak, ensuring stable power delivery to sensitive electronic components.
The MTBF of 580,000 hours underscores the unit's reliability and long operational life. Compact physical dimensions of 112mm by 63.8mm by 25.6mm and a weight of 162g make it ideal for applications with limited installation space. This product is manufactured in Taiwan, Province Of China, and is part of the TMDC 40H series of industrial DC/DC converters.
Robust chassis mount design for versatile industrial installation. Wide input range enabling flexible power source compatibility. Integrated EMI filters for emission and immunity compliance. High reliability with long MTBF ensuring operational continuity.
Compact and lightweight for space-constrained applications. Dual output voltages of +12V and -12V dc to power multiple circuits. Operating temperature suitability for harsh industrial environments.
This converter is ideal for use in industrial power supplies, telecommunications, transportation, monitoring and control systems, and embedded computing. It offers reliable DC voltage conversion with high efficiency and safety isolation for sensitive electronic applications.
Discover more products in the DC/DC Converter category at EnvMart to support your electronic component and power supply requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts a wide input voltage range of 80 to 160V DC, making it suitable for various industrial power supply applications.
The TMDC 40-7222H provides dual outputs of +12V and -12V DC, with a maximum output power of 40W.
It operates reliably between -40°C and +75°C, suitable for harsh industrial environments.
The unit features low output ripple and noise of 150mV peak-to-peak, ensuring stable power delivery.
The mean time between failures (MTBF) for the TMDC 40-7222H is 580,000 hours, indicating high reliability.
This model is designed for chassis mount installation, facilitating secure placement in various applications.
The dimensions are 112mm in length, 63.8mm in width, and 25.6mm in depth, with a weight of 162g.
It includes reinforced 3000VAC isolation for enhanced safety, ensuring protection against electrical interference.
The efficiency rating for this model is 89%, which contributes to its effective power conversion.
It incorporates integrated filters to comply with EN 55035 immunity and EN 55032 emission standards, ensuring minimal interference.
This converter is ideal for industrial power supplies, telecommunications, transportation, monitoring and control systems, and embedded computing.
It is manufactured in Taiwan, Province Of China, ensuring adherence to high manufacturing standards.
