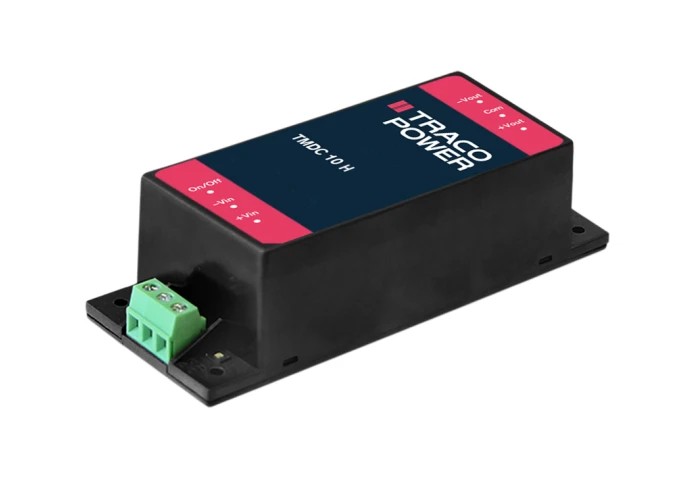

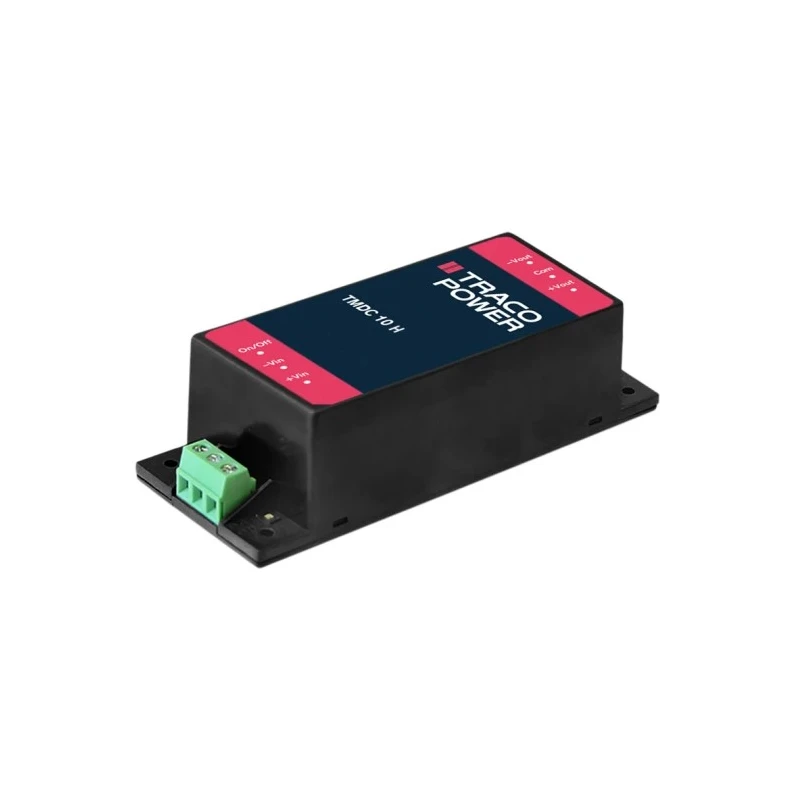

TRACOPOWER TMDC 10-7222H Dual Output DC/DC Converter 12V DC Output, 160V DC Maximum Input, 10W, Chassis Mount TMDC 10-7222H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMDC 10H DC/DC Converter, 12V dc/, 160V |
| Brand | TRACOPOWER |
| Efficiency | 0.85% |
| Length | 34mm |
| Model | TMDC 10-7222H |
| Depth | 79mm |
| Gross Weight | 69g |
| Width | 22mm |
| Mount Type | Chassis Mount |
| Series | TMDC 10H |
| Maximum Operating Temperature | 70°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 3746600h |
| Number of outputs | 2 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 80V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 416mA |
| Isolation Voltage | 3kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V dc |
Key Features
- Dual output voltage with 12V dc and -12V dc outputs for multiple circuit requirements.
- Wide input voltage range from 80V dc minimum to 160V dc maximum.
- Maximum output power rating of 10 watts for reliable performance.
- Chassis mount package type with fully encapsulated plastic for durability and insulation.
- High isolation voltage of 3kV for interference protection and safety.
- Low ripple and noise with 100mV peak-to-peak ensuring clean output signals.
- Wide operating temperature range from -40°C to 70°C for industrial environments.
- High Mean Time Between Failures (MTBF) of 3,746,600 hours for dependable operation.
Product Description
TRACOPOWER TMDC 10-7222H is a reliable dual output DC/DC converter module designed for industrial and electronic applications requiring isolated, regulated DC power. This module delivers a primary output voltage of 12V dc along with a secondary output of -12V dc to support dual polarity power supply needs.
Operating from a wide input range between 80V and 160V DC, it is suited for harsh environments with operating temperatures from -40°C up to 70°C. The fully encapsulated chassis mount package provides enhanced mechanical protection and electrical insulation. The high isolation voltage of 3000 VAC ensures safety and reduces electromagnetic interference risks in sensitive electronic circuits.
This converter also incorporates integrated filters that meet EN 55035 (immunity) and EN 55032 (emission) standards, enhancing device compatibility in industrial and communication systems. Its maximum output power is 10 watts with an efficiency of approximately 85%, optimizing energy use and reducing thermal footprint.
The product’s compact size measuring 34mm in length, 22mm in width, and 79mm in depth enables installation in constrained spaces on printed circuit boards, making it ideal for power supply modules in industrial automation, instrumentation, telecommunications, and control systems. The impressive MTBF rating of over 3.7 million hours assures long-term reliable performance in critical applications.
Designed with overload, undervoltage, and short circuit protections, the TMDC 10-7222H enhances system safety and robustness. This converter is ideal for use in industrial power distribution, measurement equipment, and embedded systems requiring stable dual output voltages under variable input conditions.
Dual regulated 12V dc and -12V dc outputs. Wide input voltage range: 80V to 160V dc. 3kV isolation voltage for interference protection. Chassis mount encapsulated design for durability. Compliance with EN 55035 and EN 55032 filters for immunity and emissions.
Extended operating temperature from -40°C to 70°C suitable for harsh environments. Overload, undervoltage, and short circuit protection built in. Compact dimensions enable flexible PCB integration. High MTBF ensures dependable long term operation.
Efficiency approximately 85% for energy saving.
The TRACOPOWER TMDC series offers reliable DC/DC power conversion solutions that meet rigorous industrial, laboratory, and telecommunications standards. Explore more DC/DC Converters and power supply products on EnvMart for your specific application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 12V dc and -12V dc.
The maximum input voltage for the TMDC 10-7222H is 160V dc.
It has an efficiency rating of approximately 85%.
The dimensions are 34mm in length, 22mm in width, and 79mm in depth.
The operating temperature range is from -40°C to 70°C.
This unit is designed for chassis mount installation.
It features a high isolation voltage of 3kV.
The maximum output power rating is 10 watts.
This model includes overload, undervoltage, and short circuit protections.
The ripple and noise is specified at 100mV peak-to-peak.
It complies with EN 55035 for immunity and EN 55032 for emissions.
The MTBF is rated at 3,746,600 hours.
