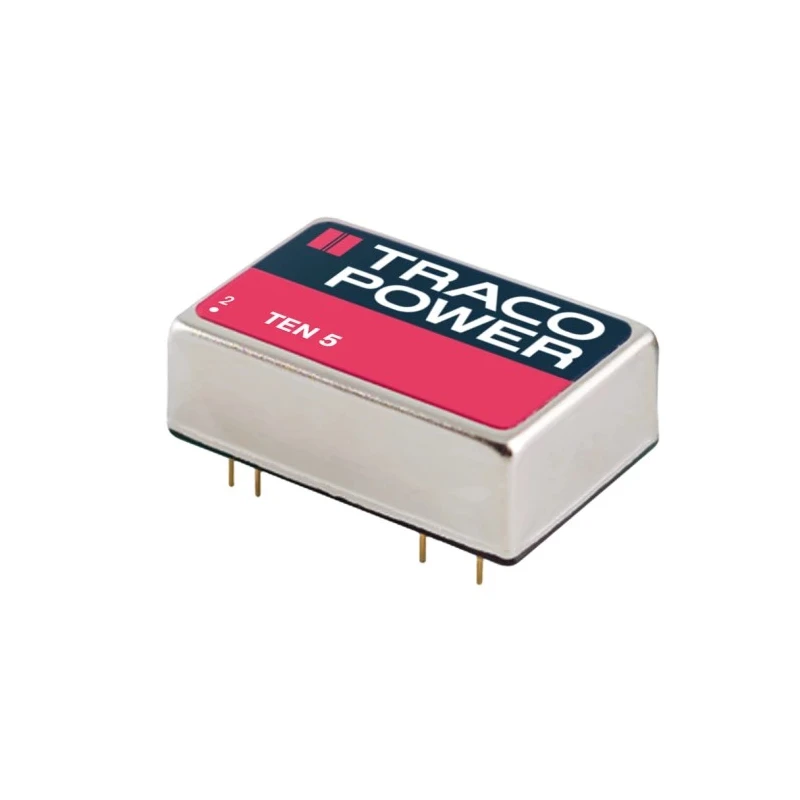

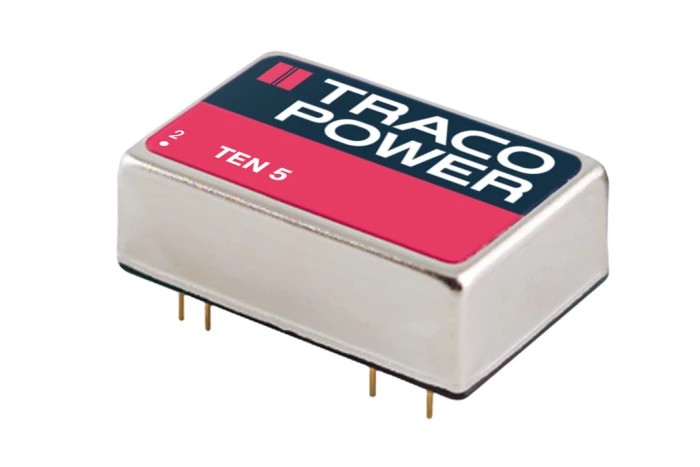

TRACOPOWER DC/DC Converter TEN 5-0522 12V Output, 250mA, 4.5-7V Input, 6W, Through Hole DIP Package TEN 5-0522
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 5 DC/DC Converter, 12V/ 250 mA, 7V |
| Brand | TRACOPOWER |
| Efficiency | 0.82% |
| Length | 20.3mm |
| Model | TEN 5-0522 |
| Depth | 10.2mm |
| Gross Weight | 16.9g |
| Width | 31.8mm |
| Mount Type | Through Hole |
| Series | TEN 5 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 5 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 7V |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V |
| Output Current 1 | 250mA |
| Isolation Voltage | 1.5kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V |
Key Features
- Compact through-hole DIP package suitable for PCB mounting.
- Delivers a maximum output power of 6 watts with high efficiency of approximately 82%.
- Operates reliably within a temperature range of -40°C to 85°C.
- Provides five isolated outputs with an isolation voltage of 1.5 kV.
- Low ripple and noise with 75mV peak-to-peak for signal integrity.
- Designed using advanced SMD technology for enhanced reliability and cost efficiency.
- Includes short circuit protection and input filter compliant with EN 55022 class A.
- Robust shielded metal casing with insulated baseplate for durability.
Product Description
TRACOPOWER TEN 5-0522 is a precision-engineered DC/DC converter module designed for applications requiring a reliable 12V output at 250mA current. It supports a wide 2:1 input voltage range from 4.5V minimum to 7V maximum, making it adaptable to varying DC input sources.
The device features a through-hole DIP package with a compact dimension of 20.3mm length, 31.8mm width, and 10.2mm depth, weighing 16.9 grams. Through advanced surface-mount technology, this module guarantees high reliability and cost-effective performance suitable for telecommunications, mobile battery-powered equipment, and industrial system integration.
With an output power rating of 6W and an efficiency of 82%, it ensures optimal energy conversion. The module operates safely over a broad temperature range from -40°C to 85°C, supported by short circuit protection and a well-designed input filter meeting EN 55022 Class A electromagnetic compatibility standards without external components.
The shielded metal case with an insulated baseplate enhances mechanical and thermal robustness, providing isolated outputs (five in total) with a high isolation voltage of 1.5kV. Noise and ripple are carefully controlled at 75mV peak-to-peak, ensuring signal integrity for sensitive electronics.
Compact through-hole DIP package design for easy PCB integration. Wide 4.5V to 7V input voltage range suitable for diverse DC sources. Five isolated outputs with 1.5kV isolation voltage for safety and versatility. Short circuit protection and input filtering compliant with EN 55022 class A.
Robust operating temperature span from -40°C to 85°C for harsh environments. High efficiency of 82% supporting power-sensitive applications. Shielded metal case with insulated baseplate for enhanced durability. Ideal for industrial, telecommunications, and mobile battery-powered equipment.
Long mean time between failures (MTBF) of 1,000,000 hours signifies reliability.
This product is manufactured in Taiwan, Province Of China, and is new in condition. It is an excellent choice for users requiring a highly reliable, efficient DC/DC converter with multiple isolated outputs for demanding industrial and commercial electronic systems.
Explore more TRACOPOWER DC/DC Converters and related components on EnvMart for your power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 6 watts.
It operates within a wide input voltage range of 4.5V to 7V.
This unit provides five isolated outputs.
The efficiency of the TEN 5-0522 is approximately 82%.
The dimensions are 20.3mm in length, 31.8mm in width, and 10.2mm in depth.
The isolation voltage for the outputs is 1.5 kV.
It operates reliably within a temperature range of -40°C to 85°C.
This model uses a through-hole DIP package for PCB mounting.
The ripple and noise is specified at 75mV peak-to-peak.
Yes, it includes short circuit protection and an input filter compliant with EN 55022 class A.
The weight of this unit is 16.9 grams.
This product is manufactured in Taiwan, Province of China.
