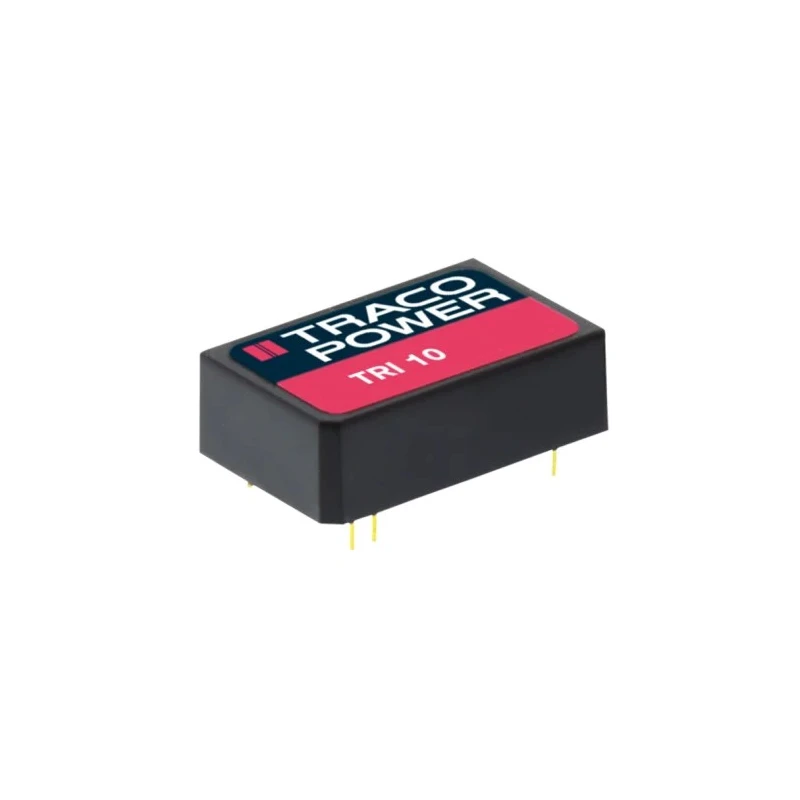

TRACOPOWER Dual Output DC/DC Converter 15V/ -15V dc, 333 mA, 36V to 75V Input, 10W Through Hole DIP Package TRI 10-4823
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 10 DC/DC Converter, 15V dc/ 333 mA |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 31.8mm |
| Model | TRI 10-4823 |
| Depth | 12mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TRI 10 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3817000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 333mA |
| Isolation Voltage | 7kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Features dual output voltages of +15V and -15V DC for balanced power supply requirements.
- Delivers a maximum output power of 10 Watts with high efficiency up to 87%.
- Reinforced input/output isolation voltage rated for 7 kV DC for enhanced safety and electrical isolation.
- Compact through-hole DIP package with 7 pins suitable for PCB mounting.
- Wide operating temperature range from -40°C to +85°C for reliable industrial use.
- Low no-load power consumption between 144 and 288 mW to improve energy efficiency.
- Protection features include safeguards against overload, overvoltage, and short circuit conditions.
- High mean time between failures (MTBF) of approximately 3.8 million hours ensuring product reliability.
Product Description
TRACOPOWER TRI 10-4823 is a high-performance dual output DC/DC Converter designed to provide stable +15V and -15V DC output voltages at a current of 333 mA each. It is engineered for reliable through-hole PCB mounting with a compact DIP package containing 7 pins.
This converter supports a wide input voltage range of 36V to 75V DC with a 2:1 input voltage ratio, making it suitable for varied power sources. With a maximum output power of 10 Watts and efficiency reaching up to 87%, it ensures energy-efficient operation in electronics and industrial power systems.
The device features reinforced input/output isolation with a voltage rating of 7 kV DC and ultra-high isolation peak voltage of 9 kV DC for one second, providing exceptional electrical isolation and safety in demanding industrial and manufacturing environments. Common mode transient immunity (dv/dt) is robust at 15 kV/μs, ensuring noise resistance and signal integrity.
The TRI 10-4823 operates reliably across a temperature span of -40°C to +85°C and incorporates low no-load power consumption levels between 144 and 288 mW, enhancing overall system energy efficiency. Protection mechanisms against overload, overvoltage, and short circuits safeguard the converter and connected components.
This product offers a mean time between failures (MTBF) of 3,817,000 hours, synonymous with high reliability for long-term industrial and laboratory applications. Dual output voltages at 15V and -15V DC with 333 mA output currents each.
Wide input voltage range from 36V to 75V DC with 2:1 ratio. 10W maximum output power with 87% efficiency. 7 kV DC reinforced isolation voltage with 9 kV DC peak isolation. 7-pin DIP through-hole mounting package. Operating temperature range from -40°C to 85°C.
Low no-load power consumption of 144 - 288 mW. Overload, overvoltage, and short-circuit protection included. MTBF of over 3.8 million hours. Ideal for industrial electronics, power management, instrumentation, and automation systems requiring reliable dual output DC power conversion.
Discover more in the EnvMart Electronics & Electricals category, exploring advanced voltage converters from trusted brands like TRACOPOWER for your precise technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of +15V and -15V DC, with each output delivering a current of 333 mA.
It supports a wide input voltage range of 36V to 75V DC, with a 2:1 input voltage ratio.
The maximum output power is 10 Watts, ensuring efficient operation in various applications.
It has a high efficiency rating of up to 87%, contributing to energy-efficient operation.
The reinforced input/output isolation voltage is rated for 7 kV DC, enhancing safety and electrical isolation.
The dimensions are 31.8 mm in length, 20.3 mm in width, and 12 mm in depth.
It operates reliably across a temperature range of -40°C to +85°C, suitable for industrial environments.
The DIP package contains 7 pins, designed for through-hole PCB mounting.
It includes protection mechanisms against overload, overvoltage, and short circuit conditions to safeguard the device and connected components.
The MTBF is approximately 3.8 million hours, indicating high reliability for long-term applications.
This model is ideal for industrial electronics, power management, instrumentation, and automation systems requiring reliable dual output DC power conversion.
The no-load power consumption ranges between 144 and 288 mW, enhancing overall energy efficiency.
