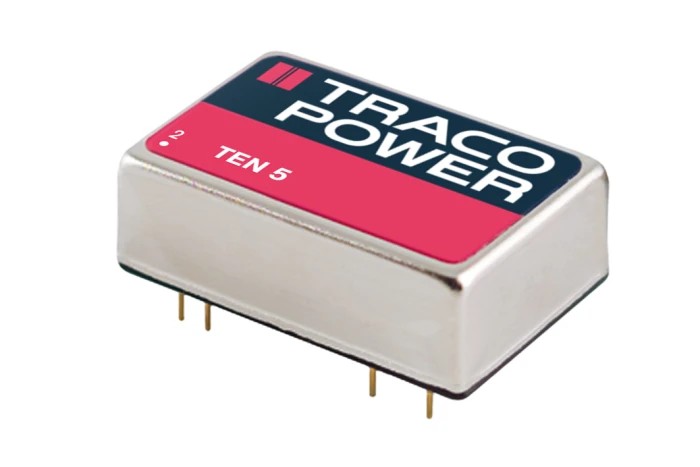

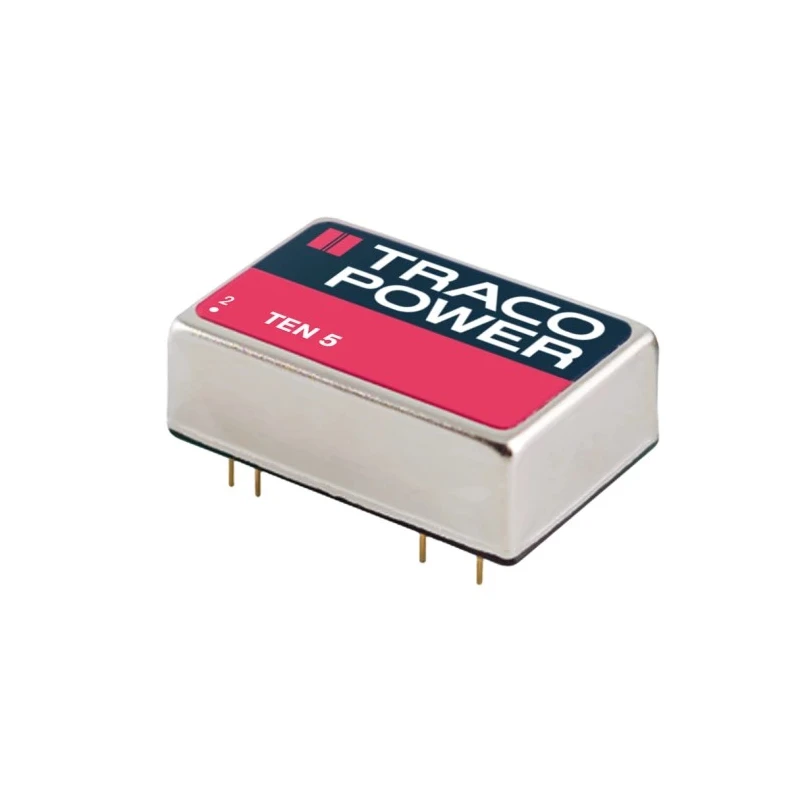

TRACOPOWER DC/DC Converter Through Hole 6 W 3.3V 1.2A Output TEN 5-0510
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 0.75% |
| Length | 20.3mm |
| Model | TEN 5-0510 |
| Depth | 10.2mm |
| Gross Weight | 16.9g |
| Width | 31.8mm |
| Mount Type | Through Hole |
| Series | TEN 5 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 5 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 7V |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 3.3V |
| Output Current 1 | 1.2A |
| Isolation Voltage | 1.5kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- High reliability ensured by state-of-the-art surface-mount device (SMD) technology.
- Operating temperature range from -40°C to 85°C for industrial applications.
- Shielded metal case with insulated baseplate for safety and durability.
- Short circuit protection safeguards the device and connected systems.
- Low ripple and noise of 75 mV peak-to-peak for stable output voltage.
- Isolation voltage rating of 1.5 kV enhances operational safety.
- Compact dimensions of 20.3 mm length, 31.8 mm width, and 10.2 mm depth.
- MTBF of 1,000,000 hours indicates exceptional reliability.
Product Description
TRACOPOWER TEN 5-0510 is a high-performance DC/DC converter module designed for reliable operation in communications systems, mobile battery-powered equipment, and industrial systems. The device features a wide 2:1 input voltage range from 4.5 V to 7 V and delivers a regulated 3.3 V output at 1.2 A with a maximum output power of 6 W.
Constructed using advanced surface-mount device (SMD) technology, it offers high reliability combined with cost efficiency. The converter comes in a through hole DIP package comprising 8 pins, with a compact form factor measuring 20.3 mm in length, 31.8 mm in width, and 10.2 mm in depth, weighing approximately 16.9 grams.
The product operates effectively within a temperature range from -40°C to 85°C, suitable for harsh industrial environments. It includes vital protection features such as short circuit protection and an input filter compliant with EN 55022 Class A standards without external components.
The shielded metal casing with an insulated baseplate enhances operational safety by providing an isolation voltage capability of 1.5 kV and minimizing electromagnetic interference. Ripple and noise are kept low at 75 mV peak-to-peak, ensuring stable power delivery to sensitive electronic components.
With a mean time between failures (MTBF) of 1,000,000 hours, the TEN 5-0510 converter guarantees high dependability for critical applications. This product is manufactured in Taiwan, Province Of China, reflecting quality standards and rigorous production controls.
Wide 2:1 input voltage range suitable for diverse power environments. High reliability ensured by state-of-the-art surface-mount device (SMD) technology. Operating temperature range from -40°C to 85°C for industrial applications.
Shielded metal case with insulated baseplate for safety and durability. Short circuit protection safeguards the device and connected systems. Low ripple and noise of 75 mV peak-to-peak for stable output voltage. Isolation voltage rating of 1.5 kV enhances operational safety.
Compact dimensions of 20.3 mm length, 31.8 mm width, and 10.2 mm depth. MTBF of 1,000,000 hours indicates exceptional reliability.
This DC/DC converter is ideal for use in industrial automation systems, communication equipment, mobile devices, and other electronic applications requiring stable and efficient DC voltage conversion. Explore more products in the DC/DC Converter category on EnvMart to find compatible power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TEN 5-0510 provides a regulated output voltage of 3.3 V and an output current of 1.2 A, with a maximum output power of 6 W.
This converter has a wide input voltage range of 4.5 V to 7 V, allowing it to operate effectively in various power environments.
The dimensions of this model are 20.3 mm in length, 31.8 mm in width, and 10.2 mm in depth.
It operates effectively within a temperature range from -40°C to 85°C, making it suitable for harsh industrial applications.
The TEN 5-0510 utilizes a through hole mounting type, which is common for PCB applications.
This model includes short circuit protection and has an isolation voltage rating of 1.5 kV, enhancing operational safety.
The ripple and noise are kept low at 75 mV peak-to-peak, ensuring stable output voltage.
This converter has a total of 8 pins in its DIP package configuration.
The MTBF for the TEN 5-0510 is 1,000,000 hours, indicating exceptional reliability for critical applications.
The efficiency of this model is rated at 75%.
This DC/DC converter is suitable for industrial automation systems, communication equipment, and mobile devices requiring stable DC voltage conversion.
This product is manufactured in Taiwan, reflecting quality standards and rigorous production controls.
