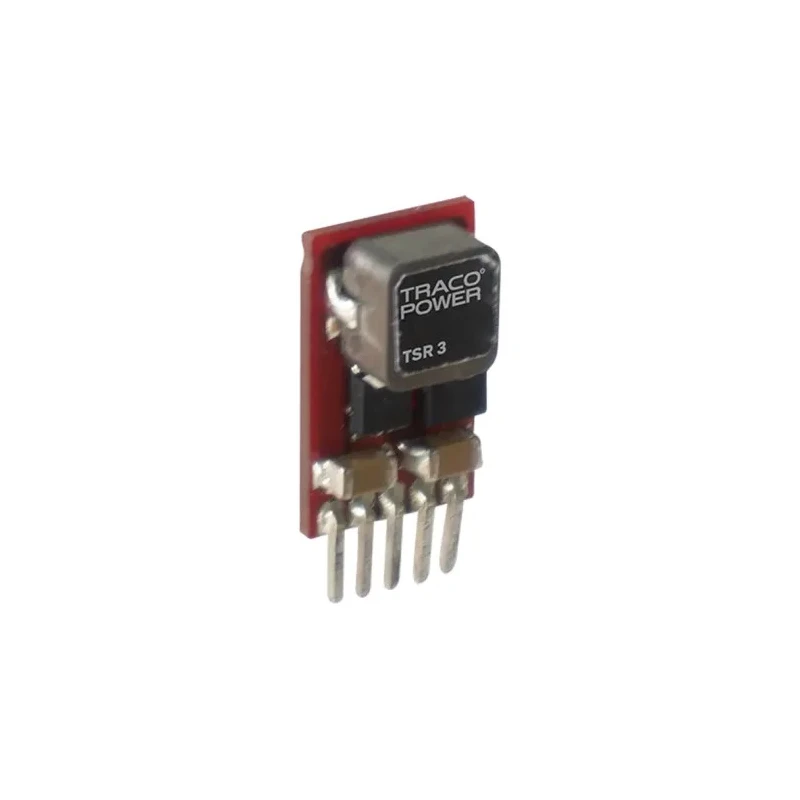

TRACOPOWER High Efficiency Non-Isolated DC/DC Converter 12V dc Input 0.6V dc Output 3A Current Through Hole SIP TSR 3-1250A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 0.93% |
| Length | 6mm |
| Model | TSR 3-1250A |
| Depth | 15.5mm |
| Gross Weight | 1.7g |
| Width | 10.4mm |
| Mount Type | Through Hole |
| Series | TSR 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4500000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 12V dc |
| Standards/Approvals | REACH, RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 0.6V dc |
| Output Current 1 | 3A |
| Output Voltage Adjustment Range | 0.6/6 V |
Key Features
- High efficiency non-isolated step-down switching regulator design.
- Wide input voltage range from 4.5V to 12V dc.
- Single output with adjustable voltage from 0.6 to 6 V.
- Compact SIP package with through-hole mounting.
- Low ripple and noise at 50mV peak-to-peak.
- Operation temperature range from -40°C to 85°C.
- Mean Time Between Failure of 4,500,000 hours for high reliability.
- Compliant with REACH and RoHS environmental standards.
Product Description
TRACOPOWER TSR 3-1250A is a high-efficiency non-isolated DC/DC converter designed for industrial and electronic applications requiring reliable step-down voltage regulation. It accepts a wide input voltage range from 4.5V to 12V dc and provides a precise low-voltage output of 0.6V dc at a current capacity of 3A. Encapsulated in a compact SIP package with through-hole mount type, this device simplifies PCB layout and assembly.
This converter series features a switching regulator design that achieves up to 95% efficiency, significantly reducing heat dissipation and enhancing system performance. It offers an adjustable output voltage range between 0.6 and 6 V, making it versatile for positive and negative output circuits. The device exhibits low ripple and noise levels (50mV peak-to-peak), ensuring stable electrical output essential for sensitive electronic components.
The TSR 3-1250A supports a broad temperature range from -40°C to +85°C operation, suitable for demanding environments in industrial automation, telecommunications, power management, and embedded systems. Its impressive MTBF of 4.5 million hours underscores its durability and reliability for continuous operation.
The product complies with industry environmental regulations including REACH and RoHS, emphasizing sustainable manufacturing practices. Manufactured in Taiwan, it meets strict quality control standards.
High efficiency non-isolated step-down switching regulator design. Wide input voltage range: 4.5V to 12V dc. Single output with adjustable voltage from 0.6 to 6 V. Compact SIP package with through-hole mounting. Low ripple and noise at 50mV peak-to-peak.
Operation temperature range from -40°C to 85°C. MTBF of 4,500,000 hours for robust reliability. Compliant with REACH and RoHS standards. Suitable for industrial, electronic components, power supplies, and embedded system use.
Explore the range of TRACOPOWER DC/DC Converters at EnvMart for reliable power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 4.5V to 12V dc.
It provides an adjustable output voltage range from 0.6V to 6V dc.
The maximum output current is 3A.
The efficiency of the TSR 3-1250A is up to 95%.
The dimensions of the SIP package are 6mm in length, 10.4mm in width, and 15.5mm in depth.
It operates within a temperature range from -40°C to +85°C.
The ripple and noise level is 50mV peak-to-peak.
The MTBF for this model is 4,500,000 hours.
Yes, it is compliant with REACH and RoHS environmental standards.
This unit features a through-hole mounting type.
The country of origin is Taiwan.
This model has a single output.
