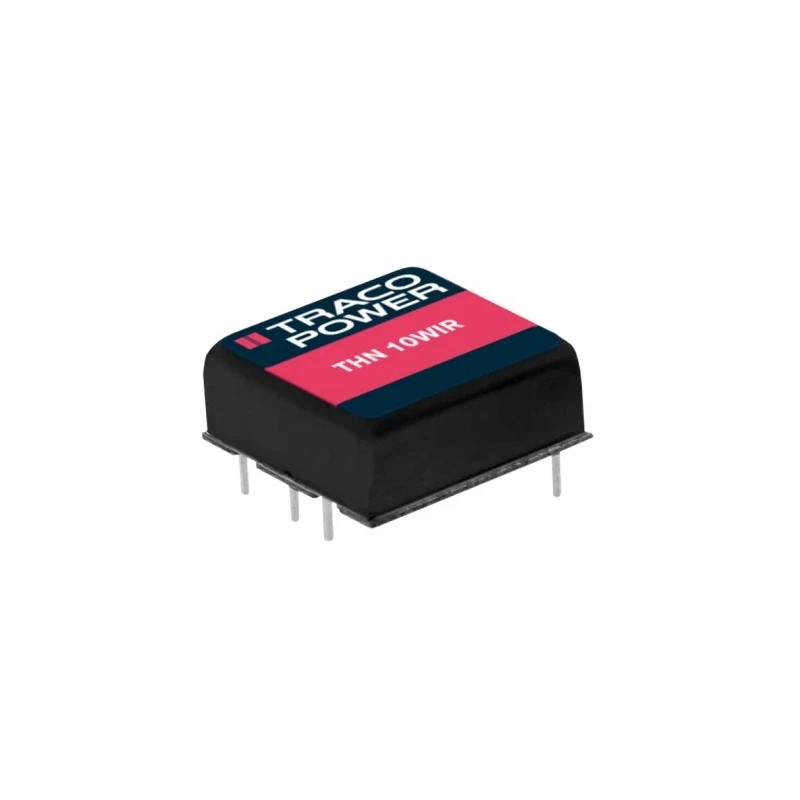

TRACOPOWER 12V DC/DC Converter, 416 mA, 75V DC Input, 18V Input, 10 W, Through Hole Mount, Max 80°C THN 10-4822WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THN 10WIR DC/DC Converter, 12V dc/ 416 |
| Brand | TRACOPOWER |
| Efficiency | 0.89% |
| Length | 25.4mm |
| Model | THN 10-4822WIR |
| Depth | 9.9mm |
| Gross Weight | 16.5g |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THN 10WIR |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2334000h |
| Number of outputs | 2 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 416mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
Key Features
- Operates efficiently at up to 90% efficiency to optimize power usage.
- Designed for high reliability in harsh industrial environments.
- Built-in protection against overload, overvoltage, and short circuit conditions.
- Includes remote On/Off and Trim functions for enhanced control.
- High isolation voltage of 3 kV DC ensures electrical safety.
- Compact DIP package with dimensions 25.4mm x 25.4mm x 9.9mm.
- Suitable for operating temperatures from -40°C up to 80°C without derating.
- Features low ripple and noise of 75mV peak-to-peak for stable output.
Product Description
TRACOPOWER THN 10-4822WIR is a high-performance DC/DC converter delivering ±12V output voltage at 416mA output current, designed for demanding electronic applications requiring reliable power conversion. Operating with a wide input voltage range from 18V to 75V DC, this converter features a through-hole DIP package measuring 25.4mm by 25.4mm with a depth of 9.9mm, ideal for circuit board integration.
This series boasts an efficiency of up to 90%, significantly reducing energy losses and heat generation. It is engineered to meet strict industrial standards, providing 3000 VDC isolation voltage and advanced protection against overload, overvoltage, and short circuit, ensuring operational safety and stability in industrial, laboratory, and commercial environments.
The converter supports remote On/Off and Trim functions to allow precise voltage adjustments and control flexibility. Its low ripple and noise specification of 75 mV peak-to-peak offers clean and stable output essential for sensitive electronics.
Capable of operating across a broad temperature range from -40°C to +80°C without derating, the THN 10-4822WIR is well-suited for harsh environments with electromagnetic interference, vibration, and thermal shocks. The robust metal enclosure provides six-side shielding to minimize external disturbances.
High efficiency up to 90% for energy-saving performance. Wide input voltage range from 18V to 75V DC for versatile use. Overload, overvoltage, and short circuit protection for device safety. Remote On/Off and Trim functions for precise voltage control.
3kV DC isolation voltage for enhanced electrical isolation. Compact DIP package with six-sided metal shielding. Operating temperature range from -40°C to 80°C without derating. Low ripple and noise of 75 mV peak-to-peak for reliable output.
MTBF of 2,334,000 hours indicating high reliability.
The THN 10-4822WIR DC/DC converter finds applications across industrial automation, power supply systems, instrumentation, telecommunications, and other environments requiring robust and reliable DC voltage conversion. It is especially suitable for electrical engineering projects in harsh and variable environmental conditions.
Discover more DC/DC Converters for any application at EnvMart, your go-to source for high-quality industrial electronic components and power supplies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 10W.
It supports a wide input voltage range from 18V to 75V DC.
The converter has dimensions of 25.4mm x 25.4mm x 9.9mm.
This model operates with an efficiency of up to 90%.
It features a high isolation voltage of 3 kV DC.
It utilizes a through-hole mounting type.
The operating temperature range is from -40°C to +80°C without derating.
Yes, it includes built-in protection against overload, overvoltage, and short circuit conditions.
It has a low ripple and noise specification of 75 mV peak-to-peak.
This model provides two outputs: +12V and -12V.
The MTBF is rated at 2,334,000 hours, indicating high reliability.
It includes remote On/Off and Trim functions for enhanced control and voltage adjustment.
