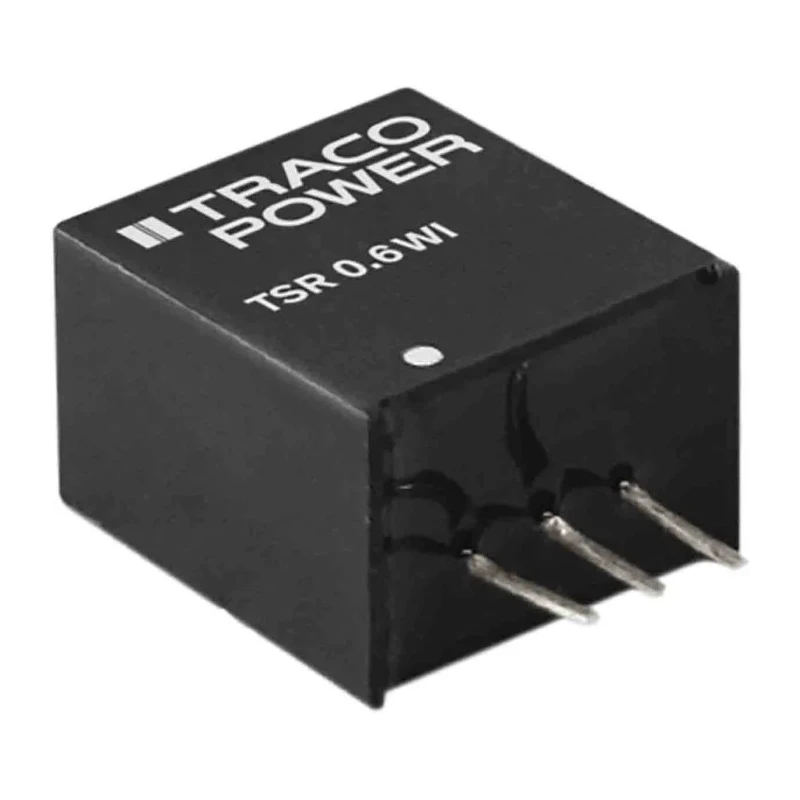

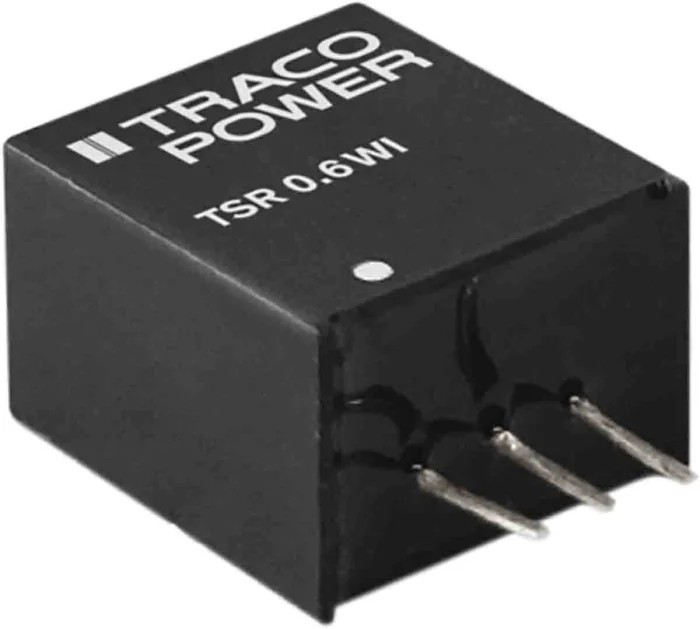

TRACOPOWER DC/DC Converter 9V Output, 14-72V Input Voltage, 600mA Output Current, SIP Package, Through Hole TSR 0.6-4890WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 0.92% |
| Length | 12mm |
| Model | TSR 0.6-4890WI |
| Depth | 13.4mm |
| Gross Weight | 3g |
| Width | 8.6mm |
| Mount Type | Through Hole |
| Series | TSR 0.6-4890WI |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 18160000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 72V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 14V dc |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 600mA |
| Output Voltage 2 | 72V dc |
Key Features
- Operates over a wide input voltage range from 14 to 72 volts DC for versatile applications.
- Provides a nominal output voltage of 9 volts DC with a maximum output current of 600 milliamps.
- High efficiency rating of 92% reduces energy loss and heat generation.
- Designed with a Through Hole mounting style for easy PCB integration.
- Capable of operating within a temperature range from -40 to +85 degrees Celsius for reliable performance.
- The SIP package offers compact dimensions suitable for space-constrained electronic systems.
- Includes protection features like short circuit protection, enhancing operational safety.
- Low ripple and noise output of 50mV peak-to-peak ensures stable voltage supply.
Product Description
TRACOPOWER TSR 0.6-4890WI DC/DC Converter is a high-efficiency power conversion device designed for reliable operation in demanding electronic applications. It accepts a wide input voltage range from 14 to 72 volts DC and provides a regulated 9-volt DC output capable of supplying up to 600 milliamps. Packaged in a compact SIP Through Hole module, it ensures easy mounting and integration into printed circuit boards.
This converter features an ultra-wide input range allowing use in varied power environments, including battery-powered and automation systems. Its high efficiency of up to 92% minimizes heat dissipation and energy waste, improving system longevity and reducing cooling requirements.
With a robust operating temperature range from -40°C to 85°C, the TSR 0.6-4890WI converter can withstand harsh industrial and environmental conditions. Its low ripple and noise output (50mV peak-to-peak) provides a clean power source essential for sensitive electronics.
Additional features include integrated short circuit protection to safeguard the device and connected circuits. The SIP Through Hole design simplifies installation with secure mechanical support, making it suitable for applications requiring reliable and compact power management solutions.
Typical applications include powering sensors within distributed power architectures, driving low-power devices needing a stable 9V supply, and use in automation and battery-operated systems requiring efficient voltage regulation.
Operates over a wide input voltage range from 14 to 72 volts DC for versatile applications. Provides a nominal output voltage of 9 volts DC with a maximum output current of 600 milliamps. High efficiency rating of 92% reduces energy loss and heat generation.
Designed with a Through Hole mounting style for easy PCB integration. Capable of operating within a temperature range from -40 to +85 degrees Celsius for reliable performance. The SIP package offers compact dimensions suitable for space-constrained electronic systems.
Includes protection features like short circuit protection, enhancing operational safety. Low ripple and noise output of 50mV peak-to-peak ensures stable voltage supply. Ideal for powering sensors and low-power devices in distributed power systems and battery-operated equipment.
Explore more high-quality DC/DC Converter solutions and related power supply components through EnvMart for your industrial, laboratory, and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TSR 0.6-4890WI operates with an input voltage range from 14 to 72 volts DC.
It provides a nominal output voltage of 9 volts DC with a maximum output current of 600 milliamps.
The efficiency rating of this model is 92%, which helps reduce energy loss and heat generation.
The SIP package has dimensions of 12mm in length, 8.6mm in width, and 13.4mm in depth.
It can operate within a temperature range from -40°C to +85°C, making it suitable for harsh environments.
Yes, it includes short circuit protection to enhance operational safety.
The ripple and noise output is 50mV peak-to-peak, ensuring a stable voltage supply.
This model is designed with a Through Hole mounting style for easy PCB integration.
The country of origin for the TRACOPOWER TSR 0.6-4890WI is Taiwan.
It complies with RoHS standards, ensuring it meets environmental regulations.
The mean time between failures (MTBF) is 18,160,000 hours.
It is typically used for powering sensors in distributed power architectures and driving low-power devices needing a stable 9V supply.
