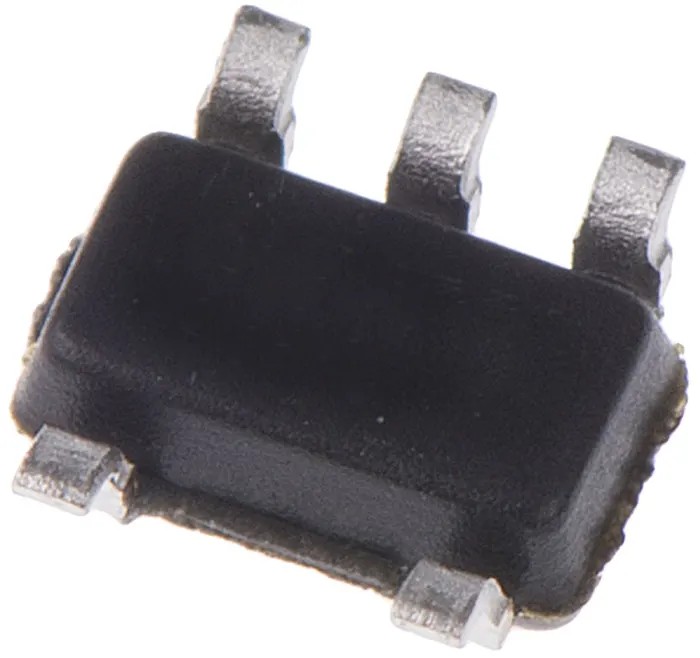

STMicroelectronics Operational Amplifier TSU101ILT, 9 kHz Gain Bandwidth, 5-Pin SOT-23, 1.5V - 5.5V Supply
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSU101ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSU101 |
| Output Current | 4mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.5V |
| GBP - Gain Bandwidth Product | 9kHz |
| Input Bias Current | 30 pA |
| Vos - Input Offset Voltage | 3.4 mV |
| Slew Rate | 3V/ms |
| Gain bandwidth product | 8 kHz typical |
Key Features
- Single-channel operational amplifier optimized for surface mount applications.
- Operating voltage ranges from 1.5 V to 5.5 V.
- Low input bias current of 30 pA enhances precision.
- Wide temperature operation from -40°C to 85°C.
- Small form factor with dimensions 3 mm length by 1.75 mm width and 1.3 mm height.
- Low input offset voltage at 3.4 mV for stable signal amplification.
- Slew rate of 3 V/ms ensures responsive signal changes.
- Output current capability up to 4 mA.
Product Description
STMicroelectronics TSU101ILT is a surface-mount operational amplifier in a compact 5-pin SOT-23 package designed for a broad range of low voltage electronic applications. It features a gain bandwidth product of 9 kHz, suitable for precision amplification where moderate frequency response is required.
Operating on supply voltages from 1.5 V to 5.5 V, this single-channel amplifier delivers low input bias current of 30 pA, minimizing power consumption and enhancing accuracy in sensitive analog circuits. The input offset voltage is typically 3.4 mV, facilitating stable and accurate signal processing.
The device supports an ambient temperature range from -40°C to 85°C, making it robust for industrial, commercial, and automotive applications that do not require automotive standard compliance. With a maximum output current of 4 mA and a slew rate of 3 V/ms, it ensures rapid and reliable signal transitions.
Physically, the TSU101ILT is compact, measuring 3 mm in length, 1.75 mm in width, and 1.3 mm in height. This small footprint enables dense PCB layouts in electronic devices. The amplifier complies with RoHS directives, ensuring it meets current environmental regulations.
Single-channel operational amplifier optimized for surface mount applications. Operating voltage ranges from 1.5 V to 5.5 V. Low input bias current of 30 pA enhances precision. Wide temperature operation from -40°C to 85°C.
Small form factor with dimensions 3 mm length by 1.75 mm width and 1.3 mm height. Low input offset voltage at 3.4 mV for stable signal amplification. Slew rate of 3 V/ms ensures responsive signal changes. Output current capability up to 4 mA.
Compliant with RoHS standards for environmental safety.
This operational amplifier is suitable for industrial, laboratory, consumer electronics, and embedded system applications where reliable amplification of analog signals is required with low power consumption.
Explore more Operational Amplifiers and semiconductor components at EnvMart for diverse electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TSU101ILT is 9 kHz, making it suitable for applications requiring moderate frequency response.
This operational amplifier operates within a supply voltage range of 1.5 V to 5.5 V.
The input bias current of the TSU101ILT is 30 pA, which helps enhance precision in sensitive analog circuits.
The dimensions of the TSU101ILT are 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
The maximum output current capability of this model is 4 mA.
The input offset voltage for the TSU101ILT is typically 3.4 mV, facilitating stable signal amplification.
The operating temperature range for this operational amplifier is from -40°C to 85°C.
The slew rate of the TSU101ILT is 3 V/ms, ensuring responsive signal changes.
The TSU101ILT comes in a 5-pin SOT-23 package, suitable for surface mount applications.
Yes, the TSU101ILT is compliant with RoHS standards, ensuring it meets current environmental regulations.
The TSU101ILT is a single-channel operational amplifier.
The TSU101ILT is suitable for industrial, laboratory, consumer electronics, and embedded system applications requiring reliable amplification of analog signals.
